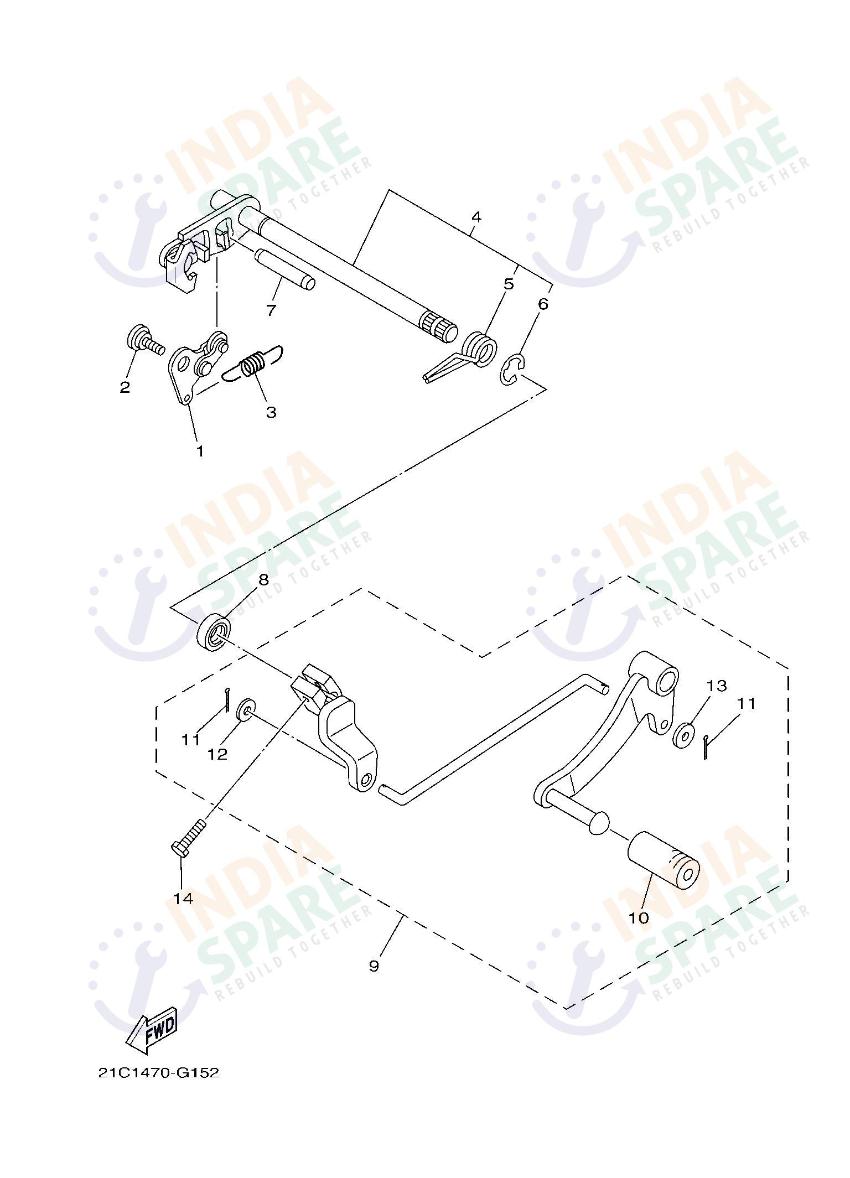

SHIFT SHAFT
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CE81400000 | STOPPER LEVER ASSY | ₹ 35 | 1 | ||
| 2 | 901090625900 | BOLT | ₹ 88 | 1 | ||
| 3 | 21CE83370000 | SPRING | ₹ 4 | 1 | ||
| 4 | 21CE81010100 | SHIFT SHAFT ASSY | ₹ 212 | 1 | ||
| 5 | 905083280500 | SPRING TORSION | ₹ 10 | 1 | ||
| 6 | 990011060000 | CIRCLIP | ₹ 2 | 1 | ||
| 7 | 936084323800 | PIN DOWEL | ₹ 16 | 1 | ||
| 8 | 931021287500 | OIL SEAL | ₹ 10 | 1 | ||
| 9 | 2GSE81101100 | SHIFT PEDAL ASSY | ₹ 304 | 1 | ||
| 10 | 20PE81130100 | COVER, SHIFT PEDAL | ₹ 18 | 1 | ||
| 11 | 902521880000 | PIN SPLIT | ₹ 1 | 2 | ||
| 12 | 929070620000 | WASHER | ₹ 5 | 1 | ||
| 13 | 902010687100 | WASHER PLATE | ₹ 5 | 1 | ||
| 14 | 970120602000 | BOLT | ₹ 10 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Changing gears on the Yamaha FZ RAVE is a smooth experience thanks to the precision of the Shift Shaft assembly. This mechanical linkage features the Shift Shaft Assy which transfers pedal movement into the internal gearbox. The indexing of each gear is managed by the Stopper Lever Assy together with a high tension Spring. For safety, the assembly includes a specific Spring Torsion plus Circlip to maintain the correct tension. The Shift Pedal Assy provides the ergonomic interface for the rider foot while the Cover Shift Pedal ensures a non slip surface. Protection from oil leaks is provided by the high quality Oil Seal situated at the crankcase exit. Every Pin Split plus Washer within this kit ensures that the mechanical connections remain tight. Authentic shift components are essential for a crisp plus predictable gear transition during urban riding. This assembly is built to withstand the constant pressure of daily gear changes. It provides the mechanical link to your riding performance.
