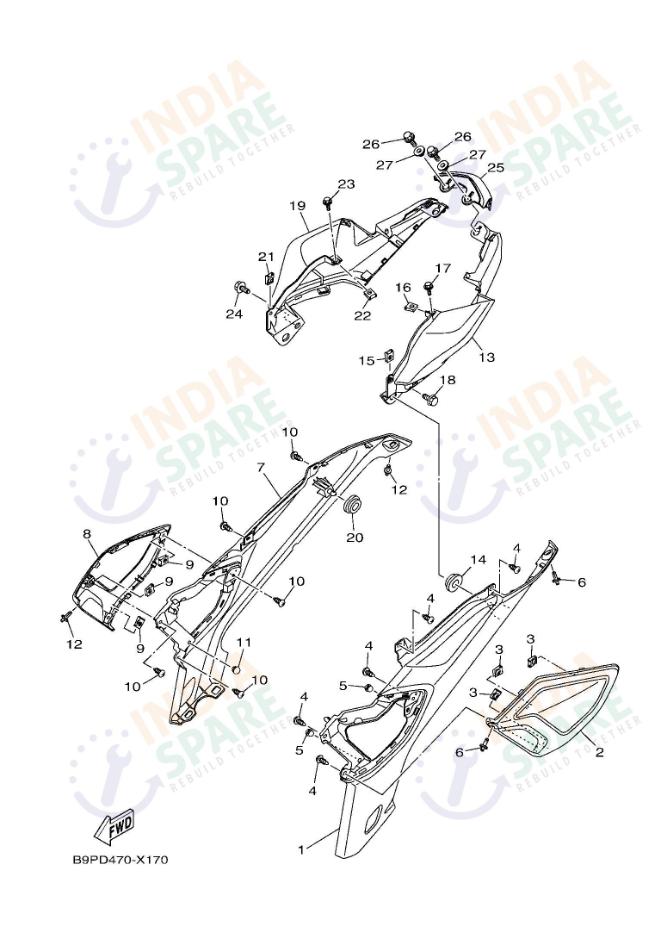

SIDE COVER
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GF17110000 | COVER SIDE 1 | ₹ 113 | 1 | ||
| 2 | B4GF172A00P0 | PANEL 1 SMX | ₹ 165 | 1 | ||
| 3 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 4 | 977025001200 | SCREW TAPPING | ₹ 11 | 5 | ||
| 5 | 21CF17170000 | DAMPER | ₹ 2 | 2 | ||
| 6 | 902690681600 | RIVET | ₹ 12 | 2 | ||
| 7 | B4GF17210000 | COVER SIDE 2 | ₹ 113 | 1 | ||
| 8 | B4GF172F00P0 | PANEL 2 SMX | ₹ 165 | 1 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 10 | 977025001200 | SCREW TAPPING | ₹ 11 | 5 | ||
| 11 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 12 | 902690681600 | RIVET | ₹ 12 | 2 | ||
| 13A | B4GF173101PC | COVER, SIDE 3 | ₹ 275 | 1 | FOR MT2 | |
| 13B | B4GF173101P0 | COVER SIDE 3 SMX | ₹ 256 | 1 | FOR SMX | |
| 14 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 15 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 16 | 90183050A600 | NUT SPRING | ₹ 73 | 1 | ||
| 17 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 1 | ||
| 18 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 1 | ||
| 19A | B4GF174101PC | COVER, SIDE 4 | ₹ 275 | 1 | FOR MT2 | |
| 19B | B4GF174101P0 | COVER SIDE 4 SMX | ₹ 256 | 1 | FOR SMX | |
| 20 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 22 | 90183050A600 | NUT SPRING | ₹ 73 | 1 | ||
| 23 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 1 | ||
| 24 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 1 | ||
| 25 | B4GF171E0000 | COVER SIDE 5 | ₹ 20 | 1 | ||
| 26 | 950220601600 | BOLT FLANGE | ₹ 11 | 2 | ||
| 27 | 90387068N200 | COLLAR | ₹ 11 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The streamlined profile of the Yamaha FZ RAVE is achieved through the sleek Side Cover assembly. These panels include the Cover Side One plus the Panel Two Smx which enclose the internal electrical components. Every cover is secured using specialized Nut Spring plus Screw Tapping hardware for a perfect fit. The use of resilient Damper plus Grommet components prevents unwanted rattling or vibration during the ride. These panels are also adorned with high quality rivets to ensure a factory finish. The Cover Side Three together with the Cover Side Five complete the tail section of the motorcycle. Every Bolt with Washer plus specialized Collar ensures that the panels stay aligned with the frame. Using genuine side covers ensures that the impact resistant materials protect the battery from dust plus moisture. These parts are painted to match the aggressive color schemes of the motorcycle perfectly. They provide the finished look that makes the machine a standout on the road.
