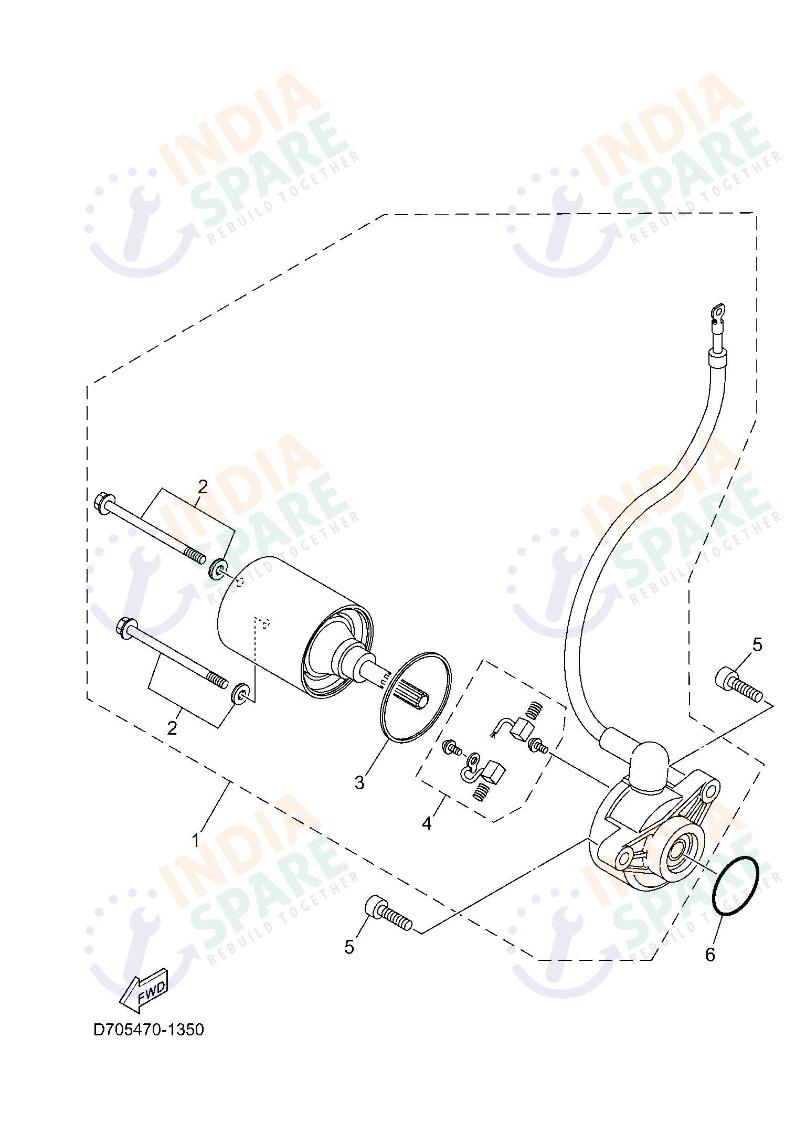

STARTING MOTOR
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2GSH18001300 | STARTING MOTOR ASSY | ₹ 1834 | 1 | ||
| 2 | 2SPH18281100 | BOLT 2 | ₹ 65 | 2 | ||
| 3 | 2SPH18341000 | RING | ₹ 12 | 1 | ||
| 4 | 2SPH18011000 | BRUSH SET | ₹ 97 | 1 | ||
| 5 | 913120602000 | BOLT HEXAGON SOCKET HEAD | ₹ 38 | 2 | ||
| 6 | 932102980700 | O-RING | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Instant ignition for the Yamaha FZ RAVE is enabled by the powerful Starting Motor assembly. This unit is the mechanical heart that cranks the engine with high torque at the press of a button. The Starting Motor Assy features high quality copper windings plus a durable Brush Set for long service life. It is secured to the engine case via a specialized Bolt Hexagon Socket Head which resists thermal expansion. The internal O-ring plus Ring components provide a tight seal to prevent oil leaks from the crankcase. This motor is engineered to perform reliably even under low battery conditions during cold mornings. Genuine starter parts ensure that the internal gears mesh perfectly without causing noise or wear. Maintaining this assembly is crucial for riders who use their motorcycle for frequent short trips in city traffic. It provides the mechanical muscle needed to wake the engine from its slumber effortlessly. Reliability is the core focus here.
