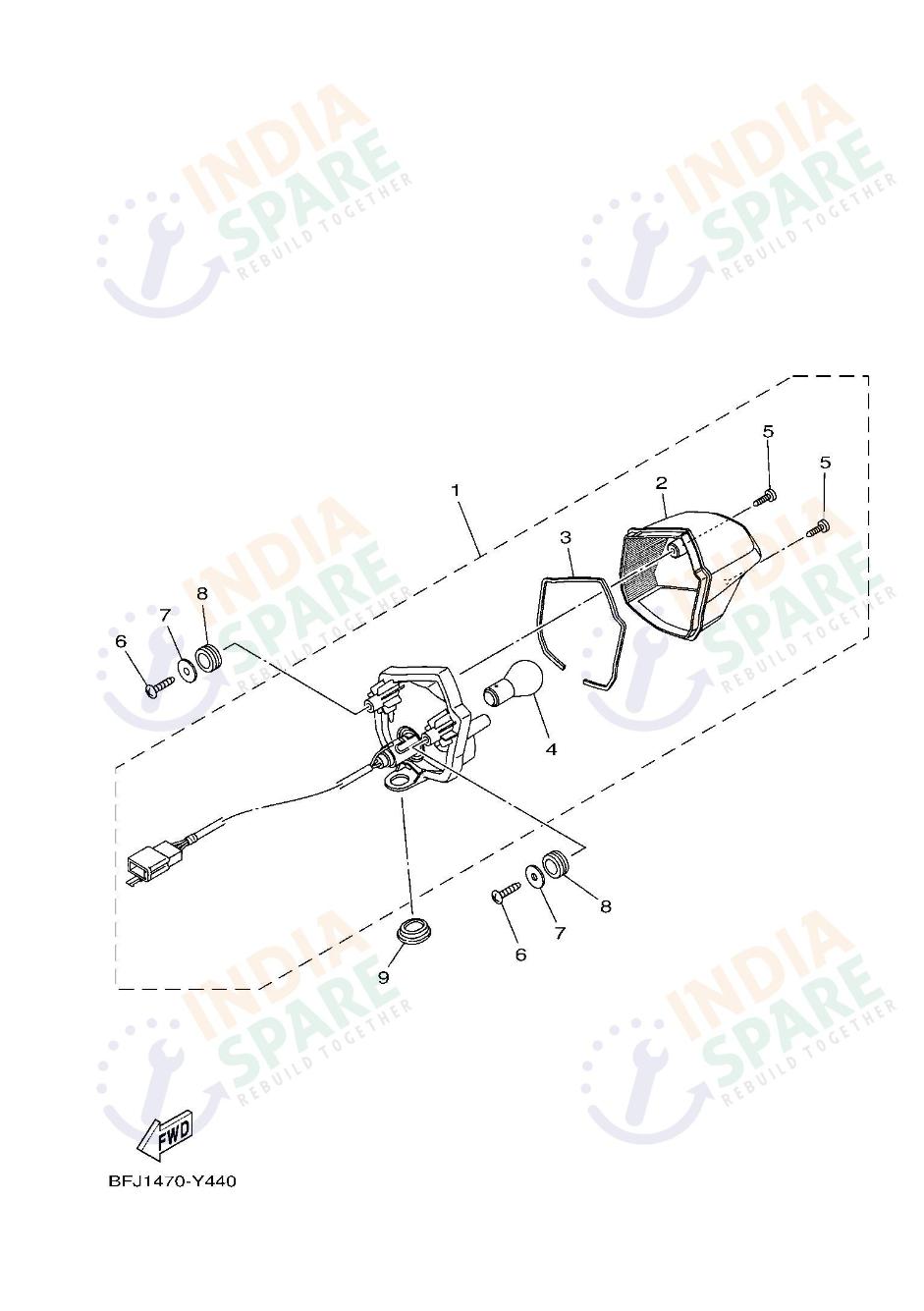

TAILLIGHT
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BFJH47100000 | TAILLIGHT UNIT ASSY | ₹ 330 | 1 | ||
| 2 | B4GH47210000 | LENS TAILLIGHT | ₹ 75 | 1 | ||
| 3 | 2GSH47230000 | GASKET TAIL LENS | ₹ 10 | 1 | ||
| 4 | 1GCH47140000 | BULB (12V-21/5W) | ₹ 40 | 1 | ||
| 5 | 977024051200 | SCREW TAPPING | ₹ 4 | 2 | ||
| 6 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 7 | 902010503600 | WASHER | ₹ 2 | 2 | ||
| 8 | 904801481900 | GROMMET | ₹ 8 | 2 | ||
| 9 | 904800155800 | GROMMET | ₹ 10 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - High visibility is a fundamental safety requirement for the Yamaha FZ RAVE especially during nighttime excursions. The Taillight assembly features a brilliant Taillight Unit Assy designed to cut through dust plus rain with ease. This unit houses the Lens Taillight which is sealed with a specific Gasket Tail Lens to prevent water accumulation. The dual filament Bulb provides both running light functionality plus a bright brake warning to following motorists. Mounting is achieved using specialized Screw Tapping plus resilient Grommets that absorb road shocks to prevent bulb failure. This assembly ensures that the rear profile of the motorcycle remains iconic while providing essential communication to other road users. Every Washer plus Bolt within this kit is corrosion resistant to survive the humid Indian climate. Maintaining this lighting unit ensures you remain visible in all weather conditions. It is a vital component for urban safety plus legal compliance on the highway.
