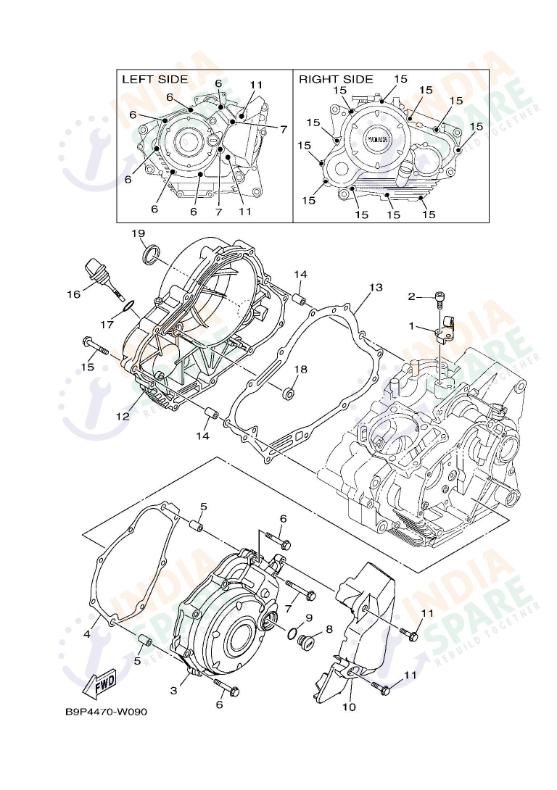

CRANKCASE COVER 1
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CE54410000 | HOLDER CLUTCH CABLE | ₹ 13 | 1 | ||
| 2 | 913120601400 | BOLT | ₹ 5 | 2 | ||
| 3 | B9PE54110000 | COVER CRANKCASE 1 | ₹ 543 | 1 | ||
| 4 | 2GSE54510000 | GASKET CRANKCASE COVER 1 | ₹ 13 | 1 | ||
| 5 | 918302101400 | PIN DOWEL | ₹ 3 | 2 | ||
| 6 | 950220604000 | BOLT FLANGE | ₹ 18 | 6 | ||
| 7 | 950220605000 | BOLT FLANGE | ₹ 17 | 2 | ||
| 8 | 903401411700 | PLUG STRAIGHT SCREW-BLACK | ₹ 11 | 1 | ||
| 9 | 932101489900 | O RING | ₹ 9 | 1 | ||
| 10 | B9PE54180000 | COVER CHAIN CASE | ₹ 138 | 1 | ||
| 11 | 950220601600 | BOLT FLANGE | ₹ 11 | 2 | ||
| 12 | 21CE54210000 | COVER CRANKCASE 2 | ₹ 857 | 1 | ||
| 13A | 2GSE54610000 | GASKET CRANKCASE COVER 2 | ₹ 88 | 1 | ||
| 13B | BSTE54610000 | GASKET, CRANKCASE COVER 2 | ₹ 100 | 1 | ||
| 14 | 918302101400 | PIN DOWEL | ₹ 3 | 2 | ||
| 15 | 950220604000 | BOLT FLANGE | ₹ 18 | 11 | ||
| 16 | 54BE53620000 | PLUG OIL LEVEL | ₹ 16 | 1 | ||
| 17 | 932101980900 | O RING | ₹ 4 | 1 | ||
| 18 | 931011083800 | OIL SEAL IN RH COVER | ₹ 18 | 1 | ||
| 19 | 903383080200 | PLUG | ₹ 89 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protection for the engine's internal mechanisms is provided by the crankcase covers, which also serve as structural points for cables, plugs. This cover assembly includes the crankcase cover plus its corresponding gasket to ensure a leak proof seal against the engine oil. The unit features a dedicated holder for the clutch cable, keeping the controls tidy plus efficient. For maintenance, a convenient plug straight screw is included for oil fill up, sealed with a reliable o-ring to prevent seepage. The chain case cover protects the front sprocket plus reduces buildup of road grime. Each cover is secured with a series of precision bolt flanges that ensure even pressure across the sealing surface. Made from durable cast alloys that dissipate heat efficiently, these covers are essential for performance in the hot Indian climate. Trust in these genuine covers to protect your engine's heart while maintaining the clean, industrial aesthetic.
