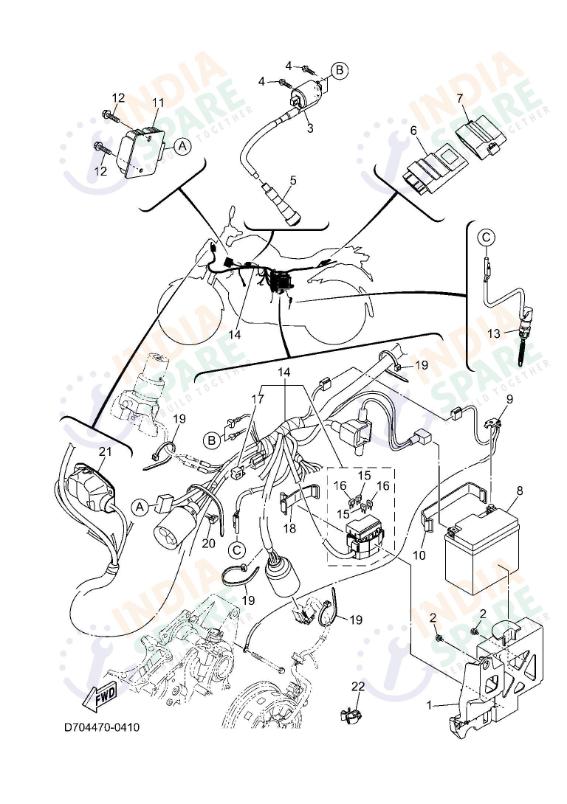

ELECTRICAL 1
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9PF177G0000 | BOX BATTERY | ₹ 80 | 1 | ||
| 2 | 90109068C200 | BOLT | ₹ 14 | 2 | ||
| 3 | B9XH23100000 | IGNITION COIL ASSY | ₹ 285 | 1 | ||
| 4 | 975020552000 | BOLT WITH WASHER | ₹ 3 | 2 | ||
| 5 | B4GH23700000 | PLUG CAP ASSY | ₹ 87 | 1 | ||
| 6 | D70H591A0000 | ENGINE CONTROL UNIT ASSY | ₹ 3991 | 1 | ||
| 7 | B9PH55460100 | BAND | ₹ 0 | 1 | ||
| 8 | B9PH21000000 | BATTERY ASSY (YUASA YTZ4) | ₹ 0 | 1 | ||
| 9 | B4GH21160000 | WIRE, MINUS LEAD | ₹ 143 | 1 | ||
| 10 | 5YYH21311000 | BAND BATTERY | ₹ 11 | 1 | ||
| 11 | BKHH19601000 | RECTIFIER & REGULATOR ASSY | ₹ 1000 | 1 | ||
| 12 | 958020602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 13 | B97H25300000 | STOP SWITCH ASSY | ₹ 90 | 1 | ||
| 14 | D70H25900000 | WIRE HARNESS ASSY | ₹ 5880 | 1 | ||
| 15 | B4GH21510000 | FUSE (7.5A) | ₹ 4 | 2 | ||
| 16 | B4GH21513000 | FUSE | ₹ 20 | 2 | ||
| 17 | 3WP819800000 | DIODE ASSY | ₹ 270 | 1 | ||
| 18 | 4UUF811G0000 | BAND ASSY | ₹ 11 | 1 | ||
| 19 | 904641606100 | CLAMP | ₹ 8 | 4 | ||
| 20 | 904645080000 | CLAMP | ₹ 6 | 1 | ||
| 21 | B4GH25990100 | COVER, CONNECTER | ₹ 40 | 1 | ||
| 22 | 904641401300 | CLAMP | ₹ 11 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Behind the powerful acceleration of your favorite street machine lies a sophisticated network of energy distribution. This fundamental electrical unit houses the brain of the vehicle, managing everything from spark timing to power management. The engine control unit assy serves as the primary intelligence, processing data to optimize fuel efficiency plus power delivery across the rev range. Combined with a robust ignition coil assy, a reliable battery assy, the system provides consistent electrical flow to all critical sectors. Whether you are navigating monsoons in Bengaluru, the summer heat of Delhi, these parts ensure the motor remains resilient, responsive. This assembly is designed to withstand extreme vibrations plus thermal stress, maintaining the structural integrity of the wiring harness. Choosing genuine replacements means preserving the factory grade performance that makes your bike a leader in its class, ensuring every thumb start is successful.
