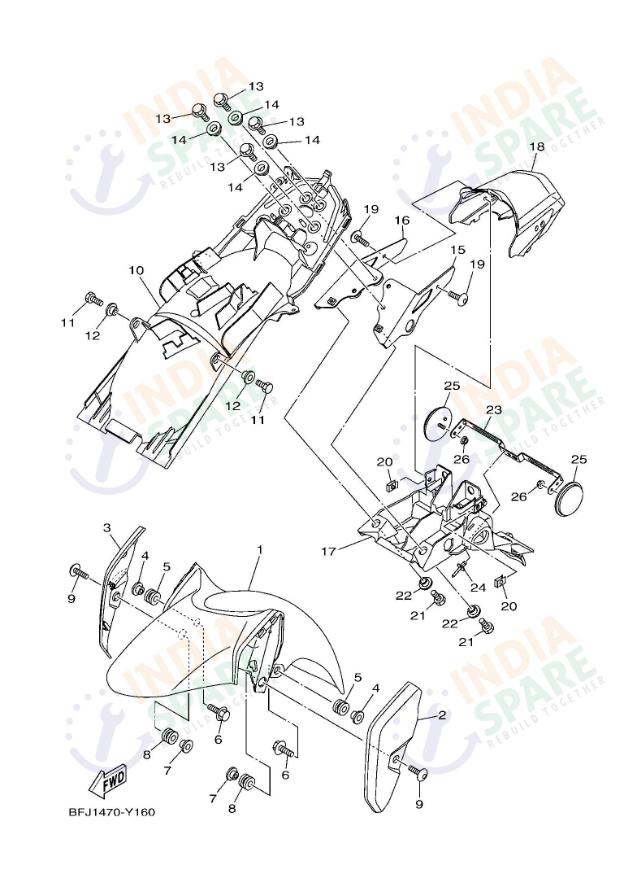

FENDER
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GF15110000 | FENDER FRONT | ₹ 234 | 1 | ||
| 2 | BFJF15510000 | FENDER, OVER | ₹ 553 | 1 | ||
| 3 | BFJF15550000 | FENDER, OVER 2 | ₹ 553 | 1 | ||
| 4 | 90387068C500 | COLLAR | ₹ 8 | 2 | ||
| 5 | 904800880100 | GROMMET | ₹ 10 | 2 | ||
| 6 | 958220602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 7 | 90387068S500 | COLLAR | ₹ 20 | 2 | ||
| 8 | 904801282400 | GROMMET | ₹ 14 | 2 | ||
| 9 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 10 | BFJF16110000 | FENDER, REAR | ₹ 244 | 1 | ||
| 11 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 12 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 13 | 958220602000 | BOLT FLANGE | ₹ 5 | 4 | ||
| 14 | 903870807900 | COLLAR | ₹ 81 | 4 | ||
| 15 | B4GF16130000 | STAY FENDER 1 | ₹ 167 | 1 | ||
| 16 | B4GF16140000 | STAY FENDER 2 | ₹ 167 | 1 | ||
| 17 | B4GF16510000 | COVER REAR FENDER | ₹ 110 | 1 | ||
| 18 | B4GF163A0000 | COVER REAR FENDER 1 | ₹ 24 | 1 | ||
| 19 | 901490682900 | SCREW | ₹ 25 | 2 | ||
| 20 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 21 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 22 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 23 | BK7F16410000 | BRACKET REFLECTOR | ₹ 35 | 1 | ||
| 24 | 902674884500 | RIVET BLIND | ₹ 9 | 1 | ||
| 25 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 26 | 957070550000 | NUT FLANGE | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protection against the elements is essential for both the rider plus mechanical longevity of the motorcycle. This fender assembly includes the front, rear guards that shield the bike from mud, water, road debris. The fender front is designed to be aerodynamic plus stylish, while the fender rear provides extensive coverage area for the rear tire. Made from high quality materials that resist cracking, fading, these components are built for the harsh realities of monsoon rides in India. The assembly is secured with a combination of a sturdy stay fender plus a vibration dampening grommet, ensuring the guards stay in place even on bumpy roads. Also included are the bracket reflector plus reflector front, which are crucial for nighttime safety. By installing these genuine factory parts, you ensure your motorcycle remains clean plus visible, preserving its aesthetic appeal while providing a safer riding experience in all weather conditions.
