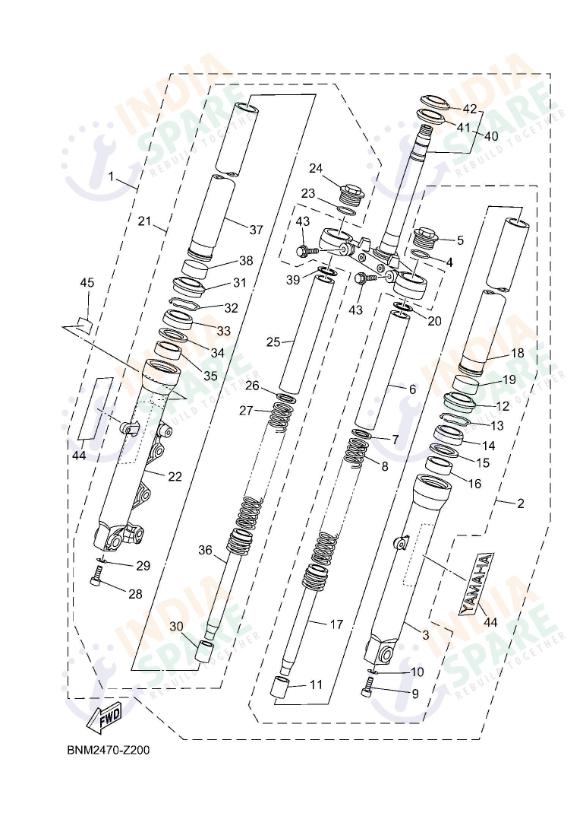

FRONT FORK
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GF31000000 | FRONT FORK ASSY | ₹ 9246 | 1 | ||
| 2 | 2GSF31020000 | FRONT FORK ASSY (L | ₹ 4750 | 1 | ||
| 3 | 21CF31261100 | TUBE OUTER (LEFT) MAT BLACK | ₹ 2686 | 1 | ||
| 4 | 21CF31140000 | GASKET | ₹ 85 | 1 | ||
| 5 | 21CF31110000 | BOLT CAP | ₹ 104 | 1 | ||
| 6 | 21CF31180000 | SPACER | ₹ 63 | 1 | ||
| 7 | 21CF31490000 | WASHER SPRING UPPER | ₹ 11 | 1 | ||
| 8 | 21CF31410000 | SPRING FRONT FORK | ₹ 91 | 1 | ||
| 9 | 21CF31810000 | BOLT HEXAGON SOCKET HEAD | ₹ 22 | 1 | ||
| 10 | 20PF31580000 | GASKET | ₹ 52 | 1 | ||
| 11 | 21CF31730000 | SPINDLE TAPER | ₹ 61 | 1 | ||
| 12 | 2GSF31440000 | SEAL DUST | ₹ 258 | 1 | ||
| 13 | 21CF31560000 | RING SNAP | ₹ 9 | 1 | ||
| 14 | 2GSF31450000 | OIL SEAL | ₹ 356 | 1 | ||
| 15 | 21CF31460000 | WASHER OIL SEAL | ₹ 20 | 1 | ||
| 16 | 4FM231254000 | METAL SLIDE 1 | ₹ 212 | 1 | ||
| 17 | 2GSF31700000 | CYLINDER COMP. FR | ₹ 202 | 1 | ||
| 18 | 21CF31100000 | INNER TUBE COMP.1 | ₹ 1845 | 1 | ||
| 19 | 2GSF31710000 | BUSH INNER TUBE | ₹ 231 | 1 | ||
| 20 | 21CF26740000 | WASHER 2 | ₹ 19 | 1 | ||
| 21 | B4GF31030000 | FRONT FORK ASSY (R.H) | ₹ 4720 | 1 | ||
| 22 | B9EF31360000 | TUBE OUTER (RIGHT) | ₹ 2818 | 1 | ||
| 23 | 21CF31140000 | GASKET | ₹ 85 | 1 | ||
| 24 | 21CF31110000 | BOLT CAP | ₹ 104 | 1 | ||
| 25 | 21CF31180000 | SPACER | ₹ 63 | 1 | ||
| 26 | 21CF31490000 | WASHER SPRING UPPER | ₹ 11 | 1 | ||
| 27 | 21CF31410000 | SPRING FRONT FORK | ₹ 91 | 1 | ||
| 28 | 21CF31810000 | BOLT HEXAGON SOCKET HEAD | ₹ 22 | 1 | ||
| 29 | 20PF31580000 | GASKET | ₹ 52 | 1 | ||
| 30 | 21CF31730000 | SPINDLE TAPER | ₹ 61 | 1 | ||
| 31 | 2GSF31440000 | SEAL DUST | ₹ 258 | 1 | ||
| 32 | 21CF31560000 | RING SNAP | ₹ 9 | 1 | ||
| 33 | 2GSF31450000 | OIL SEAL | ₹ 356 | 1 | ||
| 34 | 21CF31460000 | WASHER OIL SEAL | ₹ 20 | 1 | ||
| 35 | 4FM231254000 | METAL SLIDE 1 | ₹ 212 | 1 | ||
| 36 | 2GSF31700000 | CYLINDER COMP. FR | ₹ 202 | 1 | ||
| 37 | 21CF31100000 | INNER TUBE COMP.1 | ₹ 1845 | 1 | ||
| 38 | 2GSF31710000 | BUSH INNER TUBE | ₹ 231 | 1 | ||
| 39 | 21CF26740000 | WASHER 2 | ₹ 19 | 1 | ||
| 40 | 21CF33400100 | UNDER BRACKET COMP-BLACK | ₹ 1911 | 1 | ||
| 41 | 5YYF34620000 | SEAL DUST STEERING | ₹ 23 | 1 | ||
| 42 | 21CF34110000 | ..RACE, BALL 1 | ₹ 0 | 1 | ||
| 43 | 21CF33460000 | BOLT 1 | ₹ 24 | 2 | ||
| 44 | 2GSF339E0000 | GRAPHIC 1 | ₹ 32 | 2 | ||
| 45 | BC4F45951000 | PROTECTOR | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Smooth out the roughest Indian terrains with a suspension system designed for resilience plus precision. This front fork assembly is the primary shock absorber of your motorcycle, featuring a telescopic design that provides a plush yet controlled ride. The unit includes a robust inner tube comp plus an outer tube finished in elegant matte black. Internal components like the spring front fork plus cylinder comp work in harmony to manage damping, while the oil seal plus dust seal keep the internals protected from road grit, moisture. Every detail, from the spindle taper to the metal slide, is engineered to provide low friction movement for better feedback. Securely mounted to the frame via the under bracket comp, these forks ensure your steering remains stable, responsive. By utilizing genuine fork parts, you preserve the handling characteristics of your bike, ensuring every bump is absorbed plus every corner is carved with absolute confidence.
