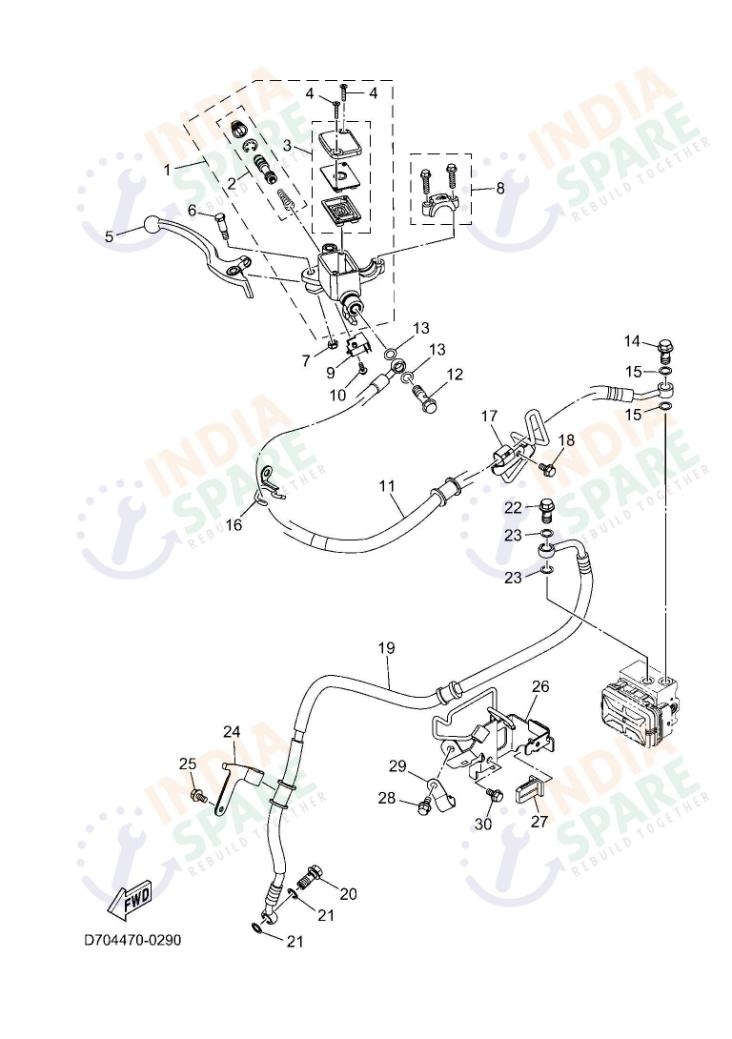

FRONT MASTER CYLINDER
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDF580A0000 | MASTER CYLINDER SU | ₹ 2304 | 1 | ||
| 2 | BPDF58070000 | CYLINDER KIT, MAST | ₹ 525 | 1 | ||
| 3 | BPDWF5850000 | CAP RESERVOIR KIT | ₹ 474 | 1 | ||
| 4 | 54BF589H0000 | SCREW | ₹ 5 | 2 | ||
| 5 | B97H39220000 | LEVER 2 | ₹ 193 | 1 | ||
| 6 | 901090685900 | BOLT | ₹ 14 | 1 | ||
| 7 | 54BF63380000 | NUT ADJUSTING | ₹ 6 | 1 | ||
| 8 | BPDWF5860000 | CLAMP SCREW KIT | ₹ 359 | 1 | ||
| 9 | B97H39800000 | FRONT STOP SWITCH | ₹ 81 | 1 | ||
| 10 | B97F589H0000 | SCREW | ₹ 5 | 1 | ||
| 11 | BFJF58720000 | HOSE, BRAKE 1 | ₹ 750 | 1 | ||
| 12 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 13 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 14 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 15 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 16 | B4GF587A0000 | HOLDER BREAK HOSE | ₹ 18 | 1 | ||
| 17 | BFJF61310000 | GUIDE, CABLE 1 | ₹ 147 | 1 | ||
| 18 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 19 | BFJF58740000 | HOSE, BRAKE | ₹ 1360 | 1 | ||
| 20 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 21 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 22 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 23 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 24 | B4GF58760000 | HOLDER BRAKE HOSE 2 | ₹ 37 | 1 | ||
| 25 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 26 | BFJF58871000 | HOLDER, BRAKE HOSE | ₹ 424 | 1 | ||
| 27 | 45SF17780000 | DAMPER LOCATING 1 | ₹ 8 | 1 | ||
| 28 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 29 | BFJF58750000 | HOLDER, BRAKE HOSE 1 | ₹ 32 | 1 | ||
| 30 | 920120601000 | BOLT BUTTON HEAD | ₹ 14 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The front brake is your primary tool for shedding speed plus maintaining control during critical riding moments. This front master cylinder assembly is engineered to provide tactile feedback, stopping power that a performance motorcycle demands. Inside the master cylinder su, a precision cylinder kit works to displace hydraulic fluid through the brake hose with absolute consistency. The lever is ergonomically shaped for a comfortable grip, while the adjustor nut allows you to fine tune the reach. Safety is enhanced by the front stop switch, which activates the brake light at the slightest touch. Components like the washer plain plus bolt union are manufactured to prevent leaks, ensuring hydraulic pressure is never compromised. In the unpredictable traffic of Indian roads, having a front brake system that responds with precision is vital. By using these genuine factory parts, you ensure your stopping power remains top tier, providing the safety plus performance you expect.
