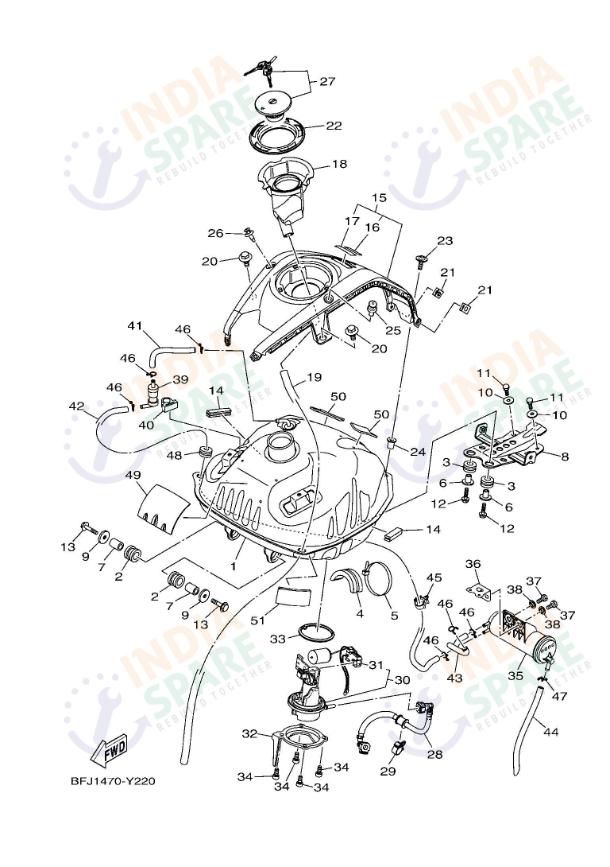

FUEL TANK
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GF41100000 | FUEL TANK COMP. | ₹ 2138 | 1 | ||
| 2 | 21CF41810000 | DAMPER LOCATING 1 | ₹ 7 | 2 | ||
| 3 | 904801536300 | GROMMET | ₹ 110 | 2 | ||
| 4 | 21CF41830000 | DAMPER LOCATING 3 | ₹ 19 | 1 | ||
| 5 | 904648080200 | CLAMP | ₹ 13 | 1 | ||
| 6 | 90387068B200 | COLLAR | ₹ 11 | 2 | ||
| 7 | 90387107H600 | COLLAR | ₹ 10 | 2 | ||
| 8 | B4GF41910000 | BRACKET FUEL TANK 1 | ₹ 215 | 1 | ||
| 9 | 90201060A300 | WASHER PLAIN | ₹ 8 | 2 | ||
| 10 | 902010638000 | WASHER PLAIN | ₹ 3 | 2 | ||
| 11 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 12 | 901050616900 | BOLT FLANGE | ₹ 5 | 2 | ||
| 13 | 958220603000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 14 | B97F41880000 | MOLD, FUEL TANK | ₹ 5 | 2 | ||
| 15 | B4GXF17D0000 | COVER TOP | ₹ 204 | 1 | ||
| 16 | B4GF45490000 | EMBLEM | ₹ 20 | 1 | ||
| 17 | B97F15680000 | LABEL WARNING | ₹ 9 | 1 | ||
| 18 | B4GF414A0000 | COVER FILLER | ₹ 94 | 1 | ||
| 19 | 904451481100 | HOSE | ₹ 47 | 1 | ||
| 20 | 90109068B200 | BOLT | ₹ 13 | 2 | ||
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 22 | 21CF461400P0 | PLATE CAP - S8 (SILVER) | ₹ 68 | 1 | ||
| 23 | 901590506500 | SCREW WITH WASHER | ₹ 6 | 1 | ||
| 24 | 901790580400 | NUT | ₹ 10 | 1 | ||
| 25 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 26 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 27 | 21CWF4612000 | CAP ASSY WITH LOCK | ₹ 410 | 1 | ||
| 28 | B9PE39711000 | PIPE FUEL 1 | ₹ 870 | 1 | ||
| 29 | 904641600600 | CLAMP | ₹ 59 | 1 | ||
| 30 | B9PE39070100 | FUEL PUMP COMP. | ₹ 5512 | 1 | ||
| 31 | B9PH57520000 | SENDER UNIT ASSY FUEL METER | ₹ 690 | 1 | ||
| 32 | B7JF44910000 | BRACKET FUEL PUMP | ₹ 73 | 1 | ||
| 33 | 2GSF414G0100 | SEAL | ₹ 160 | 1 | ||
| 34 | 913320501000 | BOLT | ₹ 2 | 4 | ||
| 35 | B9PF41700000 | CANISTER ASSY | ₹ 275 | 1 | ||
| 36 | B9PH60120000 | BRACKET SENSOR FITTING 1 | ₹ 22 | 1 | ||
| 37 | 958120601600 | BOLT FLANGE | ₹ 3 | 2 | ||
| 38 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 39 | 2GSF41800000 | ROLL OVER VALVE ASSY | ₹ 120 | 1 | ||
| 40 | 2GSF419A0000 | HOLDER | ₹ 10 | 1 | ||
| 41 | 904451083700 | HOSE | ₹ 60 | 1 | ||
| 42 | B4GF43130000 | PIPE 3 | ₹ 66 | 1 | ||
| 43 | 2GSF43140000 | PIPE 4 | ₹ 15 | 1 | ||
| 44 | 2GSF43150000 | PIPE 5 | ₹ 25 | 1 | ||
| 45 | 904641600600 | CLAMP | ₹ 59 | 1 | ||
| 46 | 904670900600 | CLIP | ₹ 5 | 6 | ||
| 47 | 90467100A100 | CLIP | ₹ 3 | 1 | ||
| 48 | 904801536300 | GROMMET | ₹ 110 | 1 | ||
| 49 | 905200284500 | SEAT PIPE | ₹ 20 | 1 | ||
| 50 | 905200382900 | SEAT PIPE | ₹ 12 | 2 | ||
| 51 | 905200881300 | SEAT PIPE | ₹ 12 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The fuel tank is more than just a reservoir; it is a complex system that ensures the steady flow of energy to the heart of your motorcycle. This complete fuel tank assembly includes the rugged fuel tank comp, designed to resist high vibrations plus temperatures typical of the Indian riding environment. Protecting the fuel from contamination is the cap assy with lock plus a secure filler cover. Inside, the high performance fuel pump comp plus sender unit assy fuel meter work together to provide accurate fuel data plus precise pressure to the injector. Safety features like the canister assy plus roll over valve protect the environment, the rider during extreme conditions. Every collar plus damper locating is strategically placed to mount the tank securely to the frame, preventing any mechanical stress. Choosing these genuine fuel system parts ensures your engine always receives clean fuel, maintaining peak performance plus efficiency.
