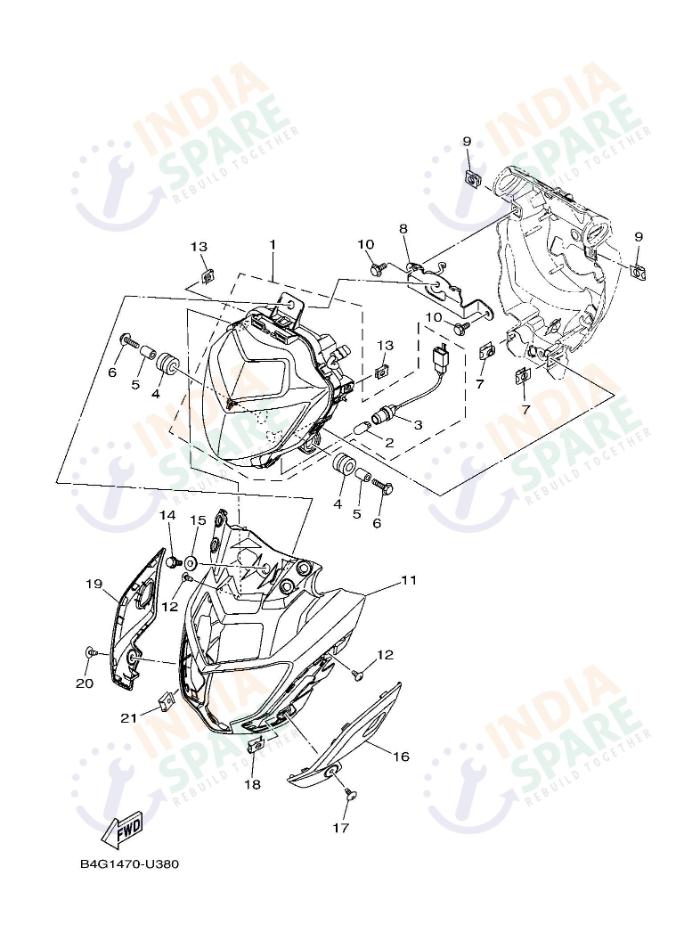

HEADLIGHT
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GH43000000 | HEADLIGHT ASSY | ₹ 3222 | 1 | ||
| 2 | 2LPH43470000 | BULB ( 12V-5W ) | ₹ 23 | 1 | ||
| 3 | B4GH43120000 | HOLDER SOCKET | ₹ 145 | 1 | ||
| 4 | 904801410100 | GROMMET | ₹ 10 | 2 | ||
| 5 | 90387068D400 | COLLAR | ₹ 7 | 2 | ||
| 6 | 958270602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 7 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 8 | B4GF31750000 | BRACKET HEADLIGHT STAY 1 | ₹ 79 | 1 | ||
| 9 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 10 | 958270801600 | BOLT FLANGE | ₹ 10 | 2 | ||
| 11 | B4GF31210000 | COVER UPPER 1 | ₹ 82 | 1 | ||
| 12 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 14 | 958270801600 | BOLT FLANGE | ₹ 10 | 1 | ||
| 15 | 90387068N200 | COLLAR | ₹ 11 | 1 | ||
| 16A | B4GF312200P0 | COVER OUTER 1 SMX | ₹ 132 | 1 | FOR SMX | |
| 16B | B4GF312200PA | COVER, OUTER 1 | ₹ 198 | 1 | FOR CM7 | |
| 17 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 19A | B4GF313200P0 | COVER OUTER 2 SMX | ₹ 132 | 1 | FOR SMX | |
| 19B | B4GF313200PA | COVER, OUTER 2 | ₹ 198 | 1 | FOR CM7 | |
| 20 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Piercing through the darkness of rural roads, lit city avenues, the front illumination system is your primary guide for every journey. This comprehensive headlight assembly provides a powerful beam that illuminates the path ahead with exceptional clarity. Utilizing a high performance bulb plus a specialized bracket headlight stay, the entire unit is held securely in place, even when traversing rough terrains. The sleek cover upper, outer housing not only protect the sensitive optics but also enhance the aggressive aerodynamic profile of the motorcycle. Every component, from the collar to the nut spring, is manufactured to withstand the constant buffeting of wind plus road grime. By choosing this original assembly, you ensure your night vision remains uncompromised, allowing for faster reaction times, a more relaxed riding posture. Experience the peace of mind that comes from superior engineering, where every photon is directed exactly where it is needed.
