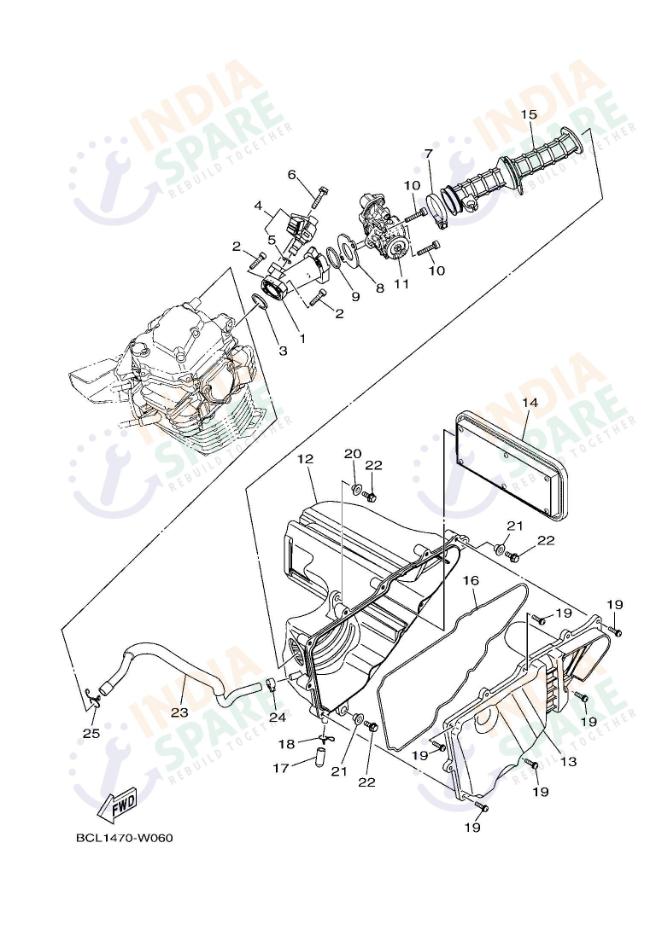

INTAKE
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9PE35852000 | MANIFOLD | ₹ 208 | 1 | ||
| 2 | 913120602500 | BOLT | ₹ 7 | 2 | ||
| 3 | 2GSE36450000 | GASKET MANIFOLD 1 | ₹ 30 | 1 | ||
| 4 | BACE37700000 | INJECTOR ASSY | ₹ 2681 | 1 | ||
| 5 | BACE41A10000 | SEAL RING | ₹ 145 | 1 | ||
| 6 | 958120603000 | BOLT FLANGE | ₹ 14 | 1 | ||
| 7 | 904504380800 | HOSE CLAMP ASSY | ₹ 30 | 1 | ||
| 8 | B9PE42430000 | PLATE | ₹ 21 | 1 | ||
| 9 | B9PE36460000 | GASKET MANIFOLD 2 | ₹ 39 | 1 | ||
| 10 | 901100684600 | BOLT HEXAGON SOCKET HEAD | ₹ 44 | 2 | ||
| 11 | B9PE37500100 | THROTTLE BODY ASSY | ₹ 4254 | 1 | ||
| 12 | B9PE44110000 | CASE AIR CLEANER 1 | ₹ 590 | 1 | ||
| 13 | B9PE44121000 | CAP CLEANER CASE 1 | ₹ 220 | 1 | ||
| 14 | B9PE44500000 | ELEMENT ASSY AIR CLEANER | ₹ 245 | 1 | ||
| 15 | B9PE44530000 | JOINT AIR CLEANER 1 | ₹ 195 | 1 | ||
| 16 | 2GSE44520000 | SEAL | ₹ 32 | 1 | ||
| 17 | 20PE443E0000 | PIPE DRAIN | ₹ 11 | 1 | ||
| 18 | 904671280000 | CLIP | ₹ 12 | 1 | ||
| 19 | 977025002500 | SCREW TAPPING | ₹ 10 | 9 | ||
| 20 | 903870673700 | COLLAR | ₹ 11 | 1 | ||
| 21 | 903870980600 | COLLAR | ₹ 11 | 2 | ||
| 22 | 958270801600 | BOLT FLANGE | ₹ 10 | 3 | ||
| 23 | 2GSE11661000 | PIPE BREATHER 1 | ₹ 40 | 1 | ||
| 24 | 904671381600 | CLIP | ₹ 4 | 1 | ||
| 25 | 904671501200 | CLIP | ₹ 5 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Providing the perfect air-fuel mixture is essential for a smooth ride, it all starts at the intake system. This comprehensive assembly includes the intake manifold plus a high precision injector assy that delivers fuel with micro-millisecond accuracy. Protecting the engine from contaminants is the element assy air cleaner, housed within a secure case designed for optimal airflow. A series of joints, clips ensures the entire path from the air filter to the throttle body assy is airtight, preventing unfiltered air from entering the combustion chamber. The system also includes specialized parts like the breather pipe, drain pipe for managing internal vapors. These components are specifically engineered to handle the dusty environments of Indian cities, ensuring longevity of your engine. By using only genuine intake parts, you maintain the fuel efficiency plus crisp throttle response that make your motorcycle a leader, ensuring every journey is effortless.
