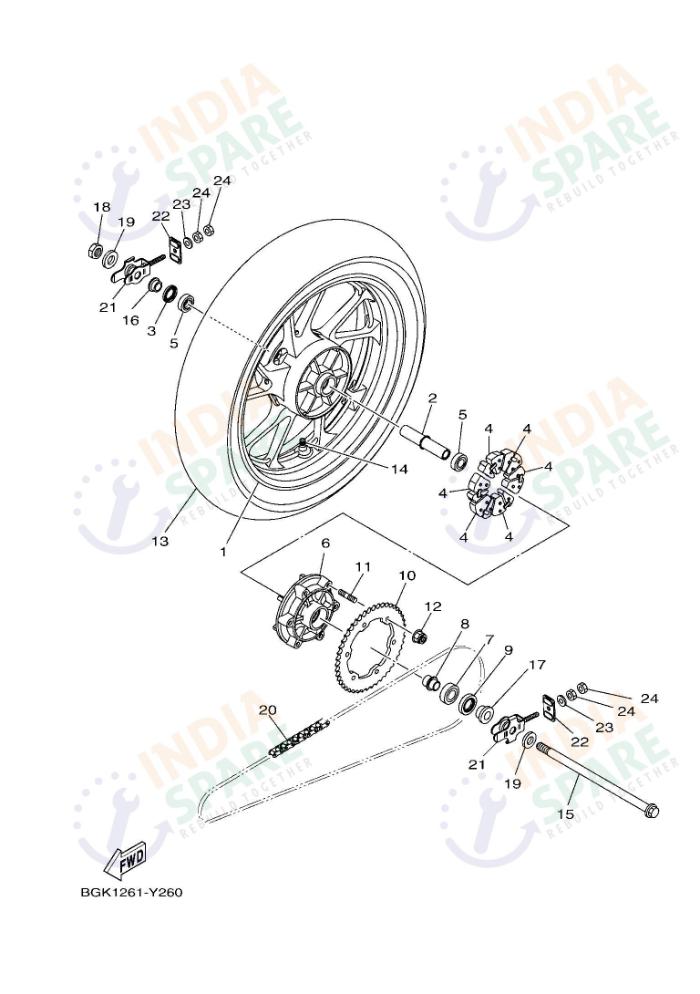

REAR WHEEL
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BFJF53380033 | CAST WHEEL, REAR | ₹ 6453 | 1 | ||
| 2 | B97F530S0000 | COLLAR ASSY | ₹ 49 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 4 | B97F53640000 | DAMPER | ₹ 25 | 6 | ||
| 5 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 6 | B97F53660000 | CLUTCH HUB | ₹ 456 | 1 | ||
| 7 | 93306054Y500 | BEARING | ₹ 170 | 1 | ||
| 8 | B97F53760000 | COLLAR WHEEL | ₹ 41 | 1 | ||
| 9 | 931062680100 | SEAL OIL | ₹ 23 | 1 | ||
| 10 | 2GSF54411000 | SPROCKET, DRIVEN (41T) | ₹ 0 | 1 | ||
| 11 | 901160882600 | BOLT STUD | ₹ 31 | 6 | ||
| 12 | 956020820000 | NUT U FLANGE | ₹ 11 | 6 | ||
| 13A | 941141780100 | TIRE | ₹ 0 | 1 | ||
| 13B | 941141780700 | TIRE -REAR-CEAT LIMITED | ₹ 2939 | 1 | ||
| 14 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 15 | 21CF53810000 | AXLE WHEEL | ₹ 147 | 1 | ||
| 16 | B97F53770000 | COLLAR WHEEL | ₹ 31 | 1 | ||
| 17 | B97F53830000 | COLLAR WHEEL | ₹ 38 | 1 | ||
| 18 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 19 | 902011581400 | WASHER PLAIN | ₹ 27 | 2 | ||
| 20 | 94568K312800 | CHAIN (R428NAR 128L) | ₹ 0 | 1 | ||
| 21 | 21CF53881100 | PULLER CHAIN 1 | ₹ 55 | 2 | ||
| 22 | 21CF21740000 | END 1 | ₹ 9 | 2 | ||
| 23 | 929070860000 | WASHER | ₹ 8 | 2 | ||
| 24 | 9530N0860000 | NUT HEX | ₹ 5 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Power from the engine finally meets the road at the rear wheel, where traction plus durability are of utmost importance. This complete rear wheel assembly includes the cast wheel plus the heavy duty tire that provides grip for acceleration, stability. The hub contains high quality bearings plus a durable oil seal to ensure smooth rotation plus protection from the elements. To absorb the shocks of the drivetrain, a set of rubber dampers is fitted within the clutch hub, providing a smoother transition of power to the driven sprocket. The entire unit is secured by a robust axle wheel plus a self locking nut, ensuring it stays perfectly aligned even under high loads. Whether you are navigating potholed city roads or smooth highway stretches, these components are designed to withstand the rigors of Indian road conditions. Choosing genuine wheel parts means you are investing in the safety plus performance of your ride.
