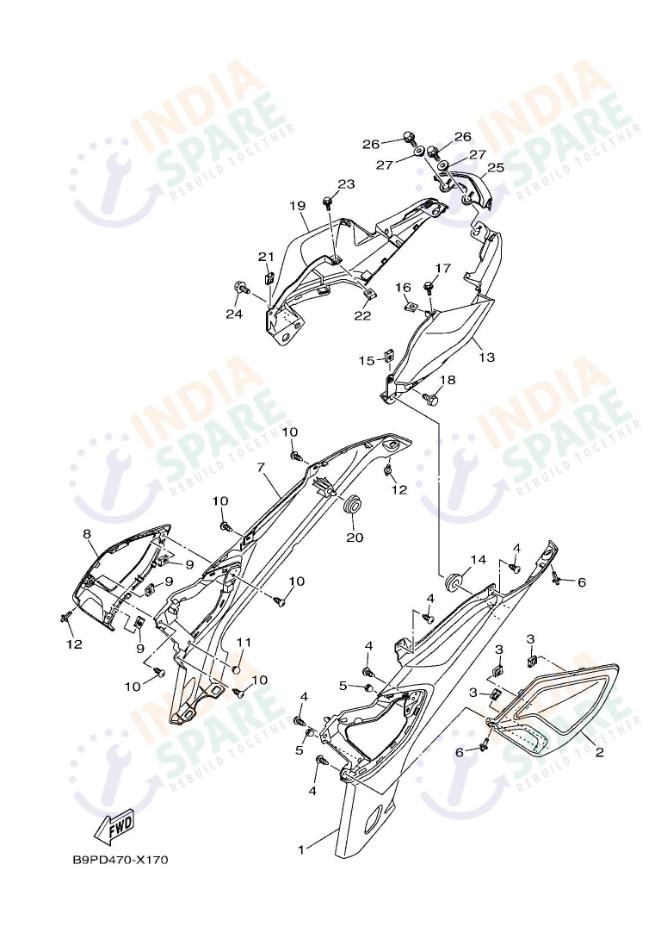

SIDE COVER
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GF17110000 | COVER SIDE 1 | ₹ 113 | 1 | FOR SMX | |
| 2A | B4GF172A00P4 | PANEL 1 MNM3 | ₹ 290 | 1 | FOR CM7 | |
| 2B | B4GF172A00P9 | PANEL 1 | ₹ 424 | 1 | ||
| 3 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 4 | 977025001200 | SCREW TAPPING | ₹ 11 | 5 | ||
| 5 | 21CF17170000 | DAMPER | ₹ 2 | 2 | ||
| 6 | 902690681600 | RIVET | ₹ 12 | 2 | ||
| 7 | B4GF17210000 | COVER SIDE 2 | ₹ 113 | 1 | ||
| 8A | B4GF172F00P4 | PANEL 2 MNM3 | ₹ 290 | 1 | FOR SMX | |
| 8B | B4GF172F00P9 | PANEL 2 | ₹ 424 | 1 | FOR CM7 | |
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 10 | 977025001200 | SCREW TAPPING | ₹ 11 | 5 | ||
| 11 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 12 | 902690681600 | RIVET | ₹ 12 | 2 | ||
| 13A | B4GF173101P0 | COVER SIDE 3 SMX | ₹ 256 | 1 | FOR SMX | |
| 13B | B4GF173100PA | COVER, SIDE 3 | ₹ 0 | 1 | FOR CM7 | |
| 14 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 15 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 16 | 90183050A600 | NUT SPRING | ₹ 73 | 1 | ||
| 17 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 1 | ||
| 18 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 1 | ||
| 19A | B4GF174101P0 | COVER SIDE 4 SMX | ₹ 256 | 1 | FOR SMX | |
| 19B | B4GF174100PA | COVER, SIDE 4 | ₹ 0 | 1 | FOR CM7 | |
| 20 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 22 | 90183050A600 | NUT SPRING | ₹ 73 | 1 | ||
| 23 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 1 | ||
| 24 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 1 | ||
| 25 | B4GF171E0000 | COVER SIDE 5 | ₹ 20 | 1 | ||
| 26 | 950220601600 | BOLT FLANGE | ₹ 11 | 2 | ||
| 27 | 90387068N200 | COLLAR | ₹ 11 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Body panels are the skin of your motorcycle, providing both aerodynamic efficiency plus a bold aesthetic statement. This side cover assembly is composed of several high quality panels designed to flow seamlessly from the tank to the tail. Each cover side plus panel is made from impact resistant plastics painted to withstand intense UV rays of the Indian sun. Secure mounting is achieved using a system of a grommet plus a nut spring, which allow for a flush fit, reduce chances of annoying rattles. The set includes specialized parts like the rivet plus collar for a professional, durable installation. Whether it is the sleek panel or the robust side cover, these components are designed to emphasize the muscular contours of your bike. Replacing damaged panels with these genuine parts restores the factory new look plus aerodynamic profile of your vehicle, ensuring you always ride with style plus confidence.
