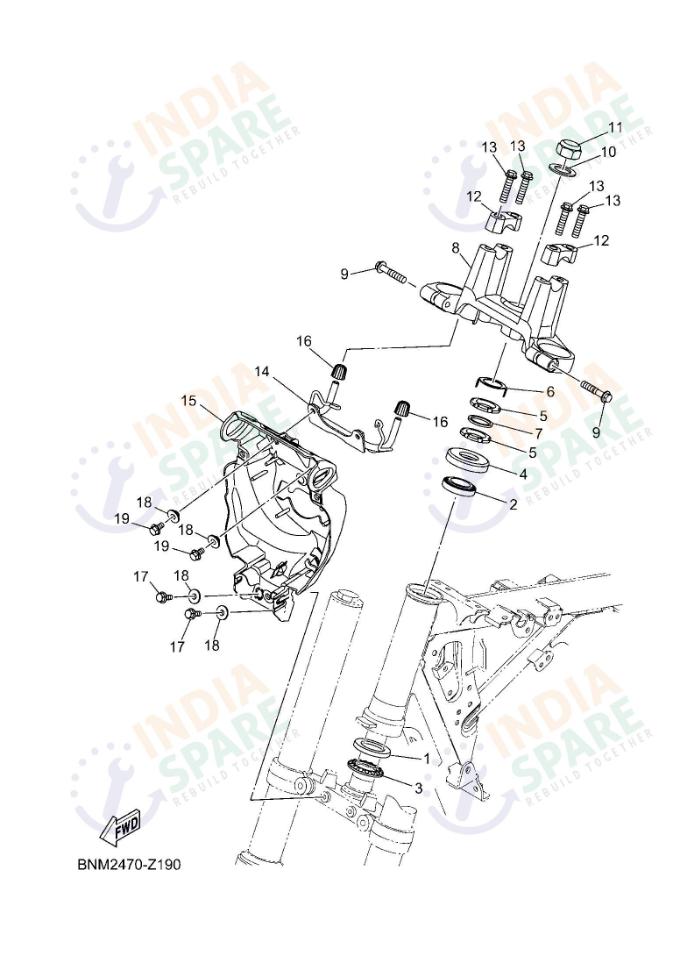

STEERING
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CF34120000 | RACE, BALL 2 | ₹ 0 | 1 | ||
| 2 | 93399999X300 | BEARING | ₹ 0 | 1 | ||
| 3 | 4LSF341E1000 | RETAINER, BALL BEARING | ₹ 0 | 1 | ||
| 4 | 5YYF34160000 | COVER BALL RACE 2 | ₹ 103 | 1 | ||
| 5 | 901792561500 | NUT | ₹ 40 | 2 | ||
| 6 | 20PF34180000 | WASHER SPECIAL | ₹ 11 | 1 | ||
| 7 | 902022614200 | WASHER PLATE | ₹ 5 | 1 | ||
| 8 | B4GF34350000 | CROWN HANDLE | ₹ 1313 | 1 | ||
| 9 | 950270804000 | BOLT FLANGE | ₹ 23 | 2 | ||
| 10 | 902012201800 | WASHER PLATE | ₹ 198 | 1 | ||
| 11 | 901762208100 | NUT CROWN | ₹ 564 | 1 | ||
| 12 | B97F34410000 | HOLDER HANDLE UPPER | ₹ 52 | 2 | ||
| 13 | 950220803500 | BOLT FLANGE | ₹ 8 | 4 | ||
| 14 | BFJF317E0000 | STAY | ₹ 331 | 1 | ||
| 15 | B4GF317F0000 | STAY 2 | ₹ 101 | 1 | ||
| 16 | 21CF317J0000 | DAMPER 1 | ₹ 6 | 2 | ||
| 17 | 958270801600 | BOLT FLANGE | ₹ 10 | 2 | ||
| 18 | 903870781900 | COLLAR | ₹ 10 | 4 | ||
| 19 | 958120601200 | BOLT FLANGE | ₹ 3 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The connection between the rider's hands plus the front wheel is mediated by the steering assembly, a critical component for every maneuver. This comprehensive set includes the crown handle plus holder handle upper, providing the structural backbone for the handlebars. To ensure a smooth, effortless turning motion, a high quality ball race plus retainer with ball bearings are utilized within the steering head. Protection for these sensitive bearings is provided by a dedicated cover ball race plus a special washer. The assembly also includes the essential stay plus dampers that reduce the transfer of engine vibrations to the hands. Every bolt flange plus nut crown is manufactured to exact specifications to maintain the tension, alignment of the steering column. By keeping these steering components in top condition with genuine parts, you ensure your motorcycle responds intuitively to every input, providing a safe ride on busy city streets plus winding highways.
