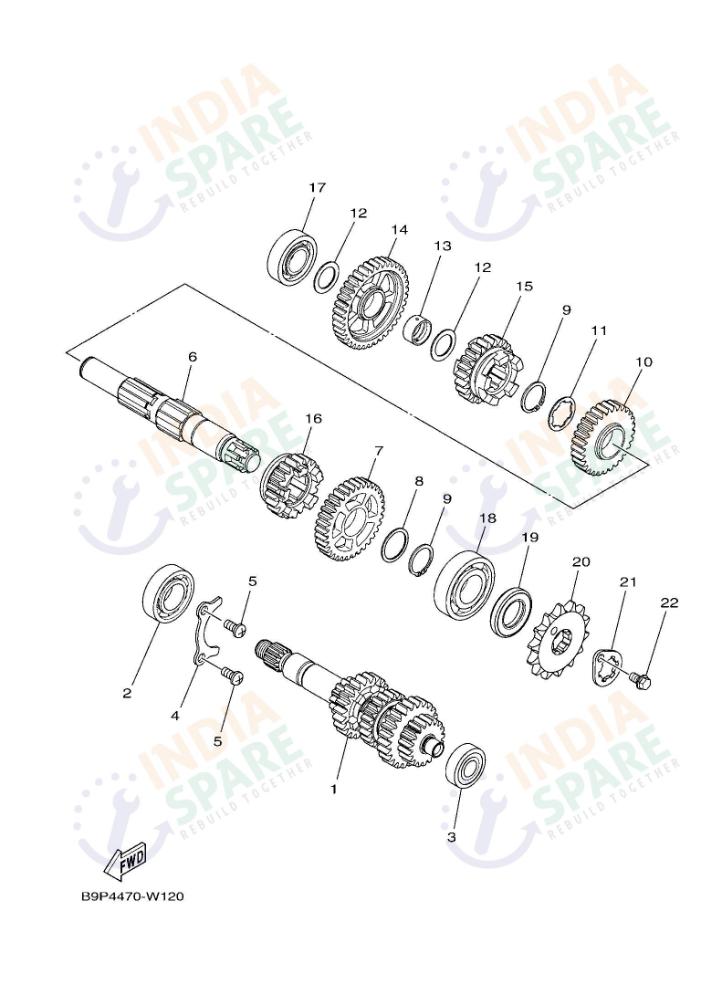

TRANSMISSION
D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BACE74101000 | MAIN AXLE COMP. | ₹ 1760 | 1 | ||
| 2 | 93306054YE00 | BEARING | ₹ 194 | 1 | ||
| 3 | 93306201Y400 | BEARING | ₹ 202 | 1 | ||
| 4 | 21CE74710000 | PLATE COVER | ₹ 12 | 1 | ||
| 5 | 985020601200 | SCREW PAN HEAD | ₹ 17 | 2 | ||
| 6 | BACE74021000 | DRIVE AXLE ASSY | ₹ 671 | 1 | ||
| 7 | BACE72210000 | GEAR 2ND WHEEL | ₹ 387 | 1 | ||
| 8 | 902012279300 | WASHER PLATE | ₹ 55 | 1 | ||
| 9 | 934102203900 | CIRCLIP | ₹ 4 | 2 | ||
| 10 | BACE72310000 | GEAR 3RD WHEEL | ₹ 350 | 1 | ||
| 11 | 902091820800 | WASHER PLAIN | ₹ 16 | 1 | ||
| 12 | 90201178D300 | WASHER PLAIN | ₹ 8 | 2 | ||
| 13 | 21CE72580000 | COLLAR 1 | ₹ 37 | 1 | ||
| 14 | BACE72110000 | GEAR 1ST WHEEL | ₹ 387 | 1 | ||
| 15 | BACE72410000 | GEAR 4TH WHEEL | ₹ 276 | 1 | ||
| 16 | BACE72510000 | GEAR 5TH WHEEL | ₹ 336 | 1 | ||
| 17 | 93306203XR00 | BEARING | ₹ 227 | 1 | ||
| 18 | 93306272X400 | BEARING | ₹ 242 | 1 | ||
| 19 | 931022281800 | OIL SEAL | ₹ 21 | 1 | ||
| 20 | 938221480000 | SPROCKET DRIVE(14T) | ₹ 127 | 1 | ||
| 21 | 4LSE74560000 | HOLDER SPROCKET | ₹ 4 | 1 | ||
| 22 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Converting engine power into road speed requires a complex network of rotating shafts, interlocking gears. This transmission assembly is the mechanical heart of your motorcycle's drive system, featuring the main axle comp plus the drive axle assy. Each gear wheel is precisely machined to provide a specific ratio for everything from high torque takeoffs to fuel efficient highway cruising. To ensure smooth rotation of these heavy duty shafts, a set of high performance bearings is used, protected by a specialized oil seal. The drive power is finally sent to the rear wheel through the sprocket drive, which is held securely by the holder sprocket. Every part, from the circlip to the washer plate, is essential for the durability of the gearbox under the taxing conditions of Indian roads. By using these genuine transmission components, you guarantee a quiet, efficient power delivery that keeps your motorcycle performing for years.
