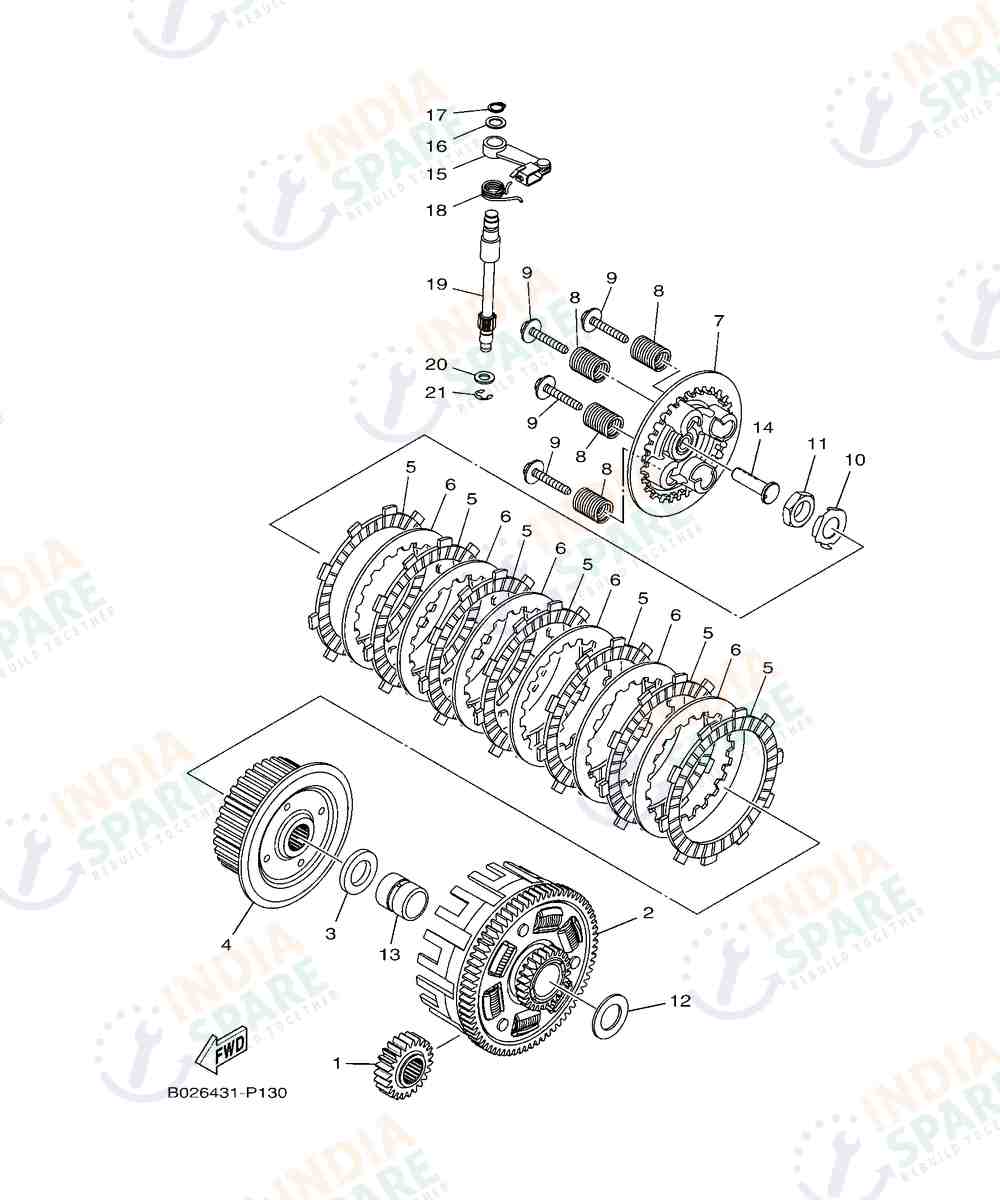

CLUTCH
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDE61110000 | GEAR PRIMARY DRIVE | ₹ 802 | 1 | ||
| 2 | 2MSE61500000 | PRIMARY DRIVEN GEAR COMP. | ₹ 5660 | 1 | ||
| 3 | 1WDE61540000 | PLATE THRUST 1 | ₹ 119 | 1 | ||
| 4 | 2MSE63710000 | BOSS CLUTCH | ₹ 4010 | 1 | ||
| 5 | 1WDE63310000 | PLATE FRICTION 2 | ₹ 285 | 7 | ||
| 6 | 1WDE63240000 | PLATE CLUTCH 1 | ₹ 79 | 6 | ||
| 7 | 2MSE63500100 | PRESSURE PLATE ASSY | ₹ 3079 | 1 | ||
| 8 | 2MSE63331000 | SPRING CLUTCH 1 | ₹ 220 | 4 | ||
| 9 | 1WDE63370000 | SCREW, SPRING | ₹ 20 | 4 | ||
| 10 | 902151880000 | WASHER, LOCK | ₹ 25 | 1 | ||
| 11 | 901701822100 | NUT | ₹ 285 | 1 | ||
| 12 | 902012201300 | WASHER, PLATE | ₹ 215 | 1 | ||
| 13 | 1WDE61810000 | SPACER 1 | ₹ 216 | 1 | ||
| 14 | 1WDE63560000 | ROD PUSH 1 | ₹ 331 | 1 | ||
| 15 | 2MSE63400000 | PUSH LEVER ASSY | ₹ 737 | 1 | ||
| 16 | 902011084300 | WASHER, PLATE | ₹ 9 | 1 | ||
| 17 | 990091040000 | CIRCLIP | ₹ 6 | 1 | ||
| 18 | 905081813600 | SPRING TORSION | ₹ 12 | 1 | ||
| 19 | 1WD163820000 | AXLE PUSH LEVER | ₹ 1050 | 1 | ||
| 20 | 929070860000 | WASHER | ₹ 8 | 1 | ||
| 21 | 990800760000 | CIRCLIP | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
