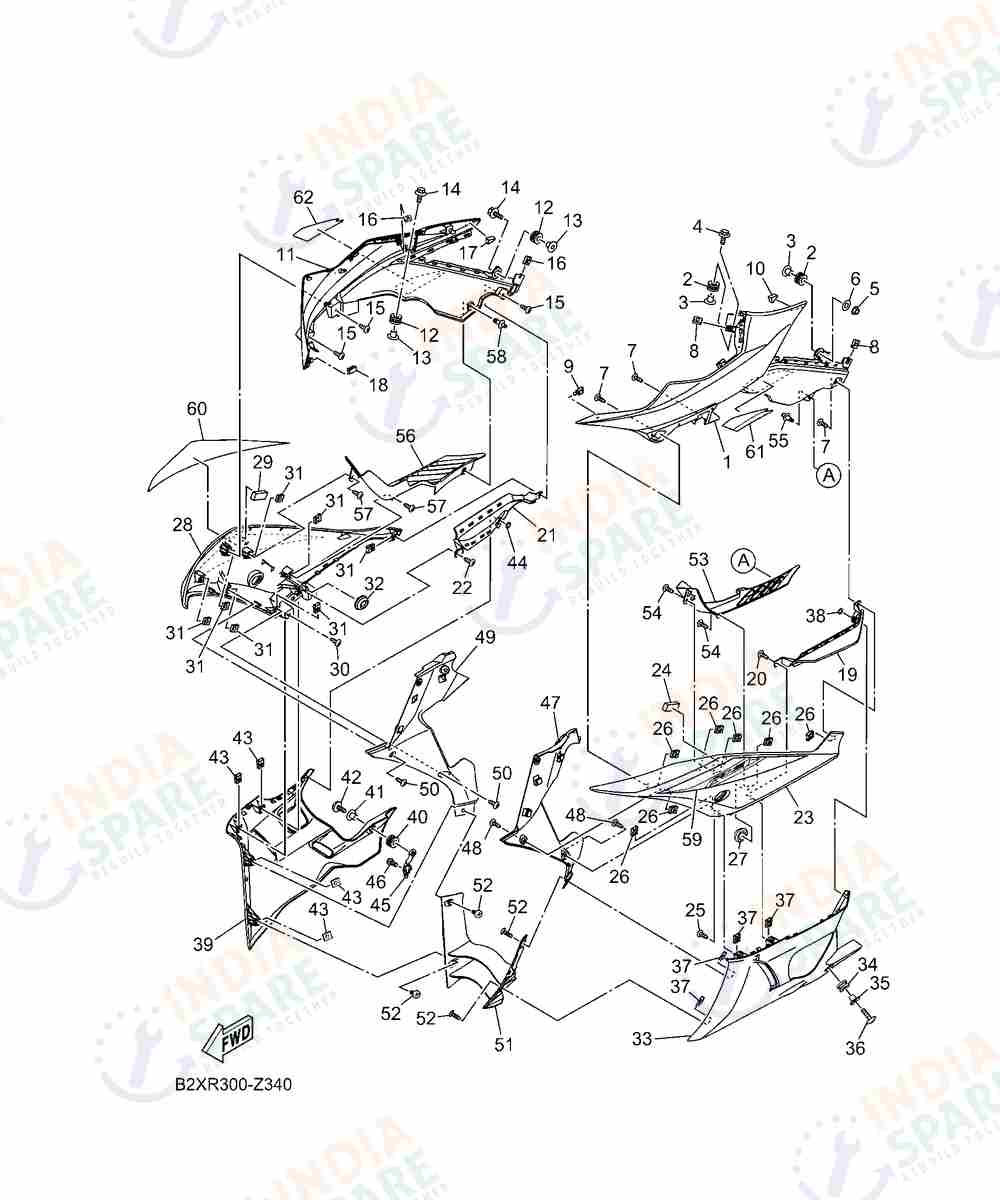

COWLING 1
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BS7F172G00P0 | PANEL 3 | ₹ 1581 | 1 | FOR DPBMC | |
| 1B | BS7F172G00P3 | PANEL 3 | ₹ 1590 | 1 | FOR SM12 | |
| 2 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 3 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 4 | 901190609600 | BOLT, WITH WASHER | ₹ 21 | 1 | ||
| 5 | 957020650000 | NUT FLANGE | ₹ 29 | 1 | ||
| 6 | 902010638000 | WASHER PLAIN | ₹ 3 | 1 | ||
| 7 | 977025001600 | SCREW TAPPING | ₹ 10 | 3 | ||
| 8 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 9 | 44DF83790000 | HOOK | ₹ 17 | 1 | ||
| 10 | BS7F84150000 | DAMPER 1 | ₹ 25 | 1 | ||
| 11A | BS7F172H00P0 | PANEL 4 | ₹ 1613 | 1 | FOR DPBMC | |
| 11B | BS7F172H00P3 | PANEL 4 | ₹ 1590 | 1 | FOR SM12 | |
| 12 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 13 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 14 | 901190609600 | BOLT, WITH WASHER | ₹ 21 | 2 | ||
| 15 | 977025001600 | SCREW TAPPING | ₹ 10 | 3 | ||
| 16 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 17 | BS7F84150000 | DAMPER 1 | ₹ 25 | 1 | ||
| 18 | 44DF83790000 | HOOK | ₹ 17 | 1 | ||
| 19 | BS7F117V0000 | COVER 7 | ₹ 138 | 1 | ||
| 20 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 21 | BS7F117W0000 | COVER 8 | ₹ 138 | 1 | ||
| 22 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 23A | BS7F835U00P9 | PANEL 1 | ₹ 1475 | 1 | MBM3 FOR DPBMC | |
| 23B | BS7F835U00P8 | PANEL 1 | ₹ 1014 | 1 | MDNM8 FOR SM12 | |
| 24 | 5YT246650000 | DAMPER | ₹ 45 | 1 | ||
| 25 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 26 | 901830580700 | NUT SPRING | ₹ 10 | 7 | ||
| 27 | 904800182100 | GROMMET | ₹ 75 | 1 | ||
| 28A | BS7F835V00P9 | PANEL 2 | ₹ 1475 | 1 | MBM3 FOR DPBMC | |
| 28B | BS7F835V00P8 | PANEL 2 | ₹ 1014 | 1 | MDNM8 FOR SM12 | |
| 29 | 5YT246650000 | DAMPER | ₹ 45 | 1 | ||
| 30 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 31 | 901830580700 | NUT SPRING | ₹ 10 | 7 | ||
| 32 | 904800182100 | GROMMET | ₹ 75 | 1 | ||
| 33A | BS7F838500P9 | COVER, LOWER | ₹ 2028 | 1 | MBM3 FOR DPBMC | |
| 33B | BS7F838500P8 | COVER, LOWER | ₹ 2028 | 1 | MDNM8 FOR SM12 | |
| 34 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 35 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 36 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 1 | ||
| 37 | 901830580700 | NUT SPRING | ₹ 10 | 4 | ||
| 38 | 9018305M0200 | NUT SPRING | ₹ 15 | 1 | ||
| 39A | B1XF839500P3 | COVER, UNDER | ₹ 2618 | 1 | MBM3 FOR DPBMC | |
| 39B | B1XF839500P1 | COVER, UNDER | ₹ 2525 | 1 | MDNM8 FOR SM12 | |
| 40 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 41 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 42 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 1 | ||
| 43 | 901830580700 | NUT SPRING | ₹ 10 | 4 | ||
| 44 | 9018305M0200 | NUT SPRING | ₹ 15 | 1 | ||
| 45 | BS7F833E0000 | BRACET 8 | ₹ 138 | 1 | ||
| 46 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 47 | BS7F836K0000 | PANEL, INNER 1 | ₹ 276 | 1 | ||
| 48 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 5 | 2 | ||
| 49 | BS7F836L0000 | PANEL, INNER 2 | ₹ 276 | 1 | ||
| 50 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 5 | 2 | ||
| 51 | B1XF836M0100 | PANEL, INNER 3 | ₹ 1005 | 1 | ||
| 52 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 5 | 4 | ||
| 53 | BS7F837V0000 | GRILL, AIR OUTLET 1 | ₹ 276 | 1 | ||
| 54 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 55 | 902690681600 | RIVET | ₹ 12 | 1 | ||
| 56 | BS7F837W0000 | GRILL, AIR OUTLET 2 | ₹ 276 | 1 | ||
| 57 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 58 | 902690681600 | RIVET | ₹ 12 | 1 | ||
| 59A | B5LF83915000 | GRAPHIC 1 | ₹ 2115 | 1 | FOR DPBMC | |
| 59B | B5LF83916000 | GRAPHIC 1 | ₹ 1200 | 1 | FOR SM12 | |
| 60A | B5LF83925000 | GRAPHIC 2 | ₹ 2115 | 1 | FOR DPBMC | |
| 60B | B5LF83926000 | GRAPHIC 2 | ₹ 1355 | 1 | FOR SM12 | |
| 61A | B5LF83936000 | GRAPHIC 3 | ₹ 250 | 1 | FOR DPBMC | |
| 61B | B5LF83937000 | GRAPHIC 3 | ₹ 150 | 1 | FOR SM12 | |
| 62A | B5LF83946000 | GRAPHIC 4 | ₹ 250 | 1 | FOR DPBMC | |
| 62B | B5LF83947000 | GRAPHIC 4 | ₹ 165 | 1 | FOR SM12 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
