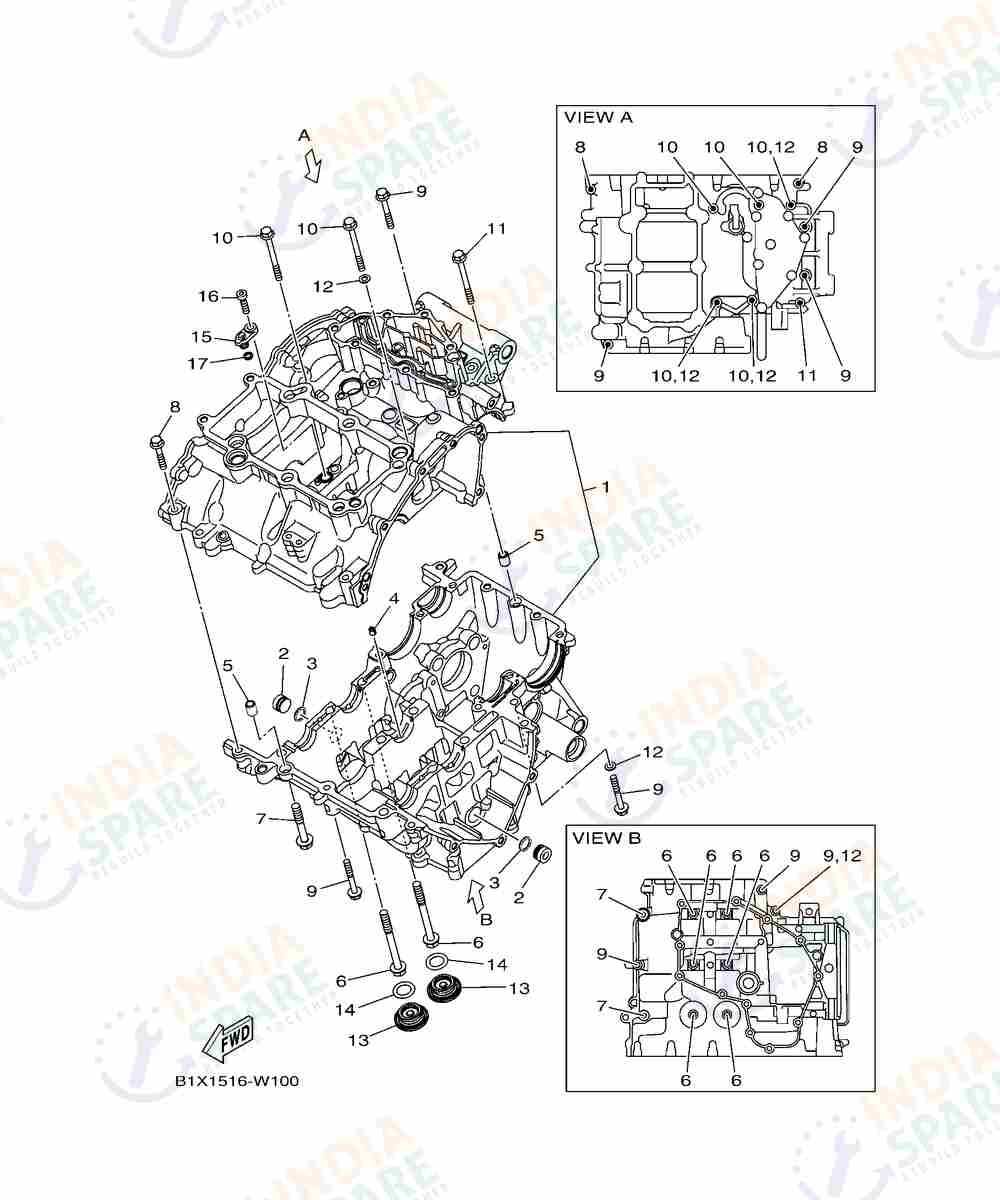

CRANKCASE
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B1XE51500000 | CRANKCASE ASSY | ₹ 17500 | 1 | MBL2 | |
| 2 | 903381626200 | PLUG | ₹ 230 | 2 | ||
| 3 | 932101280300 | O-RING | ₹ 10 | 2 | ||
| 4 | 1WDE51480000 | NOZZLE 2 | ₹ 55 | 1 | ||
| 5 | 995301001400 | PIN DOWEL | ₹ 45 | 2 | ||
| 6 | 90105088F700 | BOLT, FLANGE | ₹ 160 | 6 | ||
| 7 | 90105088G000 | BOLT FLANGE | ₹ 235 | 2 | ||
| 8 | 958120603500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 9 | 958170604500 | BOLT FLANGE | ₹ 38 | 6 | ||
| 10 | 958120606500 | BOLT FLANGE | ₹ 40 | 5 | ||
| 11 | 958170807000 | BOLT FLANGE | ₹ 145 | 1 | ||
| 12 | 904300681700 | GASKET | ₹ 8 | 4 | ||
| 13 | 903402700800 | PLUG, STRAIGHT SCREW | ₹ 2055 | 2 | ||
| 14 | 932103217200 | O-RING | ₹ 125 | 2 | ||
| 15 | B1XE51550000 | NOZZLE 3 | ₹ 327 | 1 | ||
| 16 | 913170601600 | BOLT HEX.SOCKET HD | ₹ 9 | 1 | ||
| 17 | 93210068F700 | O-RING | ₹ 7 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
