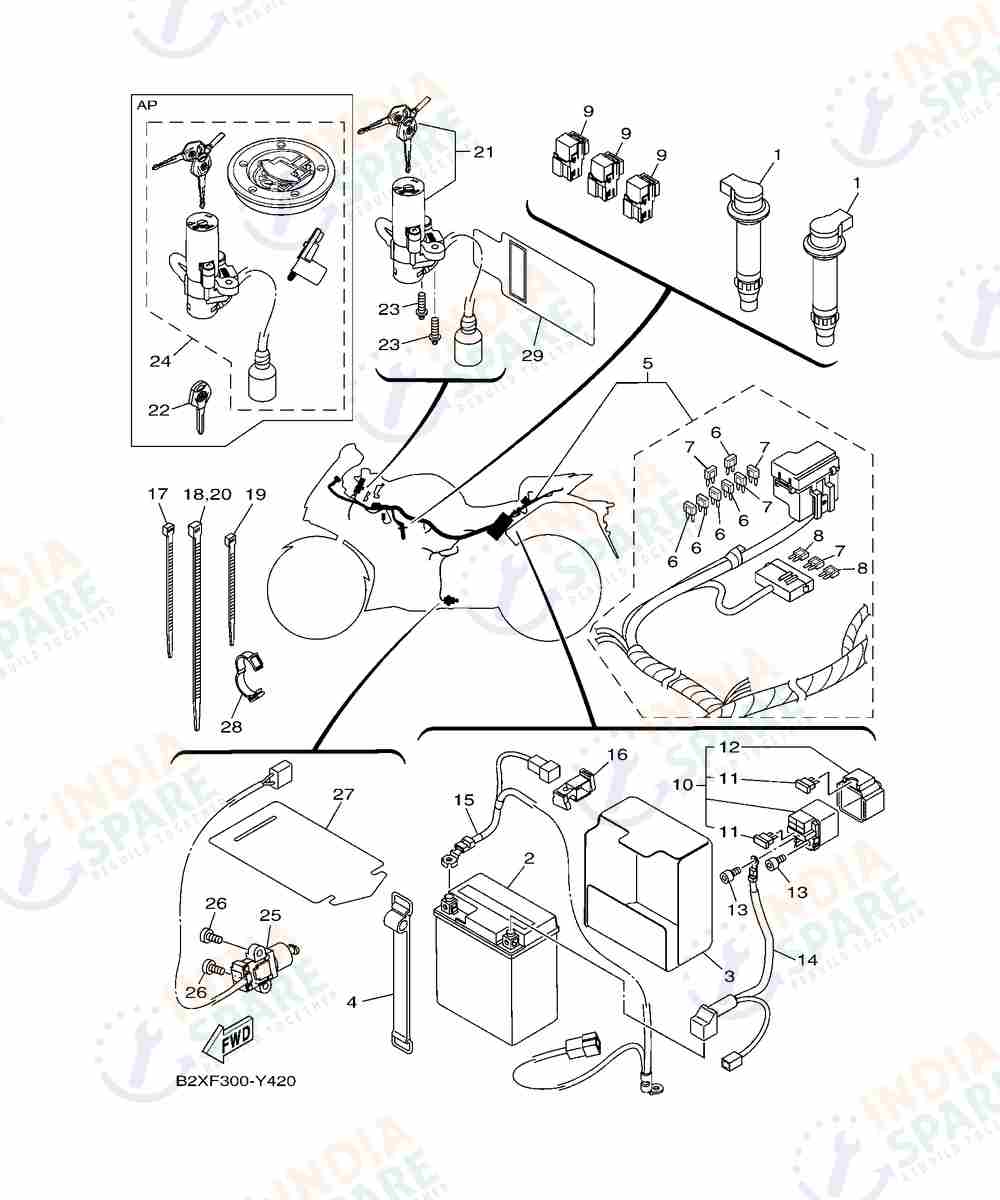

ELECTRICAL 1
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B1X823100000 | IGNITION COIL ASSY | ₹ 4148 | 2 | ||
| 2 | 1WDH21000100 | BATTERY ASSY | ₹ 6190 | 1 | ||
| 3 | 1WDH21210000 | PAD BATTERY | ₹ 212 | 1 | ||
| 4 | 1WDH21310000 | BAND, BATTERY | ₹ 115 | 1 | ||
| 5 | B1XH25900000 | WIRE HARNESS ASSY | ₹ 22500 | 1 | ||
| 6 | 1WDH21512000 | FUSE | ₹ 42 | 5 | ||
| 7 | 1WDH21511000 | FUSE | ₹ 42 | 4 | ||
| 8 | 1WDH21513000 | 1WDH21513000 | ₹ 0 | 2 | ||
| 9 | 1WDH19500000 | RELAY ASSY | ₹ 270 | 3 | ||
| 10 | 1WDH19400000 | STARTER RELAY ASSY | ₹ 400 | 1 | ||
| 11 | 1WDH21510100 | FUSE | ₹ 17 | 2 | ||
| 12 | 1WDH21550000 | BAND | ₹ 85 | 1 | ||
| 13 | 913120500800 | BOLT | ₹ 31 | 2 | ||
| 14 | 2WDH21150100 | WIRE, PLUS LEAD | ₹ 620 | 1 | ||
| 15 | B6WH21160000 | WIRE, MINUS LEAD | ₹ 1000 | 1 | ||
| 16 | BR5H25920000 | BAND | ₹ 335 | 1 | ||
| 17 | 904643680000 | CLAMP | ₹ 8 | 2 | ||
| 18 | 904647080000 | CLAMP | ₹ 14 | 7 | ||
| 19 | 904642280000 | CLAMP | ₹ 9 | 1 | ||
| 20 | 904647080000 | CLAMP | ₹ 14 | 1 | ||
| 21 | B1XH25010000 | MAIN SWITCH STEERING LOCK | ₹ 4100 | 1 | ||
| 22 | 1WDH25110900 | KEY, MAIN SWITCH | ₹ 310 | 1 | AP | |
| 23 | 901090628200 | BOLT | ₹ 80 | 2 | ||
| 24 | B1XXH2500000 | LOCK SET ASSY | ₹ 7700 | 1 | AP | |
| 25 | 1WDH25660200 | SWITCH, SIDE STAND | ₹ 1650 | 1 | ||
| 26 | 901100580900 | BOLT, HEXAGON SOCKET HEAD | ₹ 20 | 2 | ||
| 27 | 1WDH25910000 | 1WDH25910000 | ₹ 0 | 1 | ||
| 28 | 904642600100 | CLAMP | ₹ 35 | 1 | ||
| 29 | 2D1825890200 | PROTECTER, WIRE HARNESS | ₹ 900 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
