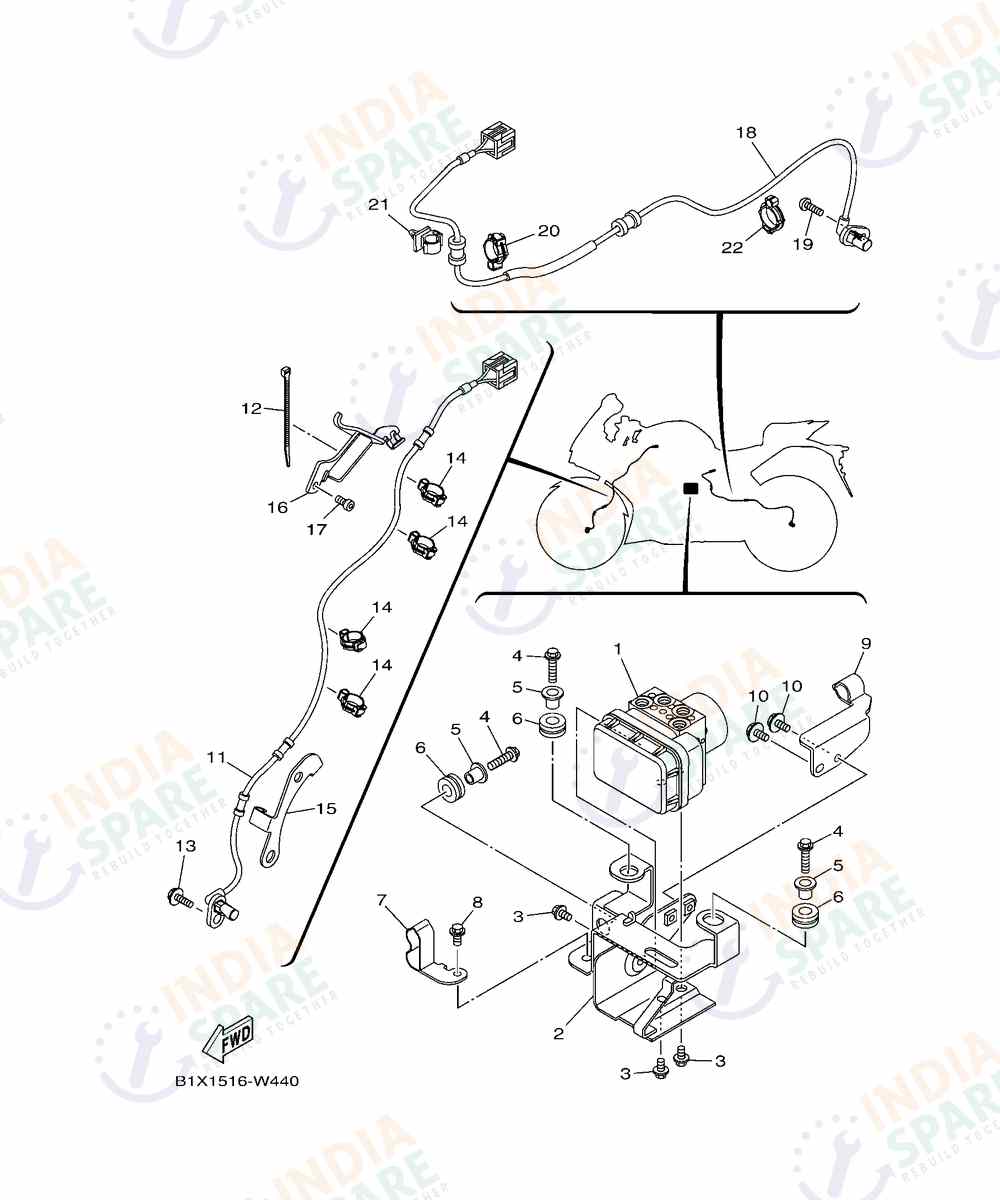

ELECTRICAL 3
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B6WH59300900 | HYDRAULIC UNIT ASSY | ₹ 81493 | 1 | ||
| 2 | B1XF175T0000 | BRACKET 1 | ₹ 967 | 1 | ||
| 3 | 950220601000 | BOLT FLANGE | ₹ 15 | 3 | ||
| 4 | 950220602500 | BOLT FLANGE | ₹ 11 | 3 | ||
| 5 | 9038706M6000 | COLLAR | ₹ 196 | 3 | ||
| 6 | 904801422900 | GROMMET | ₹ 9 | 3 | ||
| 7 | 2WDF58860000 | HOLDER BRAKE HOSE | ₹ 94 | 1 | ||
| 8 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 9 | 2WDF58750000 | HOLDER BRAKE HOSE 1 | ₹ 159 | 1 | ||
| 10 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 11 | 2WD859700100 | WHEEL SENSOR ASSY FRONT | ₹ 7400 | 1 | ||
| 12 | 904642280000 | CLAMP | ₹ 9 | 1 | ||
| 13 | 950270601600 | BOLT FLANGE | ₹ 5 | 1 | ||
| 14 | 904641201300 | CLAMP | ₹ 120 | 4 | ||
| 15 | B5LF33180000 | HOLDER, CABLE 1 | ₹ 276 | 1 | ||
| 16 | B6WF33190000 | HOLDER, CABLE 2 | ₹ 1106 | 1 | ||
| 17 | 901100681000 | BOLT HEX SOCKET HD | ₹ 13 | 1 | ||
| 18 | 2WD859800100 | WHEEL SENSOR ASSY REAR | ₹ 5801 | 1 | ||
| 19 | 920120601600 | BOLT BUTTON HEAD | ₹ 14 | 1 | ||
| 20 | 904641480300 | CLAMP | ₹ 14 | 1 | ||
| 21 | 904641080000 | CLAMP | ₹ 127 | 1 | ||
| 22 | 904641480300 | CLAMP | ₹ 14 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
