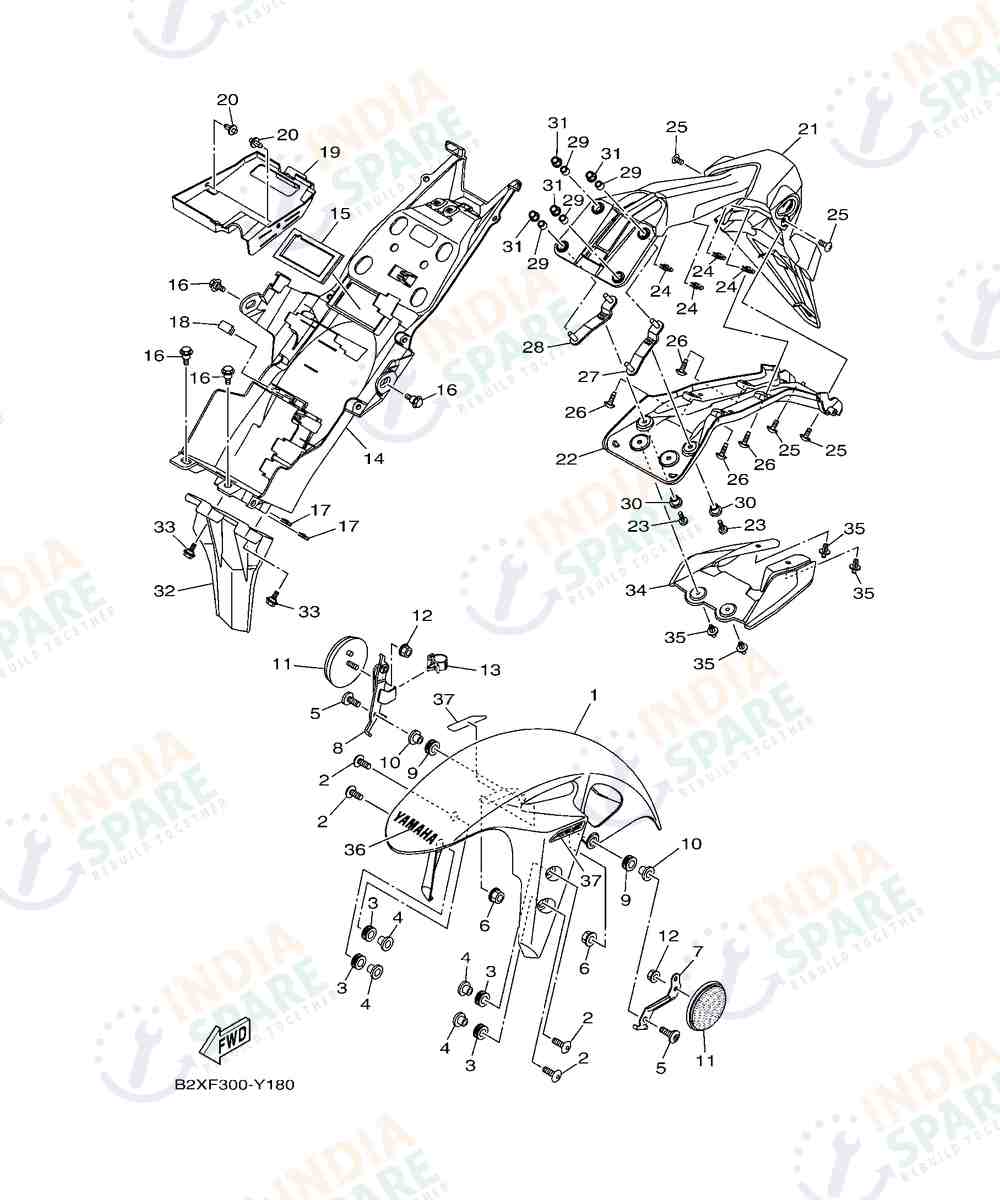

FENDER
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BS7F151100P0 | FENDER, FRONT | ₹ 1949 | 1 | FOR DPBMC | |
| 1B | BS7F151100P9 | FENDER, FRONT | ₹ 1530 | 1 | MDNM8 FOR SM12 | |
| 2 | 901110613700 | BOLT HEX. SOCKET BUTTON | ₹ 35 | 4 | ||
| 3 | 904801280800 | GROMMET | ₹ 10 | 4 | ||
| 4 | 903870689900 | COLLAR | ₹ 30 | 4 | ||
| 5 | 901110684700 | BOLT,HEX. SOCKET BUTTON | ₹ 40 | 2 | ||
| 6 | 957020650000 | NUT FLANGE | ₹ 29 | 2 | ||
| 7 | B5LF113J0000 | BRACKET, REFLECTOR 1 | ₹ 184 | 1 | ||
| 8 | B5LF113K0100 | BRACKET, REFLECTOR 2 | ₹ 507 | 1 | ||
| 9 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 10 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 11 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 12 | 957020550000 | NUT FLANGE | ₹ 2 | 2 | ||
| 13 | 904641600600 | CLAMP | ₹ 59 | 1 | ||
| 14 | BR5F16110100 | FENDER, REAR | ₹ 626 | 1 | ||
| 15 | 1WDF16690000 | SEAL | ₹ 60 | 1 | ||
| 16 | 90109063F100 | BOLT | ₹ 33 | 4 | ||
| 17 | 90183050A600 | NUT SPRING | ₹ 73 | 2 | ||
| 18 | 1WDF16A20000 | SEAL 2 | ₹ 22 | 1 | ||
| 19 | BR5F163E0100 | COVER, REAR FENDER 2 | ₹ 401 | 1 | ||
| 20 | 902690681600 | RIVET | ₹ 12 | 2 | ||
| 21 | B1XF16290000 | GUARD, MUD | ₹ 1078 | 1 | ||
| 22 | 1WDF16170100 | BRACKET, FENDER | ₹ 530 | 1 | ||
| 23 | 901110502100 | BOLT HEX. SOCKET BUTTON | ₹ 34 | 2 | ||
| 24 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 25 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 5 | 4 | ||
| 26 | 901110501800 | BOLT HEX. SOCKET BUTTON | ₹ 525 | 4 | ||
| 27 | 1WDF16880000 | BRACKET, REAR STAY | ₹ 138 | 1 | ||
| 28 | 1WDF16890000 | BRACKET, REAR STAY 2 | ₹ 138 | 1 | ||
| 29 | 90387066J900 | COLLAR | ₹ 7 | 4 | ||
| 30 | 90387068L900 | COLLAR | ₹ 10 | 2 | ||
| 31 | 901850680100 | NUT SELF-LOCKING | ₹ 5 | 4 | ||
| 32 | 1WDF16210100 | FLAP | ₹ 120 | 1 | ||
| 33 | 901090500300 | BOLT | ₹ 30 | 2 | ||
| 34 | 1WDF163A0000 | COVER, TAIL 1 | ₹ 124 | 1 | ||
| 35 | 902690681600 | RIVET | ₹ 12 | 4 | ||
| 36A | 1WDF153E0000 | EMBLEM YAMAHA | ₹ 34 | 1 | FOR DPBMC | |
| 36B | 1WDF153E3000 | EMBLEM, YAMAHA | ₹ 75 | 1 | FOR SM12 | |
| 37A | B5PF1569H000 | GRAPHIC 1 | ₹ 400 | 2 | FOR DPBMC | |
| 37B | B5PF15699000 | GRAPHIC 1 | ₹ 75 | 2 | FOR SM12 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
