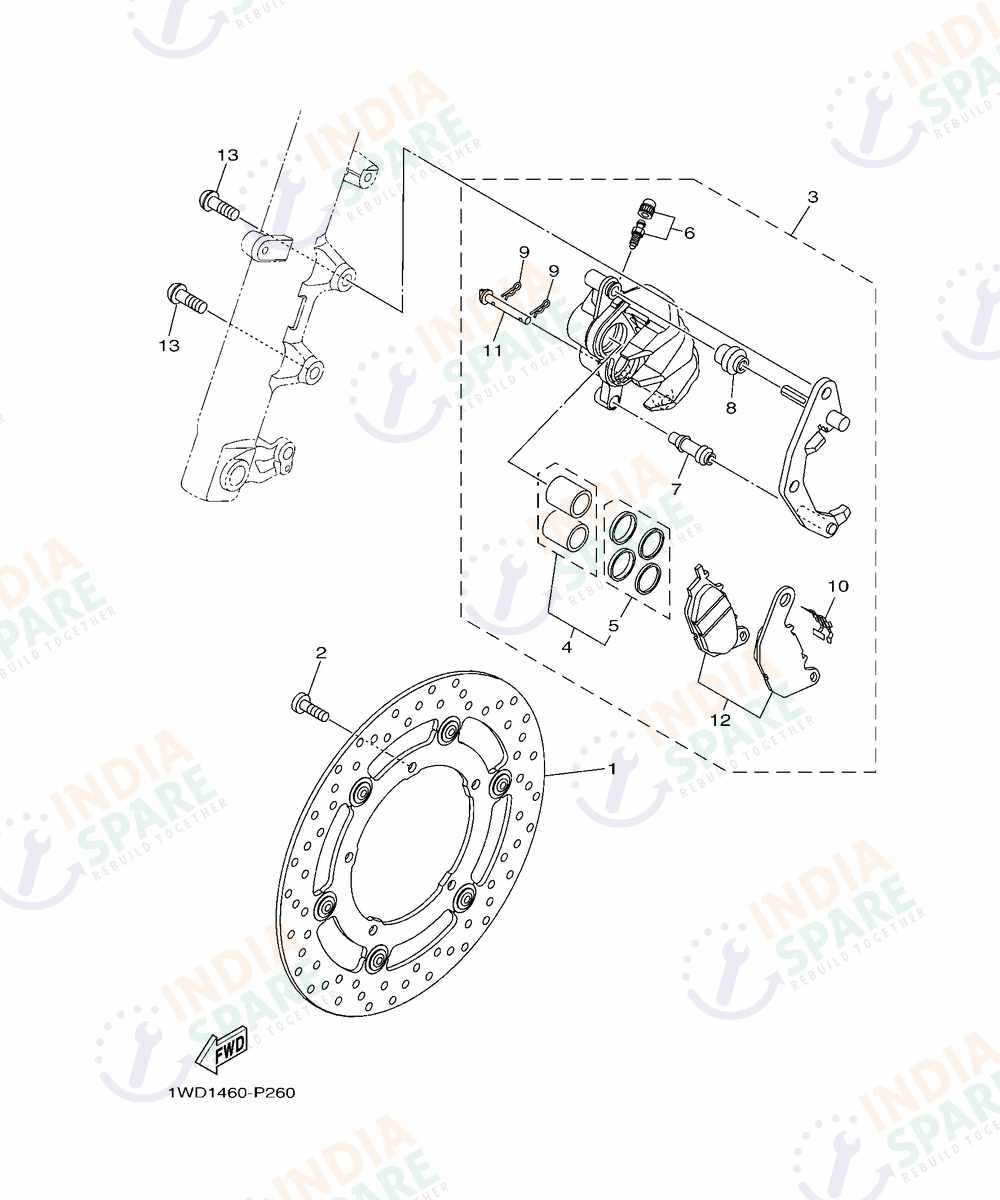

FRONT BRAKE CALIPER
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF581U0100 | DISC BRAKE ASSY (RIGHT) | ₹ 6455 | 1 | ||
| 2 | 901110808700 | BOLT HEX. SOCKET BUTTON | ₹ 20 | 5 | ||
| 3 | 1WDF580U0100 | CALIPER ASSY (RIGHT) | ₹ 4885 | 1 | ||
| 4 | 1WD258020000 | PISTON ASSY CALIP | ₹ 737 | 1 | ||
| 5 | 1WD258030000 | CALIPER SEAL SET | ₹ 302 | 1 | ||
| 6 | 4C9W00480000 | BLEED SCREW SET | ₹ 89 | 1 | ||
| 7 | 5YPF59370000 | BOOT 2 | ₹ 61 | 1 | ||
| 8 | 5YPF59170000 | BOOT CALIPER | ₹ 45 | 1 | ||
| 9 | 5YPF59250100 | CLIP | ₹ 9 | 2 | ||
| 10 | 1WDF59190000 | SUPPORT PAD | ₹ 124 | 1 | ||
| 11 | 5YPF59240000 | PIN PAD | ₹ 76 | 1 | ||
| 12 | 1WD258050000 | BRAKE PAD SET | ₹ 3735 | 1 | ||
| 13 | 901491004400 | SCREW | ₹ 144 | 2 |
