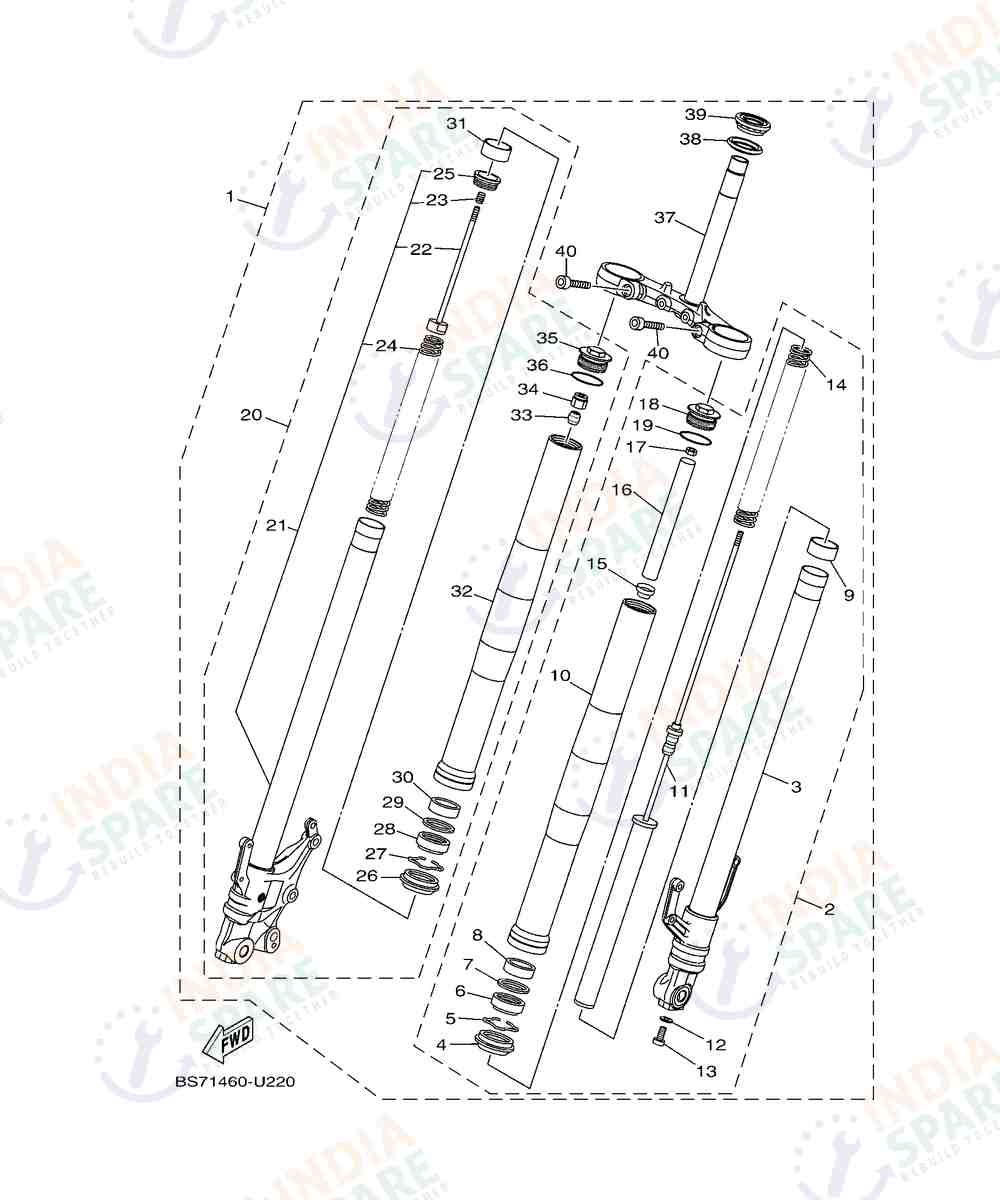

FRONT FORK
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B5LF31001000 | FRONT FORK ASSY | ₹ 68670 | 1 | ||
| 2 | BS7F31021000 | FRONT FORK ASSY (L.H) | ₹ 26918 | 1 | ||
| 3 | BS7F31100000 | INNER TUBE COMP.1 | ₹ 6453 | 1 | ||
| 4 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 5 | 3R4231530000 | RING, SNAP | ₹ 125 | 1 | ||
| 6 | BK6F31450000 | OIL SEAL | ₹ 315 | 1 | ||
| 7 | 31A231493100 | WASHER, SPRING UPPER | ₹ 138 | 1 | ||
| 8 | 31A231253100 | METAL, SLIDE 1 | ₹ 636 | 1 | ||
| 9 | BK6F31710000 | BUSH INNER TUBE | ₹ 370 | 1 | ||
| 10 | B9TF31260000 | TUBE, OUTER (LEFT) | ₹ 6821 | 1 | ||
| 11 | BS7F31700000 | CYLINDER COMP., FRONT FORK | ₹ 7997 | 1 | ||
| 12 | 2BUF31580000 | GASKET | ₹ 18 | 1 | ||
| 13 | 31DF31815000 | BOLT, HEXAGON SOCKET HEAD | ₹ 40 | 1 | ||
| 14 | BS7F31410000 | SPRING, FRONT FORK | ₹ 1100 | 1 | ||
| 15 | BK6F31170000 | GUIDE, SPRING | ₹ 210 | 1 | ||
| 16 | BS7F31180000 | SPACER | ₹ 161 | 1 | ||
| 17 | BK6F33570000 | NUT | ₹ 105 | 1 | ||
| 18 | BS7F31110000 | BOLT, CAP | ₹ 1852 | 1 | ||
| 19 | 4V423188L100 | O-RING | ₹ 165 | 1 | ||
| 20 | B5LF31031000 | FRONT FORK ASSY (R.H) | ₹ 27656 | 1 | ||
| 21 | B5LF31200000 | INNER TUBE COMP.2 | ₹ 9679 | 1 | ||
| 22 | BK6F330G0000 | ROD COMP. | ₹ 1014 | 1 | ||
| 23 | 3AH222220000 | SPRING, SHOCK ABSORBER 2 | ₹ 69 | 1 | ||
| 24 | BS7F31410000 | SPRING, FRONT FORK | ₹ 1100 | 1 | ||
| 25 | BK6F319U0000 | CAP | ₹ 474 | 1 | ||
| 26 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 27 | 3R4231530000 | RING, SNAP | ₹ 125 | 1 | ||
| 28 | BK6F31450000 | OIL SEAL | ₹ 315 | 1 | ||
| 29 | 31A231493100 | WASHER, SPRING UPPER | ₹ 138 | 1 | ||
| 30 | 31A231253100 | METAL, SLIDE 1 | ₹ 636 | 1 | ||
| 31 | BK6F31710000 | BUSH INNER TUBE | ₹ 370 | 1 | ||
| 32 | B9TF31260000 | TUBE, OUTER (LEFT) | ₹ 6821 | 1 | ||
| 33 | BK6F332K0000 | BUMP, STOP | ₹ 140 | 1 | ||
| 34 | BK6F33930000 | NUT, SPECIAL | ₹ 375 | 1 | ||
| 35 | BS7F31110000 | BOLT, CAP | ₹ 1852 | 1 | ||
| 36 | 4V423188L100 | O-RING | ₹ 165 | 1 | ||
| 37 | BS7F33400000 | UNDER BRACKET COMP. | ₹ 6637 | 1 | ||
| 38 | 3FV234620000 | SEAL STEERING | ₹ 519 | 1 | ||
| 39 | 933999993200 | BEARING | ₹ 2269 | 1 | ||
| 40 | 913121004000 | BOLT | ₹ 170 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
