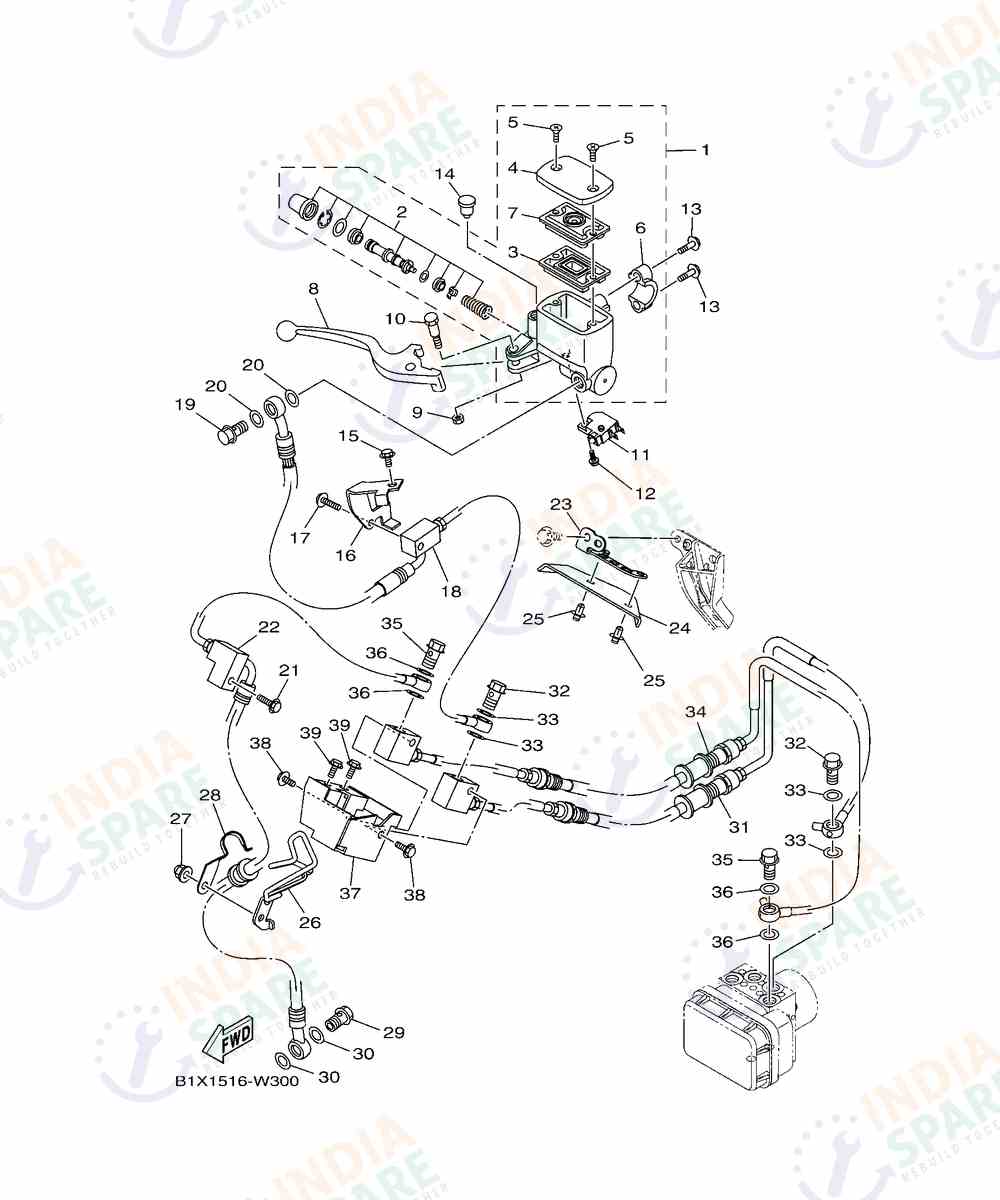

FRONT MASTER CYLINDER
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF58700000 | MASTER CYLINDER SUB ASSY | ₹ 1917 | 1 | ||
| 2 | 1WDF58070000 | CYLINDER SET MAST | ₹ 580 | 1 | ||
| 3 | 5RB258540000 | DIAPHRAGM, RESERVOIR | ₹ 121 | 1 | ||
| 4 | 1WDF58520000 | CAP RESERVOIR | ₹ 119 | 1 | ||
| 5 | 36Y2589H1000 | SCREW | ₹ 10 | 2 | ||
| 6 | 56A258670000 | BRACKET MASTER CYLINDER | ₹ 482 | 1 | ||
| 7 | 3C1F58550000 | BUSH DIAPHRAGM | ₹ 9 | 1 | ||
| 8 | 1WDH39220000 | LEVER 2 | ₹ 299 | 1 | ||
| 9 | 956170610000 | NUT NYLOC | ₹ 76 | 1 | ||
| 10 | 901090657700 | BOLT | ₹ 34 | 1 | ||
| 11 | 2DPH39800100 | FRONT STOP SWITCH ASSY | ₹ 304 | 1 | ||
| 12 | 976020421200 | SCREW, PAN HEAD WI | ₹ 12 | 1 | ||
| 13 | 950220602500 | BOLT FLANGE | ₹ 11 | 2 | ||
| 14 | 903380980300 | PLUG | ₹ 4 | 1 | ||
| 15 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 16 | 2WDF588F0000 | HOLDER BRAKE HOSE 5 | ₹ 122 | 1 | ||
| 17 | 950220602000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 18 | B5LF58720000 | HOSE, BRAKE 1 | ₹ 4175 | 1 | ||
| 19 | 904011081200 | BOLT, UNION | ₹ 32 | 1 | ||
| 20 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 21 | 950220602000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 22 | B1XF581J0000 | HOSE, BRAKE 4 | ₹ 4575 | 1 | ||
| 23 | B5LF612E0000 | BRACKET | ₹ 184 | 1 | ||
| 24 | BS7F38180000 | COVER, STEERING | ₹ 92 | 1 | ||
| 25 | 902690681600 | RIVET | ₹ 12 | 2 | ||
| 26 | B6WF58870000 | HOLDER, BRAKE HOSE | ₹ 829 | 1 | ||
| 27 | 901760606500 | NUT, CROWN | ₹ 7000 | 1 | ||
| 28 | B5LF587A0000 | HOLDER, BREAK HOSE | ₹ 188 | 1 | ||
| 29 | 904011081200 | BOLT, UNION | ₹ 32 | 1 | ||
| 30 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 31 | 2WDF58730100 | HOSE, BRAKE 2 | ₹ 3600 | 1 | ||
| 32 | 904011081200 | BOLT, UNION | ₹ 32 | 2 | ||
| 33 | 902011011800 | WASHER PLAIN | ₹ 5 | 4 | ||
| 34 | B5LF58740000 | HOSE, BRAKE | ₹ 3500 | 1 | ||
| 35 | 904011081200 | BOLT, UNION | ₹ 32 | 2 | ||
| 36 | 902011011800 | WASHER PLAIN | ₹ 5 | 4 | ||
| 37 | 2WDF588G0100 | HOLDER, BRAKE HOSE 6 | ₹ 442 | 1 | ||
| 38 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 39 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
