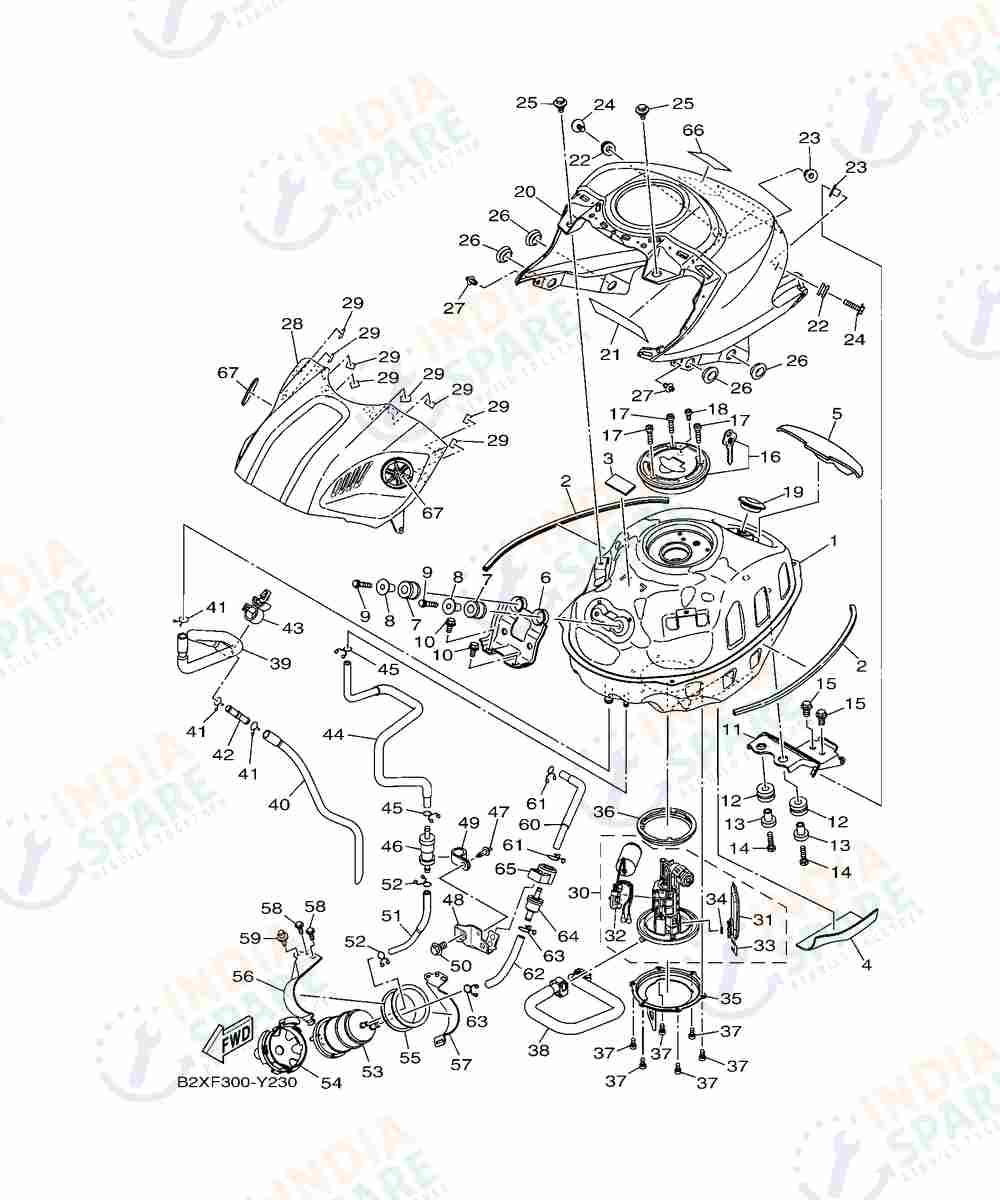

FUEL TANK
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BS7F41100000 | FUEL TANK COMP. | ₹ 6572 | 1 | ||
| 2 | BS7F41880000 | MOLD, FUEL TANK | ₹ 150 | 2 | ||
| 3 | 5D9H21260000 | PAD, BATTERY | ₹ 9 | 1 | ||
| 4 | 905200284300 | DAMPER PLATE | ₹ 40 | 1 | ||
| 5 | BS7F414E0000 | SEAL 2 | ₹ 325 | 1 | ||
| 6 | BS7F412Y0000 | BRKT., TANK FITTING FR. | ₹ 483 | 1 | ||
| 7 | 904801881300 | GROMMET | ₹ 18 | 2 | ||
| 8 | 90387068M300 | COLLAR | ₹ 12 | 2 | ||
| 9 | 970170603000 | BOLT HEXAGON | ₹ 35 | 2 | ||
| 10 | 958070601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 11 | BS7F41911000 | BRACKET, FUEL TANK 1 | ₹ 645 | 1 | ||
| 12 | 904801580700 | GROMMET | ₹ 33 | 2 | ||
| 13 | 90387068S800 | COLLAR | ₹ 46 | 2 | ||
| 14 | 970170603000 | BOLT HEXAGON | ₹ 35 | 2 | ||
| 15 | 950220801400 | BOLT, FLANGE | ₹ 30 | 2 | ||
| 16 | BS7WF4610000 | CAP FUEL TANK | ₹ 3800 | 1 | ||
| 17 | 901100580600 | BOLT HEXAGON SOCKET HEAD | ₹ 12 | 3 | ||
| 18 | 913120501000 | BOLT | ₹ 8 | 1 | ||
| 19 | 904800180600 | GROMMET | ₹ 40 | 1 | ||
| 20A | BS7F41B100P0 | COVER, TANK | ₹ 2765 | 1 | FOR DPBMC | |
| 20B | BS7F41B100P4 | COVER, TANK | ₹ 2765 | 1 | FOR SM12 | |
| 21 | 905200384100 | DAMPER PLATE | ₹ 36 | 1 | ||
| 22 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 23 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 24 | 901190630900 | BOLT, WITH WASHER | ₹ 145 | 2 | ||
| 25 | 90109068B200 | BOLT | ₹ 13 | 2 | ||
| 26 | 904800155900 | GROMMET | ₹ 10 | 4 | ||
| 27 | 902690681600 | RIVET | ₹ 12 | 2 | ||
| 28A | BS7F171A01P0 | COVER, TOP | ₹ 1428 | 1 | FOR DPBMC | |
| 28B | BS7F171A01P4 | COVER, TOP | ₹ 1226 | 1 | FOR SM12 | |
| 29 | 31BF83070000 | SEAL | ₹ 20 | 8 | ||
| 30 | BS7E39070100 | FUEL PUMP COMP. | ₹ 10306 | 1 | ||
| 31 | 3C1E39150000 | FILTER | ₹ 330 | 1 | ||
| 32 | BS7H57520000 | SENDER UNIT ASSY, FUEL METER | ₹ 825 | 1 | ||
| 33 | 3C1F45190000 | CLIP | ₹ 100 | 1 | ||
| 34 | 3C1245120000 | GASKET | ₹ 220 | 1 | ||
| 35 | BS7F44910000 | BRACKET, FUEL PUMP | ₹ 368 | 1 | ||
| 36 | 3C1F44860000 | O-RING | ₹ 431 | 1 | ||
| 37 | 913120501000 | BOLT | ₹ 8 | 6 | ||
| 38 | 1WDE39710200 | PIPE, FUEL 1 | ₹ 2600 | 1 | ||
| 39 | 1WDF43120100 | PIPE 2 | ₹ 500 | 1 | ||
| 40 | B9TF43140000 | PIPE 4 | ₹ 470 | 1 | ||
| 41 | 904671501200 | CLIP | ₹ 5 | 3 | ||
| 42 | 1WDF43760000 | PIPE JOINT 1 | ₹ 240 | 1 | ||
| 43 | 904641601200 | CLAMP | ₹ 127 | 1 | ||
| 44 | 2MSF43140100 | PIPE 4 | ₹ 717 | 1 | ||
| 45 | 904670900600 | CLIP | ₹ 5 | 2 | ||
| 46 | 1DWF41800200 | ROLL OVER VALVE ASSY | ₹ 580 | 1 | ||
| 47 | 902690500800 | RIVET | ₹ 66 | 1 | ||
| 48 | B1XF419F0000 | BRACKET, CANISTOR | ₹ 207 | 1 | ||
| 49 | 904641501400 | CLAMP | ₹ 0 | 1 | ||
| 50 | 950270801200 | BOLT FLANGE | ₹ 25 | 1 | ||
| 51 | 2MSF43150000 | PIPE 5 | ₹ 220 | 1 | ||
| 52 | 904670900600 | CLIP | ₹ 5 | 2 | ||
| 53 | 2MSF41700000 | CANISTER ASSY | ₹ 810 | 1 | ||
| 54 | B1XF419E0000 | COVER, CANISTER | ₹ 308 | 1 | ||
| 55 | 2MSF483H0000 | BAND | ₹ 61 | 1 | ||
| 56 | 2MSF115R0000 | BRACKET CANISTER | ₹ 308 | 1 | ||
| 57 | 2MSF134X0000 | BRACKET CANISTER | ₹ 258 | 1 | ||
| 58 | 950270601600 | BOLT FLANGE | ₹ 5 | 2 | ||
| 59 | 902690681600 | RIVET | ₹ 12 | 1 | ||
| 60 | B1XF43160000 | PIPE 6 | ₹ 660 | 1 | ||
| 61 | 904670900600 | CLIP | ₹ 5 | 2 | ||
| 62 | B1XF43170000 | PIPE 7 | ₹ 430 | 1 | ||
| 63 | 904671100900 | CLIP | ₹ 37 | 2 | ||
| 64 | B1XF44210000 | VALVE, CHECK | ₹ 1055 | 1 | ||
| 65 | B1XF419A0000 | HOLDER | ₹ 70 | 1 | ||
| 66 | B74F15680000 | LABEL, WARNING | ₹ 180 | 1 | ||
| 67 | 1WDF413B0100 | TUNING FORK MARK | ₹ 532 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
