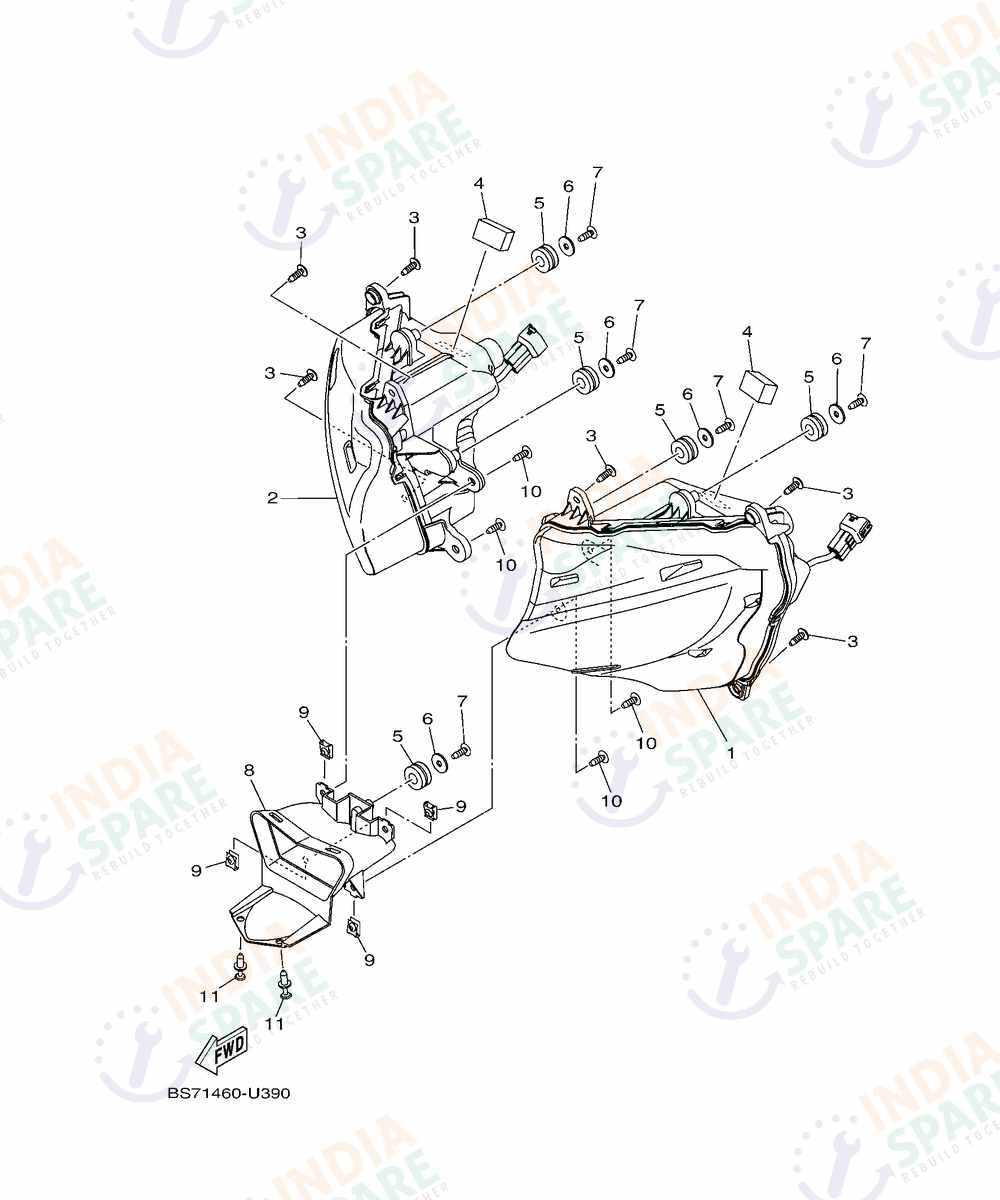

HEADLIGHT
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BS7H43000000 | HEADLIGHT ASSY | ₹ 11500 | 1 | ||
| 2 | BS7H43001000 | HEADLIGHT ASSY | ₹ 11940 | 1 | ||
| 3 | 977025001600 | SCREW TAPPING | ₹ 10 | 6 | ||
| 4 | 905202082500 | DAMPER PLATE | ₹ 36 | 2 | ||
| 5 | 904801422900 | GROMMET | ₹ 9 | 5 | ||
| 6 | 902010503600 | WASHER | ₹ 2 | 5 | ||
| 7 | 977025001600 | SCREW TAPPING | ₹ 10 | 5 | ||
| 8 | BS7F838N0000 | DUCT 1 | ₹ 331 | 1 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 10 | 4 | ||
| 10 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 11 | 902690500500 | RIVET | ₹ 49 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
