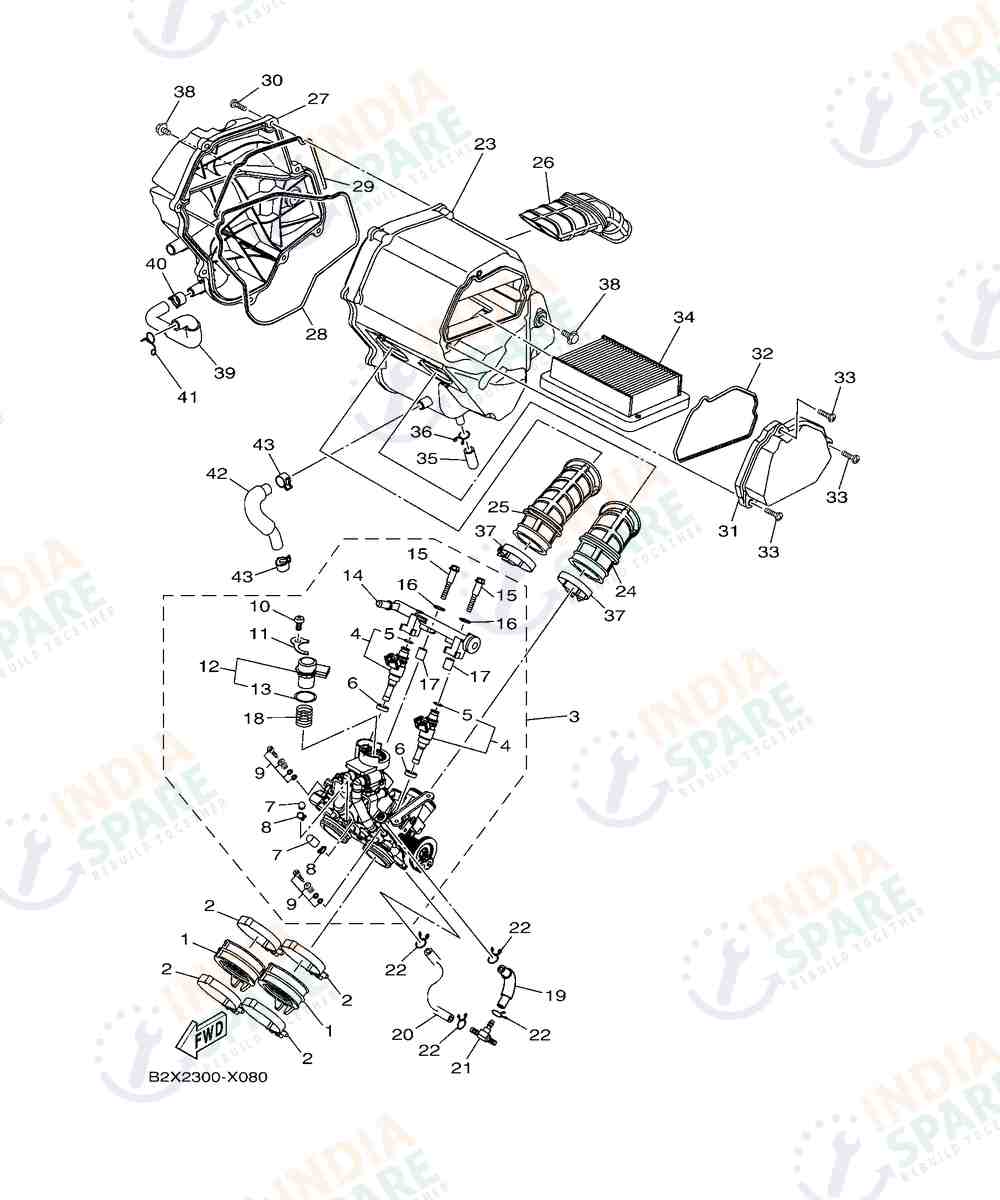

INTAKE
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B1XE36350000 | JOINT, INTAKE 1 | ₹ 295 | 2 | ||
| 2 | 904505280100 | HOSE CLAMP ASSY | ₹ 280 | 4 | ||
| 3 | B2XE37500100 | THROTTLE BODY ASSY | ₹ 21940 | 1 | ||
| 4 | 1WDE37610000 | INJECTOR ASSY | ₹ 2032 | 2 | ||
| 5 | 5PS141470000 | O-RING | ₹ 490 | 1 | ||
| 6 | 1WDE35560000 | GASKET MANIFOLD | ₹ 249 | 2 | ||
| 7 | 895141690000 | CAP | ₹ 46 | 2 | ||
| 8 | 8A7141390000 | CLIP PIPE | ₹ 41 | 2 | ||
| 9 | 5JW141040000 | AIR SCREW SET | ₹ 356 | 2 | ||
| 10 | 985020601200 | SCREW PAN HEAD | ₹ 17 | 1 | ||
| 11 | 1WDE42430000 | PLATE | ₹ 96 | 1 | ||
| 12 | 1WS858010100 | STEPPING MOTOR | ₹ 2500 | 1 | ||
| 13 | 54PE416A0000 | O-RING | ₹ 40 | 1 | ||
| 14 | 1WDE39380000 | PIPE | ₹ 1862 | 1 | ||
| 15 | 1WDE35730000 | BOLT 1 | ₹ 45 | 2 | ||
| 16 | 8GL135710000 | WASHER | ₹ 120 | 2 | ||
| 17 | 8HG145340000 | COLLAR | ₹ 295 | 2 | ||
| 18 | 1WS143350000 | SPRING PLUNGER | ₹ 150 | 1 | ||
| 19 | B1XE44650000 | PIPE | ₹ 420 | 1 | ||
| 20 | 2MSE44660000 | PIPE | ₹ 295 | 1 | ||
| 21 | 904130603100 | WAY 3 | ₹ 0 | 1 | ||
| 22 | 904670900600 | CLIP | ₹ 5 | 4 | ||
| 23 | BR5E44110000 | CASE, AIR CLEANER 1 | ₹ 890 | 1 | ||
| 24 | B2XE44690000 | FUNNEL, AIR | ₹ 690 | 1 | ||
| 25 | B2XE446C0000 | FUNNEL 2 | ₹ 600 | 1 | ||
| 26 | BR5E44370000 | DUCT | ₹ 414 | 1 | ||
| 27 | B2XE44120000 | CAP, CLEANER CASE 1 | ₹ 800 | 1 | ||
| 28 | 1WDE44520000 | SEAL | ₹ 53 | 1 | ||
| 29 | 1WDE44570000 | SEAL | ₹ 21 | 1 | ||
| 30 | 977025002500 | SCREW TAPPING | ₹ 10 | 8 | ||
| 31 | 1WDE44220000 | CAP CLEANER CASE 2 | ₹ 140 | 1 | ||
| 32 | 1WDE44620000 | SEAL | ₹ 35 | 1 | ||
| 33 | 989020502000 | SCREW BIND | ₹ 5 | 3 | ||
| 34 | 1WDE44510000 | ELEMENT AIR CLEANER | ₹ 518 | 1 | ||
| 35 | 52BE443E0000 | PIPE DRAIN | ₹ 22 | 1 | ||
| 36 | 90467110A300 | CLIP | ₹ 12 | 1 | ||
| 37 | 54PE34740000 | BAND | ₹ 50 | 2 | ||
| 38 | 95D320601000 | BOLT FLANGE DEEP | ₹ 13 | 2 | ||
| 39 | B1XE35430000 | HOSE, AIR | ₹ 225 | 1 | ||
| 40 | 904671380200 | CLIP | ₹ 5 | 1 | ||
| 41 | 904671205200 | CLIP | ₹ 80 | 1 | ||
| 42 | 2MSE53730200 | PIPE, BREATHER | ₹ 150 | 1 | ||
| 43 | 904671380200 | CLIP | ₹ 5 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
