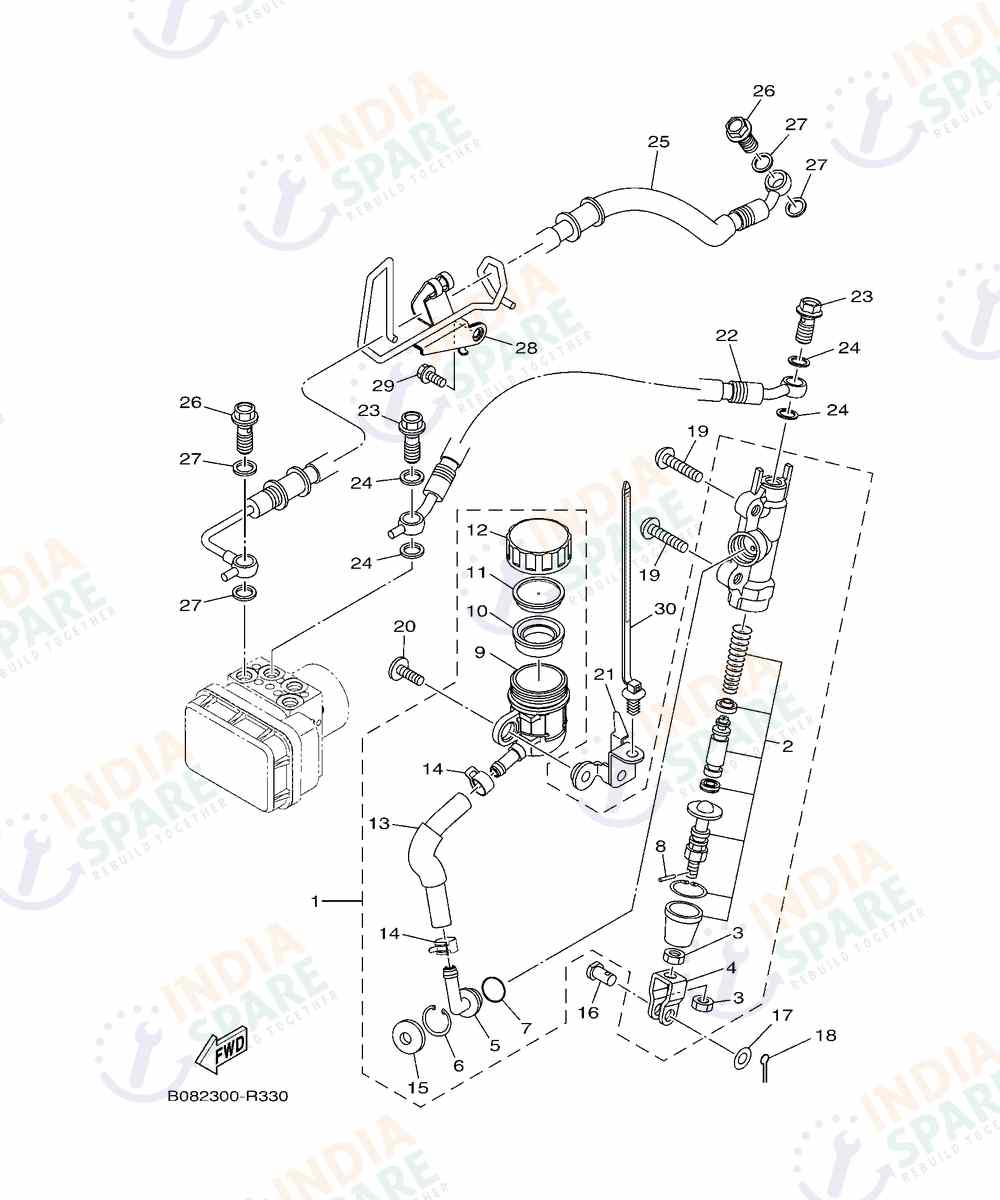

REAR MASTER CYLINDER
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF580E0000 | REAR MASTER CYLINDER ASSY | ₹ 2074 | 1 | ||
| 2 | 1WDF58080000 | CYLINDER SET MAST | ₹ 488 | 1 | ||
| 3 | 953170870000 | NUT HEX SMALL | ₹ 21 | 2 | ||
| 4 | 50CF72220000 | JOINT | ₹ 73 | 1 | ||
| 5 | 50CF582A5000 | JOINT | ₹ 82 | 1 | ||
| 6 | 50CF58660000 | CIRCLIP | ₹ 27 | 1 | ||
| 7 | 932101562000 | O-RING | ₹ 16 | 1 | ||
| 8 | 3KW272340000 | PIN, BRAKE ROD | ₹ 60 | 1 | ||
| 9 | 50CF58941100 | TANK RESERVOIR | ₹ 225 | 1 | ||
| 10 | 2VNF58540000 | DIAPHRAGM, RESERVOIR | ₹ 75 | 1 | ||
| 11 | 50CF58550000 | BUSH DIAPHRAGM | ₹ 34 | 1 | ||
| 12 | 1WDF58525000 | CAP RESERVOIR | ₹ 92 | 1 | ||
| 13 | 1WDF58955000 | HOSE, RESERVOIR | ₹ 565 | 1 | ||
| 14 | 904671208500 | CLIP | ₹ 13 | 2 | ||
| 15 | 50CF589A0000 | COVER DUST | ₹ 110 | 1 | ||
| 16 | 902400812400 | PIN CLEVIS | ₹ 6 | 1 | ||
| 17 | 902010808300 | WASHER PLATE | ₹ 32 | 1 | ||
| 18 | 902521880000 | PIN SPLIT | ₹ 1 | 1 | ||
| 19 | 920120803000 | BOLT BUTTON HEAD | ₹ 31 | 2 | ||
| 20 | 901110612100 | BOLT HEX. SOCKET BUTTON | ₹ 63 | 1 | ||
| 21 | B04F582E0000 | B04F582E0000 | ₹ 0 | 1 | ||
| 22 | 2WDF581K0000 | HOSE BRAKE 5 | ₹ 665 | 1 | ||
| 23 | 904011081200 | BOLT, UNION | ₹ 32 | 2 | ||
| 24 | 902011011800 | WASHER PLAIN | ₹ 5 | 4 | ||
| 25 | 2WDF582J0000 | HOSE BRAKE 6 | ₹ 1534 | 1 | ||
| 26 | 904011081200 | BOLT, UNION | ₹ 32 | 2 | ||
| 27 | 902011011800 | WASHER PLAIN | ₹ 5 | 4 | ||
| 28 | 2WDF58870000 | HOLDER BRAKE HOSE | ₹ 287 | 1 | ||
| 29 | 95D370601400 | BOLT, FLANGE | ₹ 0 | 1 | ||
| 30 | 904643000900 | CLAMP | ₹ 130 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
