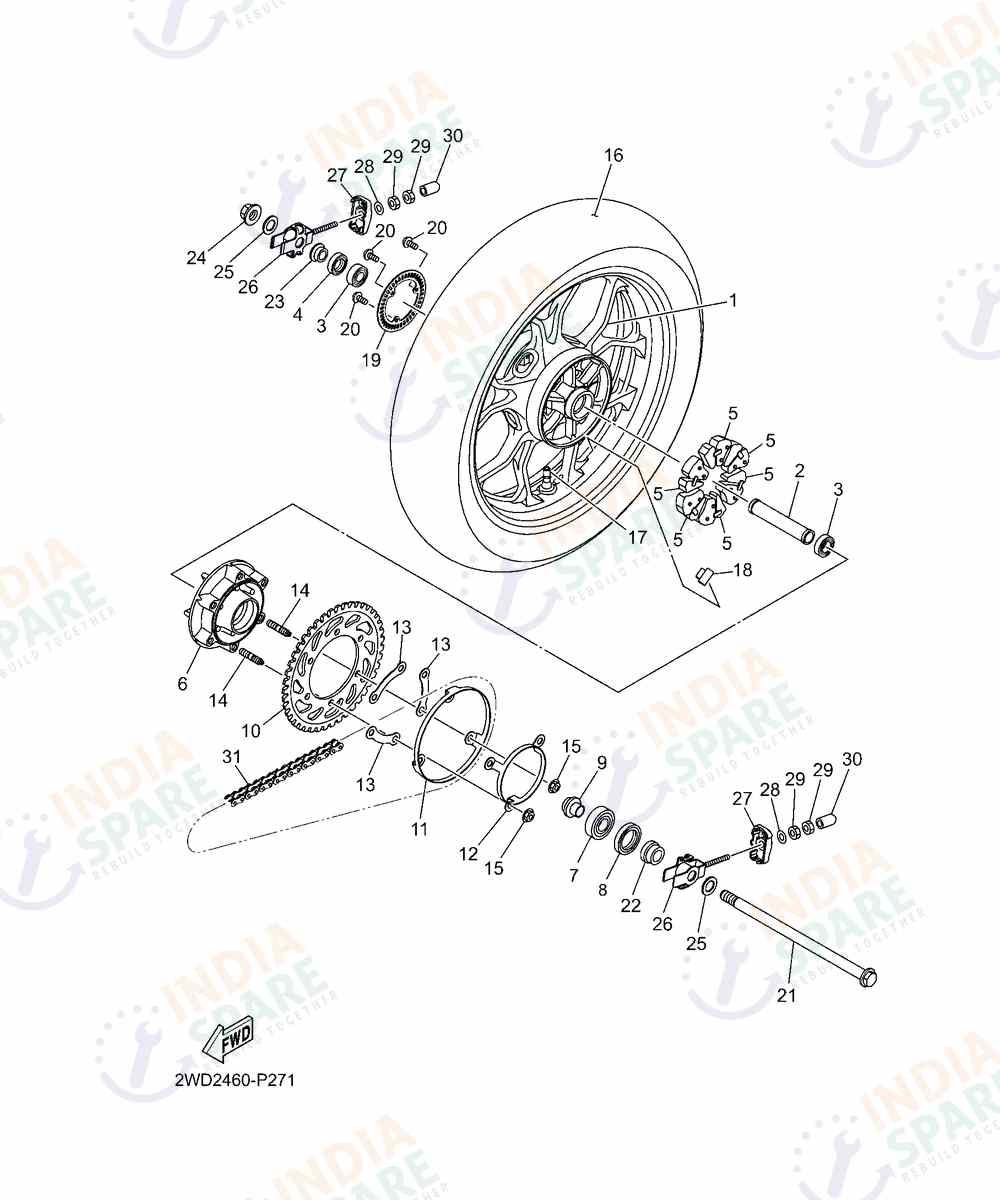

REAR WHEEL
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BS7F533810P0 | CAST WHEEL, REAR | ₹ 25259 | 1 | DPBM15 FOR DPBMC | |
| 1B | BS7F53381098 | CAST WHEEL, REAR | ₹ 25167 | 1 | LGB FOR SM12 | |
| 2 | 903871781000 | COLLAR | ₹ 279 | 1 | ||
| 3 | 933062031400 | BEARING | ₹ 964 | 2 | ||
| 4 | 931062300200 | OIL SEAL | ₹ 163 | 1 | ||
| 5 | 1WDF53640000 | DAMPER | ₹ 70 | 6 | ||
| 6A | 1WDF536601P0 | CLUTCH, HUB | ₹ 2120 | 1 | FOR DPBMC | |
| 6B | 1WDF53660198 | CLUTCH, HUB | ₹ 1571 | 1 | LGB FOR SM12 | |
| 7 | 933063045000 | BEARING | ₹ 2338 | 1 | ||
| 8 | 931063804600 | OIL SEAL | ₹ 398 | 1 | ||
| 9 | 1WDF53770000 | COLLAR WHEEL | ₹ 119 | 1 | ||
| 10 | 1WDF54430000 | 1WDF54430000 | ₹ 0 | 1 | ||
| 11 | 1WDF537W0000 | BRACKET 1 | ₹ 940 | 1 | ||
| 12 | 1WDF537X0000 | BRKT 2 | ₹ 866 | 1 | ||
| 13 | 1WDF539F0000 | PLATE 1 | ₹ 23 | 3 | ||
| 14 | 901161006500 | BOLT, STUD | ₹ 170 | 6 | ||
| 15 | 956021020000 | NUT U FLANGE | ₹ 32 | 6 | ||
| 16 | 941141781400 | 0 | ₹ 0 | 1 | DUNLOP | |
| 17 | 939000082800 | VALVE RIM (TR412) | ₹ 200 | 1 | ||
| 18A | 5MT253980000 | BALANCER WHEEL | ₹ 138 | 1 | UN | |
| 18B | 5MT253981000 | BALANCER WHEEL(10G) | ₹ 147 | 1 | UN | |
| 18C | 5MT253982000 | BALANCER WHEEL(30G) | ₹ 156 | 1 | UN | |
| 19 | 2DPF517G0000 | ROTOR SENSOR | ₹ 296 | 1 | ||
| 20 | 901490503000 | SCREW | ₹ 21 | 3 | ||
| 21 | 1WD253810000 | AXLE WHEEL | ₹ 1244 | 1 | ||
| 22 | 1WDF53860100 | COLLAR, SPROCKET AXLE | ₹ 276 | 1 | ||
| 23 | 1WDF53830100 | COLLAR, WHEEL | ₹ 142 | 1 | ||
| 24 | 956021620000 | NUT U FLANGE | ₹ 299 | 1 | ||
| 25 | 902011780900 | WASHER PLATE | ₹ 16 | 2 | ||
| 26 | 1WDF53880000 | PULLER CHAIN 1 | ₹ 175 | 2 | ||
| 27 | 1WDF21740000 | END 1 | ₹ 119 | 2 | ||
| 28 | 929070860000 | WASHER | ₹ 8 | 2 | ||
| 29 | 953020860000 | NUT | ₹ 3 | 4 | ||
| 30 | 40DE443G0000 | PIPE DRAIN 2 | ₹ 20 | 2 | ||
| 31 | 94A402711200 | SET, CHAIN | ₹ 8600 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
