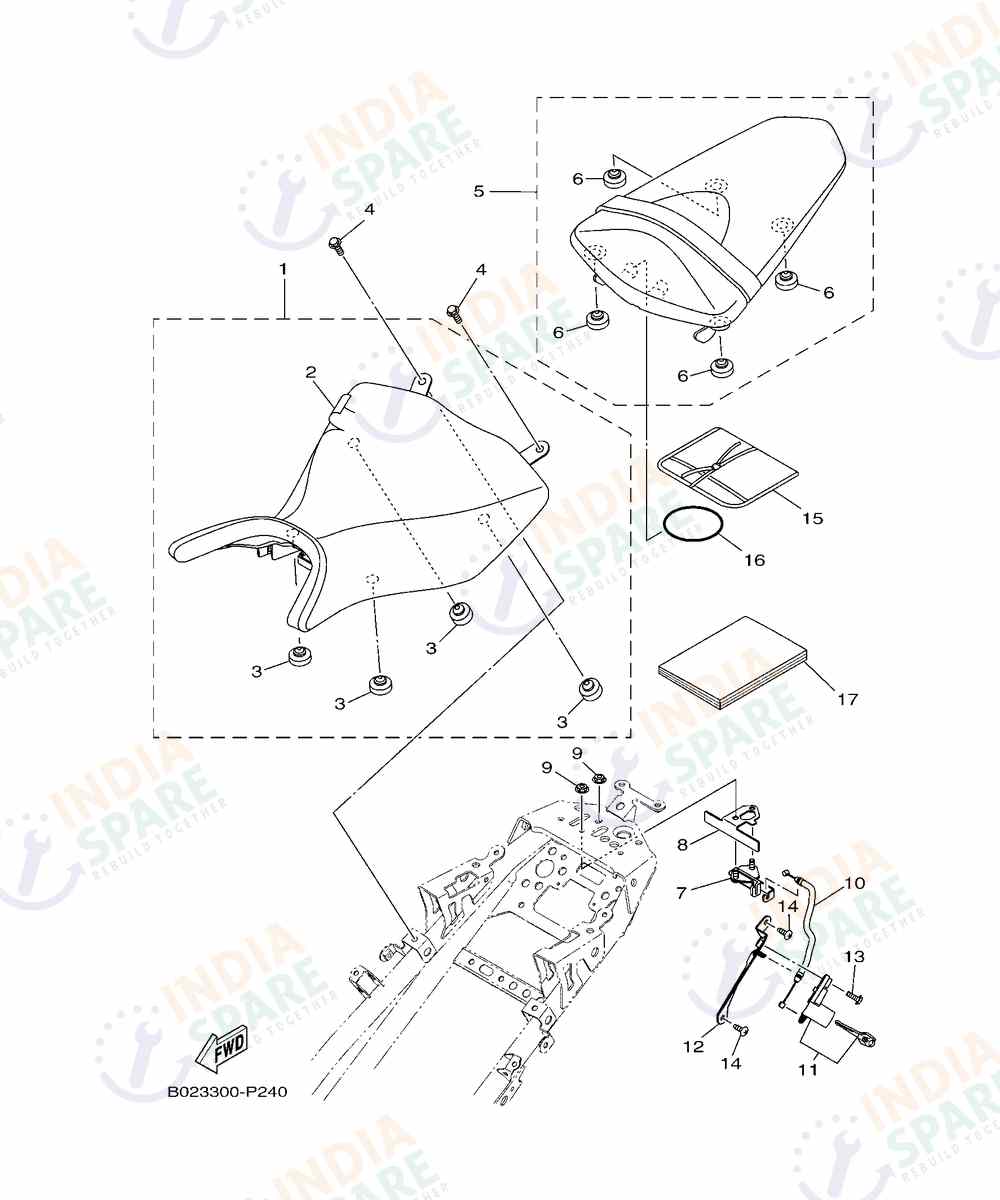

SEAT
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF47100300 | SINGLE SEAT ASSY | ₹ 1820 | 1 | ||
| 2 | 1WDF47110100 | COVER, SINGLE SEAT | ₹ 396 | 1 | ||
| 3 | 5BPF47410000 | PAD, SEAT | ₹ 20 | 4 | ||
| 4 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 5 | 1WDF47500100 | TANDEM SEAT ASSY | ₹ 1897 | 1 | ||
| 6 | 3C1F47410000 | PAD, SEAT | ₹ 28 | 4 | ||
| 7 | 1WDF47800000 | SEAT LOCK ASSY | ₹ 240 | 1 | ||
| 8 | 1WDF47920000 | PLATE | ₹ 82 | 1 | ||
| 9 | 957070650000 | NUT FLANGE | ₹ 5 | 2 | ||
| 10 | 1WDF478E0000 | CABLE SEAT LOCK | ₹ 142 | 1 | ||
| 11 | 1WDWF4790000 | ROTOR SUB ASSY WIT | ₹ 691 | 1 | ||
| 12 | 1WDF117K0000 | STAY LOCK | ₹ 64 | 1 | ||
| 13 | 901590605400 | SCREW WITH WASHER | ₹ 5 | 1 | ||
| 14 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 15 | B9TF81000000 | TOOL SET | ₹ 725 | 1 | ||
| 16 | 5TLH21310000 | BAND, BATTERY | ₹ 20 | 1 | ||
| 17A | B2XF8199E000 | 0 | ₹ 0 | 1 | ENGLISH | |
| 17B | B2XF8199F000 | 0 | ₹ 0 | 1 | FRENCH | |
| 17C | B2XF8199G000 | 0 | ₹ 0 | 1 | GERMAN | |
| 17D | B2XF8199H000 | 0 | ₹ 0 | 1 | ITALIAN | |
| 17E | B2XF8199S000 | 0 | ₹ 0 | 1 | SPANISH | |
| 17F | B2XF819DD000 | 0 | ₹ 0 | 1 | DUTCH | |
| 17G | B2XF819DM000 | 0 | ₹ 0 | 1 | SWEDISH | |
| 17H | B2XF819DP000 | 0 | ₹ 0 | 1 | PORTUGUESE |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
