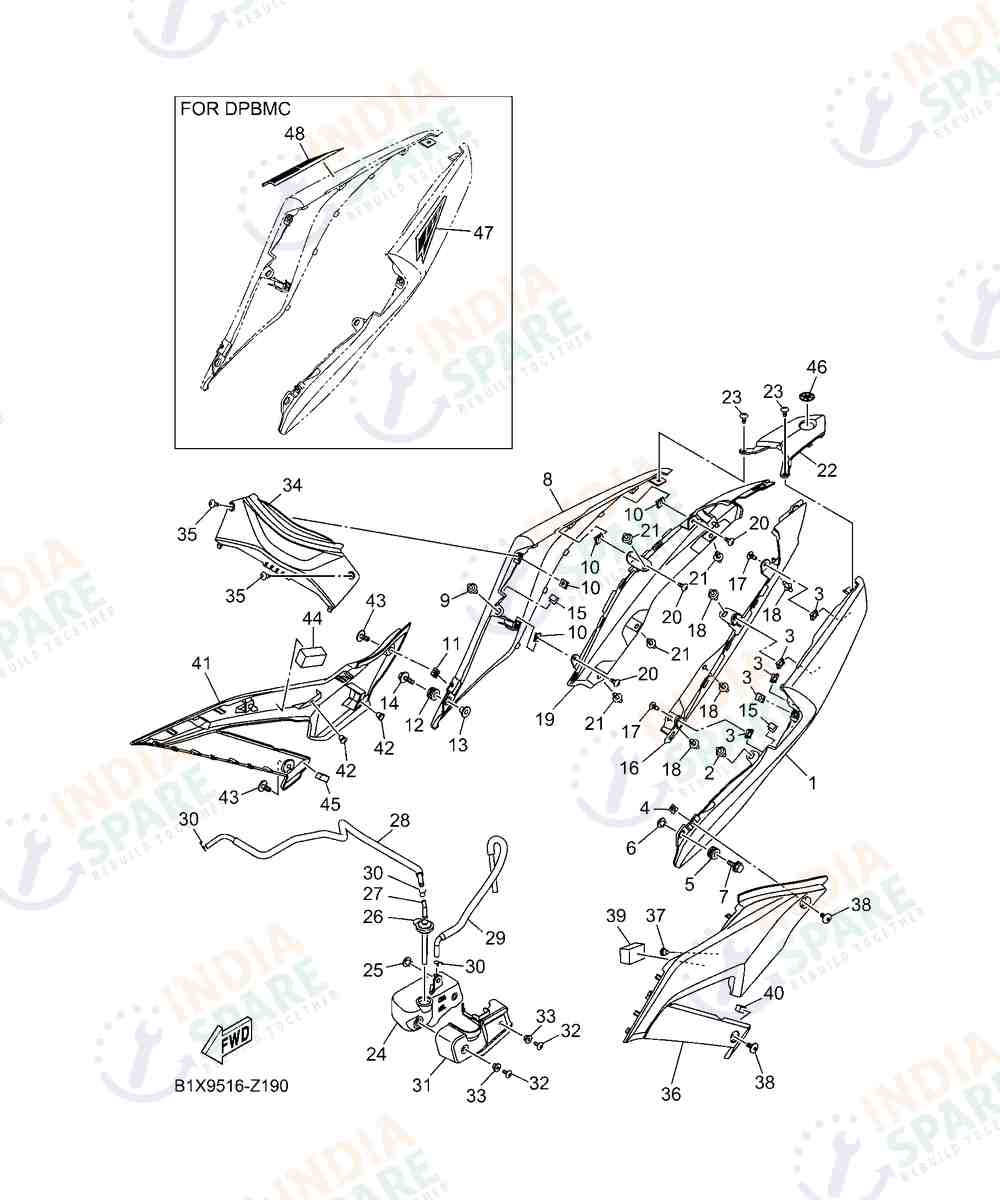

SIDE COVER
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | 1WDF171100P1 | COVER, SIDE 1 | ₹ 1014 | 1 | FOR DPBMC | |
| 1B | 1WDF171100P8 | COVER, SIDE 1 | ₹ 875 | 1 | FOR SM12 | |
| 2 | 902690681600 | RIVET | ₹ 12 | 1 | ||
| 3 | 901830580700 | NUT SPRING | ₹ 10 | 5 | ||
| 4 | 90183050A700 | NUT SPRING | ₹ 22 | 1 | ||
| 5 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 6 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 7 | 901190609600 | BOLT, WITH WASHER | ₹ 21 | 1 | ||
| 8A | 1WDF172100P1 | COVER, SIDE 2 | ₹ 995 | 1 | FOR DPBMC | |
| 8B | 1WDF172100P8 | COVER, SIDE 2 | ₹ 875 | 1 | FOR SM12 | |
| 9 | 902690681600 | RIVET | ₹ 12 | 1 | ||
| 10 | 901830580700 | NUT SPRING | ₹ 10 | 4 | ||
| 11 | 90183050A700 | NUT SPRING | ₹ 22 | 1 | ||
| 12 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 13 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 14 | 901190609600 | BOLT, WITH WASHER | ₹ 21 | 1 | ||
| 15 | 31BF83070000 | SEAL | ₹ 20 | 2 | ||
| 16 | 1WDF171L0000 | MOLE SIDE COVER 1 | ₹ 73 | 1 | ||
| 17 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 5 | 2 | ||
| 18 | 902690681600 | RIVET | ₹ 12 | 4 | ||
| 19 | 1WDF171M0000 | MOLE SIDE COVER 2 | ₹ 73 | 1 | ||
| 20 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 5 | 3 | ||
| 21 | 902690681600 | RIVET | ₹ 12 | 4 | ||
| 22 | 1WDF171N0000 | MOLE SIDE COVER 3 | ₹ 47 | 1 | ||
| 23 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 5 | 2 | ||
| 24 | 1WDF18710100 | TANK RECOVERY | ₹ 129 | 1 | ||
| 25 | 903870685700 | COLLAR | ₹ 20 | 1 | ||
| 26 | 1WDF18750200 | CAP | ₹ 125 | 1 | ||
| 27 | 3C1F18280000 | ELBOW | ₹ 10 | 1 | ||
| 28 | 1WDF18160200 | PIPE 1 | ₹ 450 | 1 | ||
| 29 | 1WDF18170200 | PIPE 2 | ₹ 220 | 1 | ||
| 30 | 904670800300 | CLIP OIL PIPE | ₹ 8 | 3 | ||
| 31 | BS7F172W0000 | COVER | ₹ 156 | 1 | ||
| 32 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 33 | 905600624400 | SPACER | ₹ 42 | 2 | ||
| 34 | 1WDF173100PA | COVER, SIDE 3 | ₹ 1069 | 1 | MDNM8 | |
| 35 | 901600581000 | SCREW ROUND TAPPING | ₹ 4 | 2 | ||
| 36 | BS7F171E0000 | COVER, SIDE 5 | ₹ 276 | 1 | ||
| 37 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 38 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 39 | 905203080500 | DAMPER PLATE | ₹ 75 | 1 | ||
| 40 | 905201085000 | SEAT PIPE | ₹ 18 | 1 | ||
| 41 | BS7F171X0000 | COVER, SIDE 6 | ₹ 276 | 1 | ||
| 42 | 903380718000 | PLUG | ₹ 84 | 2 | ||
| 43 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 44 | 905203080500 | DAMPER PLATE | ₹ 75 | 1 | ||
| 45 | 905201085000 | SEAT PIPE | ₹ 18 | 1 | ||
| 46 | 1PAF836B2000 | 0 | ₹ 0 | 1 | ||
| 47 | B5LF173E2000 | GRAPHIC 1 | ₹ 150 | 1 | FOR DPBMC | |
| 48 | B5LF173F2000 | GRAPHIC 2 | ₹ 150 | 1 | FOR DPBMC |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
