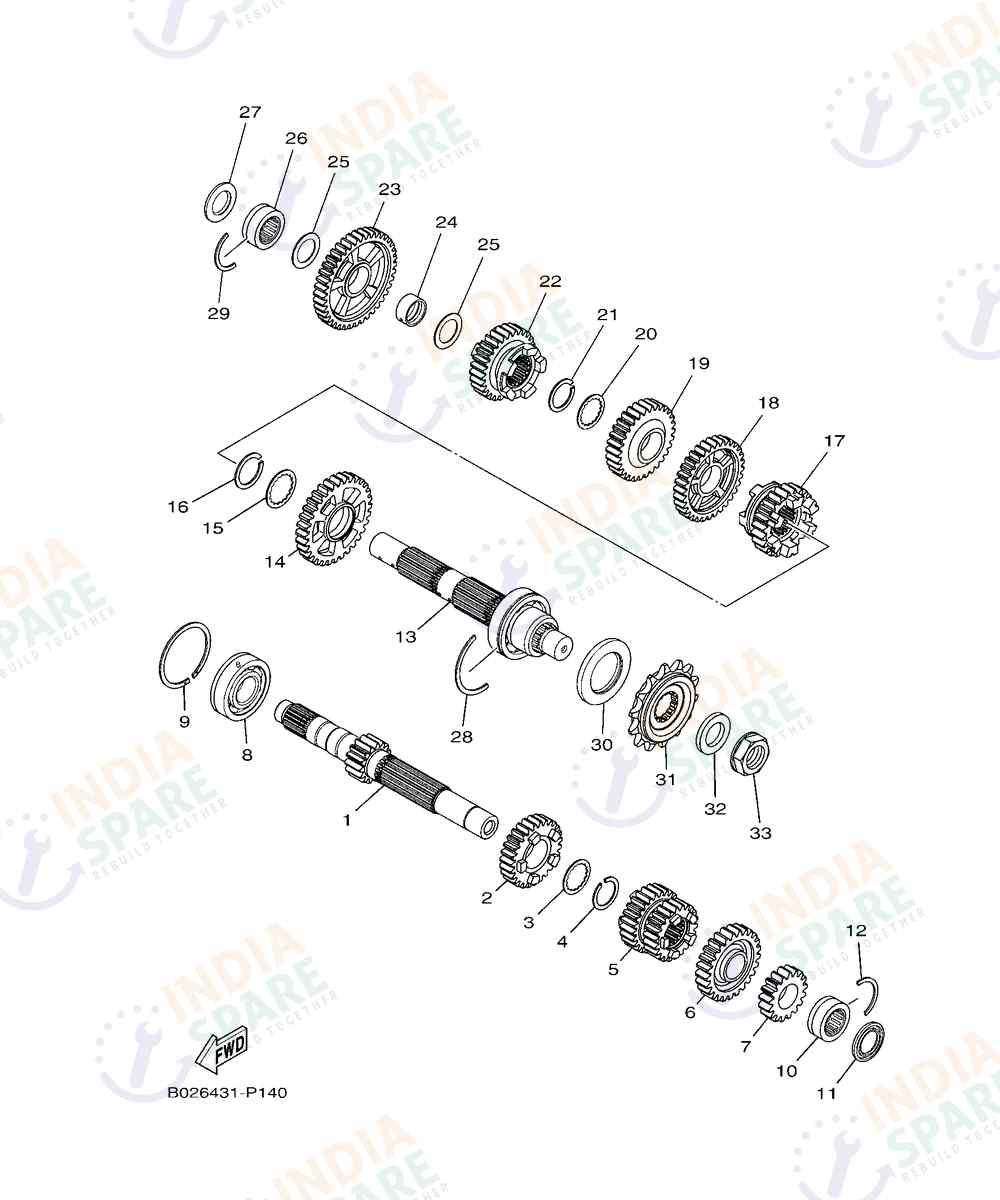

TRANSMISSION
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | 2MSE74110100 | AXLE, MAIN | ₹ 5005 | 1 | ||
| 1B | 2MSE74110100 | AXLE, MAIN | ₹ 5005 | 1 | ||
| 2 | 2MSE71510100 | GEAR, 5TH PINION | ₹ 6875 | 1 | ||
| 3 | 902142200800 | WASHER, CLAW | ₹ 95 | 1 | ||
| 4 | 934402420000 | CIRCLIP | ₹ 85 | 1 | ||
| 5 | 2MSE71310000 | GEAR 3RD PINION | ₹ 2052 | 1 | ||
| 6 | 2MSE71610100 | GEAR, 6TH PINION | ₹ 2111 | 1 | ||
| 7 | 2MSE71210000 | GEAR 2ND PINION | ₹ 755 | 1 | ||
| 8 | 93306255Y900 | BEARING | ₹ 1180 | 1 | ||
| 9 | 934405200900 | CIRCLIP | ₹ 190 | 1 | ||
| 10 | 93311420Y300 | BEARING | ₹ 582 | 1 | ||
| 11 | 931012080200 | OIL SEAL | ₹ 105 | 1 | ||
| 12 | 278174250000 | CIRCLIP 2 | ₹ 65 | 1 | ||
| 13 | 1WDE74020000 | DRIVE AXLE ASSY | ₹ 7066 | 1 | ||
| 14 | 2MSE72210000 | GEAR 2ND WHEEL | ₹ 1770 | 1 | ||
| 15 | 902092501100 | WASHER | ₹ 60 | 1 | ||
| 16 | 934402818400 | CIRCLIP | ₹ 105 | 1 | ||
| 17 | 2MSE72610000 | GEAR 6TH WHEEL | ₹ 1544 | 1 | ||
| 18 | 2MSE72310000 | GEAR 3RD WHEEL | ₹ 1475 | 1 | ||
| 19 | 2MSE72410000 | GEAR 4TH WHEEL | ₹ 1299 | 1 | ||
| 20 | 902142200800 | WASHER, CLAW | ₹ 95 | 1 | ||
| 21 | 934402420000 | CIRCLIP | ₹ 85 | 1 | ||
| 22 | 2MSE72510000 | GEAR 5TH WHEEL | ₹ 1060 | 1 | ||
| 23 | 2MSE72110000 | GEAR 1ST WHEEL | ₹ 1235 | 1 | ||
| 24 | 903872081400 | COLLAR | ₹ 247 | 1 | ||
| 25 | 902012027600 | WASHER, PLATE | ₹ 85 | 2 | ||
| 26 | 93311420Y300 | BEARING | ₹ 582 | 1 | ||
| 27 | 931012080200 | OIL SEAL | ₹ 105 | 1 | ||
| 28 | 1WD174240000 | CIRCLIP 1 | ₹ 70 | 1 | ||
| 29 | 278174250000 | CIRCLIP 2 | ₹ 65 | 1 | ||
| 30 | 931023580800 | OIL SEAL | ₹ 144 | 1 | ||
| 31 | 1WDE74600000 | 1WDE74600000 | ₹ 0 | 1 | ||
| 32 | 902012002300 | WASHER, PLATE | ₹ 299 | 1 | ||
| 33 | 901792001300 | NUT | ₹ 875 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
