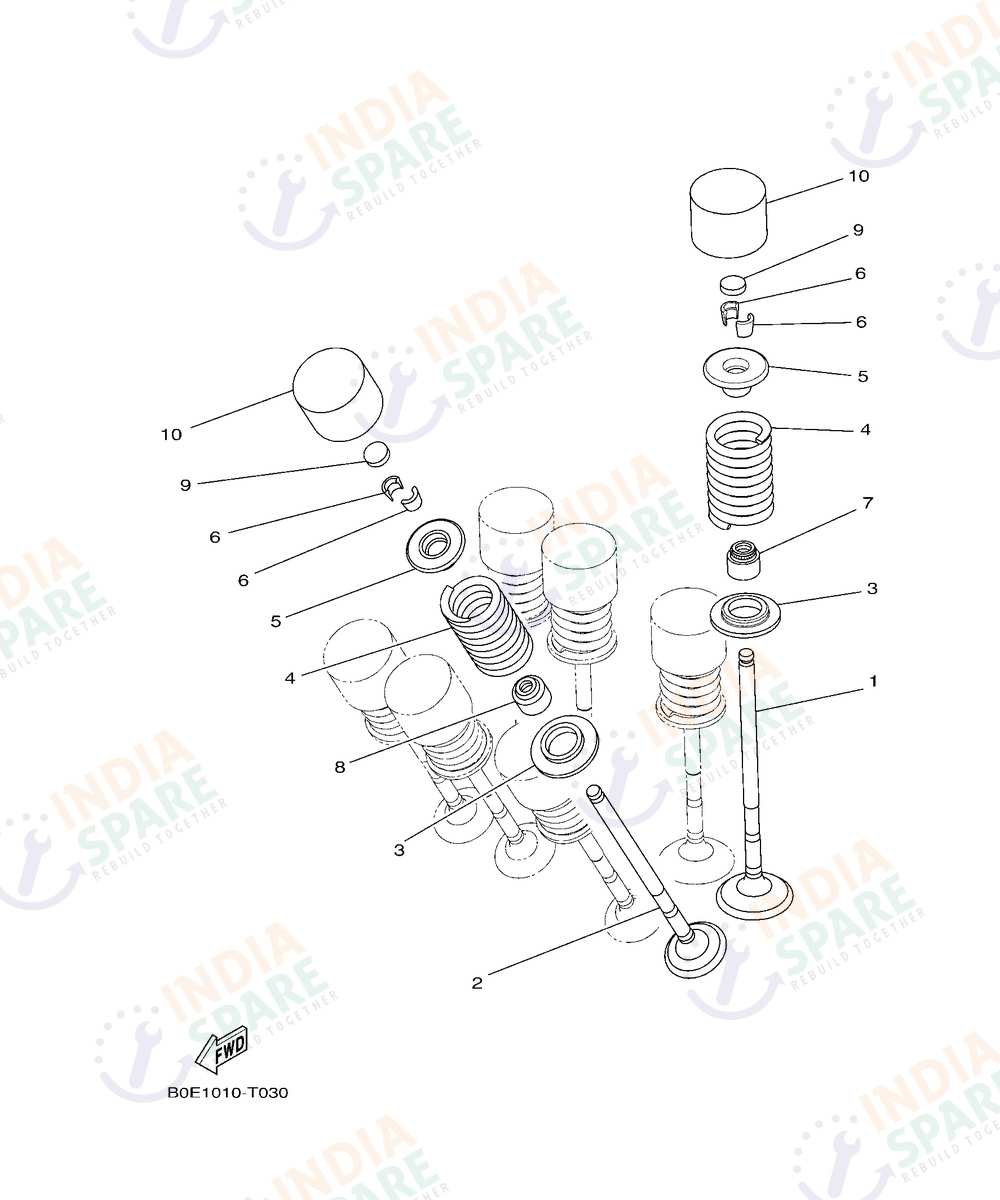

VALVE
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B2XE21110000 | VALVE, INTAKE | ₹ 599 | 4 | ||
| 2 | B2XE21210000 | VALVE, EXHAUST | ₹ 1327 | 4 | ||
| 3 | 2MSE21260000 | SEAT VALVE SPRING 2 | ₹ 101 | 8 | ||
| 4 | BR5E21130000 | SPRING VALVE INNER | ₹ 185 | 8 | ||
| 5 | 2MSE21170000 | RETAINER VALVE SPRING | ₹ 165 | 8 | ||
| 6 | 3S0E21180000 | COTTER VALVE | ₹ 9 | 16 | ||
| 7 | BS8E21190000 | SEAL, VALVE STEM | ₹ 100 | 4 | ||
| 8 | 1PAE21190000 | SEAL VALVE STEM | ₹ 21 | 4 | ||
| 9A | 1HX12168F000 | PAD ADJUSTING 2 (1.50) | ₹ 227 | 8 | ||
| 9B | 1HX12168H100 | PAD ADJUSTING 2 (1.55MM) | ₹ 227 | 8 | ||
| 9C | 1HX12168K100 | PAD ADJUSTING 2 (1.60MM) | ₹ 249 | 8 | ||
| 9D | 1HX12168M100 | PAD ADJUSTING 2 (1.65MM) | ₹ 234 | 8 | ||
| 9E | 1HX12168R100 | PAD ADJUSTING 2 (1.70MM) | ₹ 234 | 8 | ||
| 9F | 1HX12168U100 | PAD ADJUSTING 2 (1.75MM) | ₹ 234 | 8 | ||
| 9G | 1HX12168W100 | PAD ADJUSTING 2 (1.80MM) | ₹ 234 | 8 | ||
| 9H | 1HX12168Y100 | PAD ADJUSTING 2 (1.85) | ₹ 271 | 8 | ||
| 9I | 1HX121691100 | PAD ADJUSTING 2 (1.90MM) | ₹ 271 | 8 | ||
| 9J | 1HX121693100 | PAD ADJUSTING 2 (1.95MM) | ₹ 271 | 8 | ||
| 9K | 1HX121695000 | PAD ADJUSTING 2 (2.00MM) | ₹ 271 | 8 | ||
| 9L | 1HX121697000 | PAD ADJUSTING 2 (2.05MM) | ₹ 327 | 8 | ||
| 9M | 1HX121699000 | PAD ADJUSTING 2 (2.10MM) | ₹ 271 | 8 | ||
| 9N | 1HX12169E000 | PAD ADJUSTING 2 (2.15MM) | ₹ 271 | 8 | ||
| 9O | 1HX12169G000 | PAD ADJUSTING 2 (2.20MM) | ₹ 318 | 8 | ||
| 9P | 1HX12169J000 | PAD ADJUSTING 2 (2.25MM) | ₹ 318 | 8 | ||
| 9Q | 1HX12169L000 | PAD ADJUSTING 2 (2.30MM) | ₹ 318 | 8 | ||
| 9R | 1HX12169N000 | PAD ADJUSTING 2 (2.35MM) | ₹ 364 | 8 | ||
| 9S | 1HX12169T000 | PAD ADJUSTING 2 (2.40MM) | ₹ 327 | 8 | ||
| 10 | 2MSE21531100 | LIFTER VALVE | ₹ 672 | 8 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
