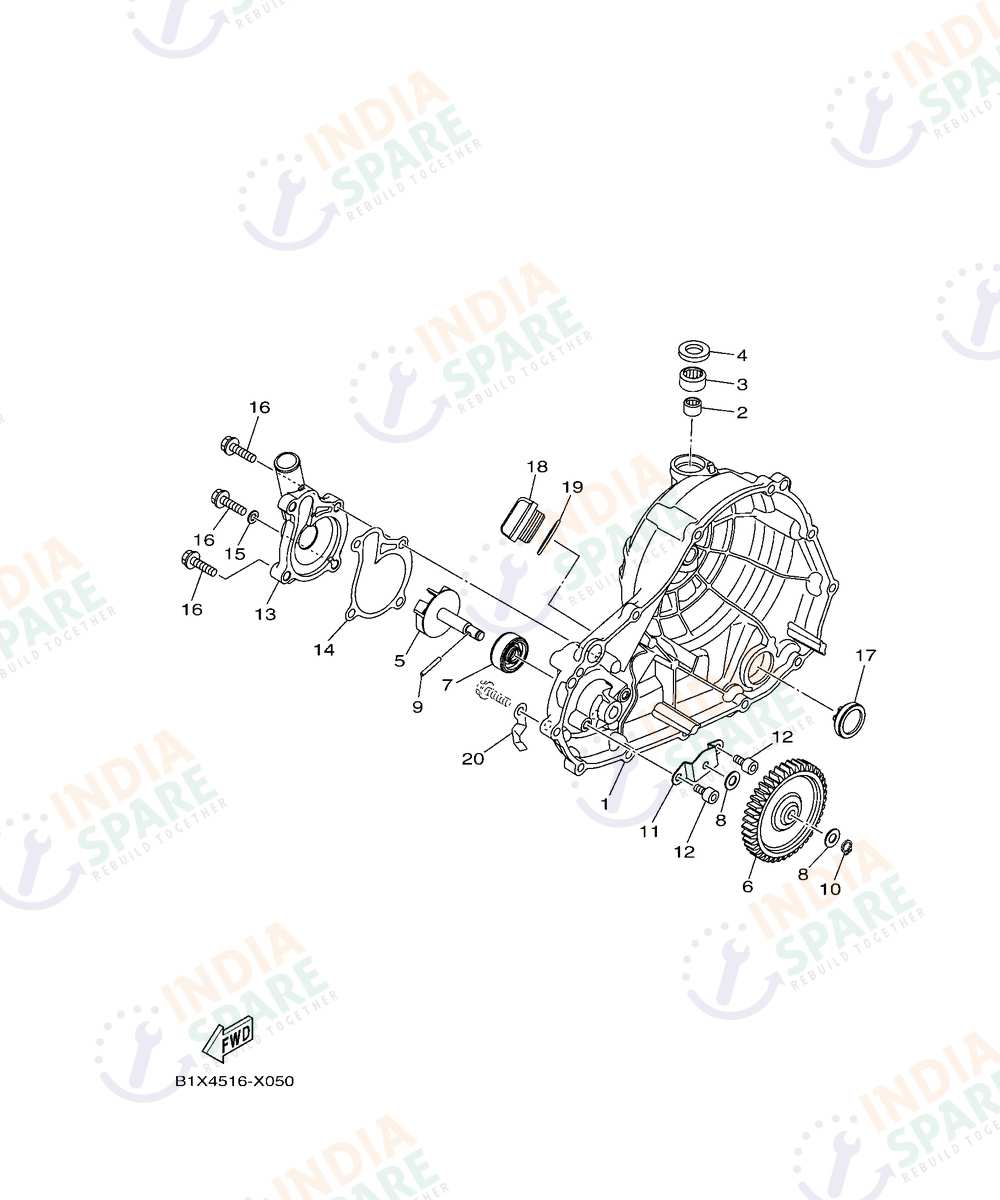

WATER PUMP
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B1XE54210000 | COVER, CRANKCASE 2 | ₹ 5171 | 1 | MBL2 | |
| 2 | 933171109600 | BEARING | ₹ 292 | 1 | ||
| 3 | 933152157000 | BEARING | ₹ 292 | 1 | ||
| 4 | 931021580100 | OIL SEAL | ₹ 30 | 1 | ||
| 5 | 1WDE24500000 | IMPELLER SHAFT ASSY | ₹ 259 | 1 | ||
| 6 | 1WDE24530000 | GEAR | ₹ 540 | 1 | ||
| 7 | 33SE22230000 | SEAL | ₹ 1375 | 1 | ||
| 8 | 33SE24560000 | WASHER | ₹ 25 | 2 | ||
| 9 | 1WDE319L0000 | PIN, STRAIGHT | ₹ 40 | 1 | ||
| 10 | 990090840000 | CIRCLIP | ₹ 25 | 1 | ||
| 11 | 1WDE26810000 | PLATE | ₹ 65 | 1 | ||
| 12 | 913170601000 | BOLT | ₹ 35 | 2 | ||
| 13 | 1WDE24220000 | COVER HOUSING | ₹ 659 | 1 | ||
| 14 | 1WDE24280000 | GASKET HOUSING COVER 2 | ₹ 55 | 1 | ||
| 15 | 904300681700 | GASKET | ₹ 8 | 1 | ||
| 16 | 950220602500 | BOLT FLANGE | ₹ 11 | 3 | ||
| 17 | 2H7153610000 | GAUGE, LEVEL | ₹ 425 | 1 | ||
| 18 | 1WDE53620000 | PLUG OIL LEVEL | ₹ 59 | 1 | ||
| 19 | 932102780700 | O-RING | ₹ 7 | 1 | ||
| 20 | 904620822500 | CLAMP | ₹ 111 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
