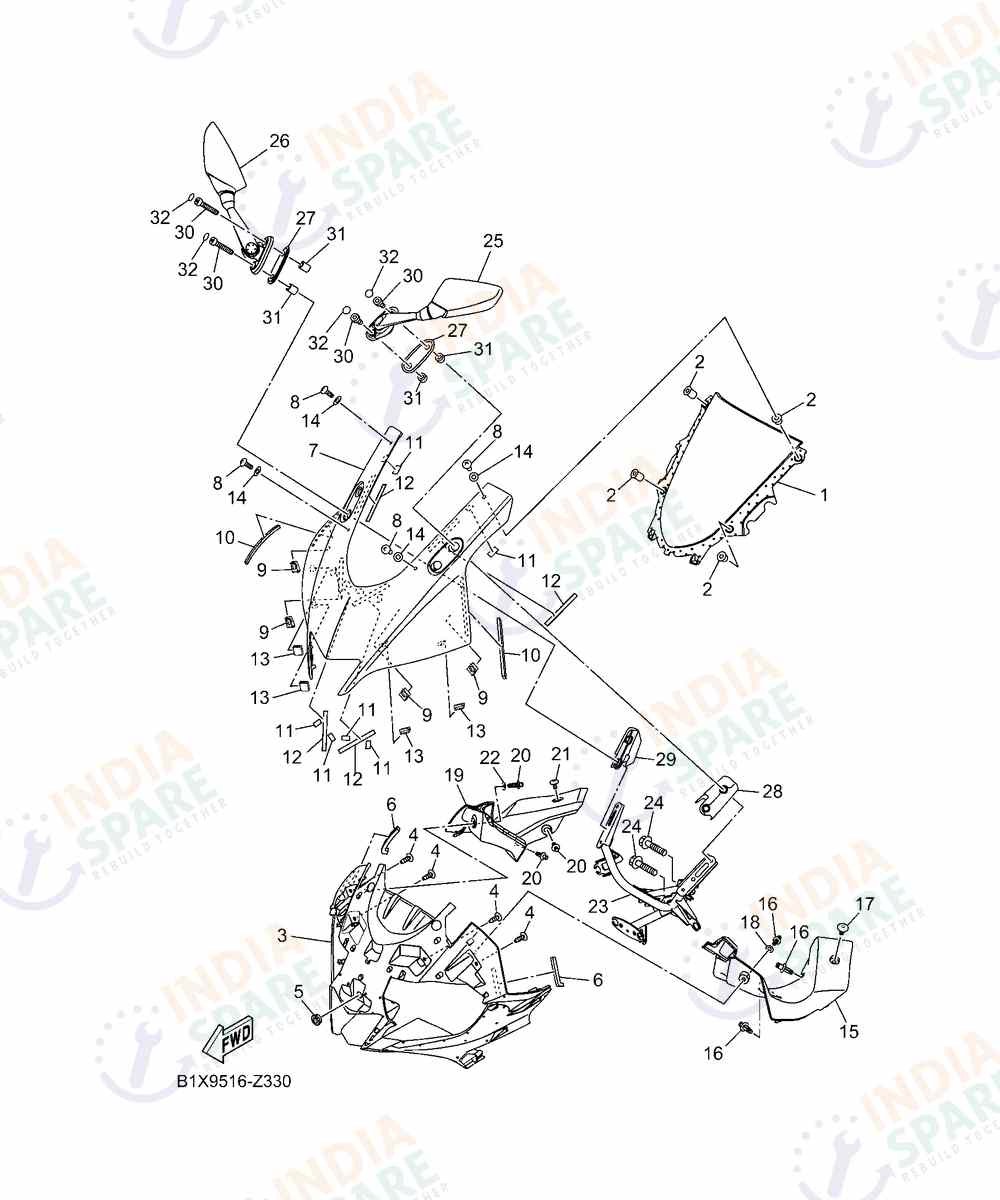

WINDSHIELD
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BS7F83810000 | WINDSHIELD | ₹ 1949 | 1 | ||
| 2 | 901790580400 | NUT | ₹ 10 | 4 | ||
| 3 | BS7F835G0000 | BODY, FRONT UPPER 1 | ₹ 991 | 1 | ||
| 4 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 5 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 6 | 905200780800 | DAMPER PLATE | ₹ 20 | 2 | ||
| 7A | BS7F835100P0 | BODY, COWLING | ₹ 1382 | 1 | FOR DPBMC | |
| 7B | BS7F835100P4 | BODY, COWLING | ₹ 1106 | 1 | FOR SM12 | |
| 8 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 4 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 10 | 4 | ||
| 10 | 905200780800 | DAMPER PLATE | ₹ 20 | 2 | ||
| 11 | 31BF83070000 | SEAL | ₹ 20 | 6 | ||
| 12 | 1WDF414E0000 | SEAL 2 | ₹ 41 | 4 | ||
| 13 | 1WDF83760000 | TRIM | ₹ 15 | 4 | ||
| 14 | 902020508800 | 0 | ₹ 0 | 4 | ||
| 15 | BS7F836N0000 | PANEL, INNER 4 | ₹ 276 | 1 | ||
| 16 | 902690681600 | RIVET | ₹ 12 | 3 | ||
| 17 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 1 | ||
| 18 | BS7F83270000 | DAMPER, LEG SHIELD | ₹ 13 | 1 | ||
| 19 | BS7F836R0000 | PANEL, INNER 5 | ₹ 276 | 1 | ||
| 20 | 902690681600 | RIVET | ₹ 12 | 3 | ||
| 21 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 1 | ||
| 22 | BS7F83270000 | DAMPER, LEG SHIELD | ₹ 13 | 1 | ||
| 23 | BS7F83560000 | STAY 1 | ₹ 1963 | 1 | ||
| 24 | 958120803500 | BOLT FLANGE | ₹ 26 | 2 | ||
| 25 | BS7F62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 2600 | 1 | ||
| 26 | BS7F62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 2600 | 1 | ||
| 27 | BK6F84830000 | PLATE, RUBBER 1 | ₹ 120 | 2 | ||
| 28 | BS7F84840000 | PLATE, RUBBER 2 | ₹ 120 | 1 | ||
| 29 | BS7F84850000 | PLATE, RUBBER 3 | ₹ 120 | 1 | ||
| 30 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 31 | 903870613100 | COLLAR | ₹ 11 | 4 | ||
| 32 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
