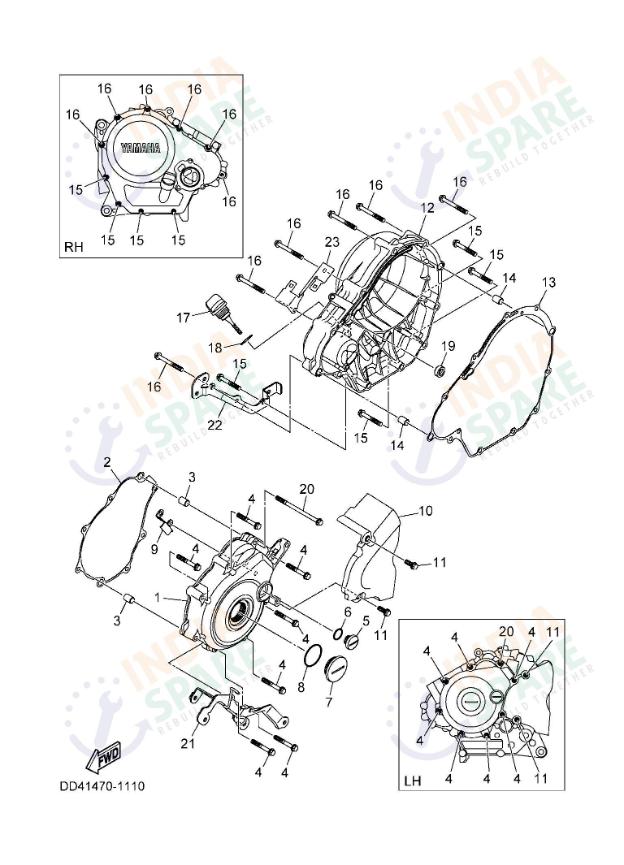

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E54110000 | COVER CRANKCASE 1 | ₹ 497 | 1 | ||
| 2 | B0TE54510000 | GASKET CRANKCASE COVER 1 | ₹ 18 | 1 | ||
| 3 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 4 | 950220604000 | BOLT FLANGE | ₹ 18 | 7 | ||
| 5 | 903401482400 | PLUG STRAIGHT SCREW-MATBLACK2 | ₹ 18 | 1 | ||
| 6 | 932101481200 | O-RING | ₹ 11 | 1 | ||
| 7 | 903403282300 | PLUG STRAIGHT SCREW-MATBLACK 2 | ₹ 18 | 1 | ||
| 8 | 932103281300 | O-RING | ₹ 18 | 1 | ||
| 9 | 2PVE51130000 | PLATE | ₹ 9 | 1 | ||
| 10 | BK7E54180000 | COVER CHAIN CASE | ₹ 177 | 1 | ||
| 11 | 950220601600 | BOLT FLANGE | ₹ 11 | 2 | ||
| 12 | BK7E54210000 | COVER CRANKCASE 2 | ₹ 899 | 1 | ||
| 13 | B0TE54610000 | GASKET CRANKCASE COVER 2 | ₹ 252 | 1 | ||
| 14 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 15 | 950220604000 | BOLT FLANGE | ₹ 18 | 4 | ||
| 16 | 950220605000 | BOLT FLANGE | ₹ 17 | 6 | ||
| 17 | BK7E53620000 | PLUG OIL LEVEL | ₹ 31 | 1 | ||
| 18 | 932101980900 | O RING | ₹ 4 | 1 | ||
| 19 | 931011080500 | OIL SEAL | ₹ 28 | 1 | ||
| 20 | 950220609000 | BOLT FLANGE | ₹ 27 | 1 | ||
| 21 | DD4F82830000 | BRACKET, POUCH | ₹ 240 | 1 | ||
| 22 | DD4F82840000 | BRACKET, UNDER | ₹ 180 | 1 | ||
| 23 | BGMH18450000 | PLATE | ₹ 46 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This assembly provides the protective outer shells for the engine's internal components. It includes the primary Crankcase Covers and the associated Gaskets to prevent oil leaks. It also features the oil level plug, the chain case cover, and various straight screw plugs. These covers are finished in Mat Black to match the XSR's rugged engine aesthetics while providing essential protection.
