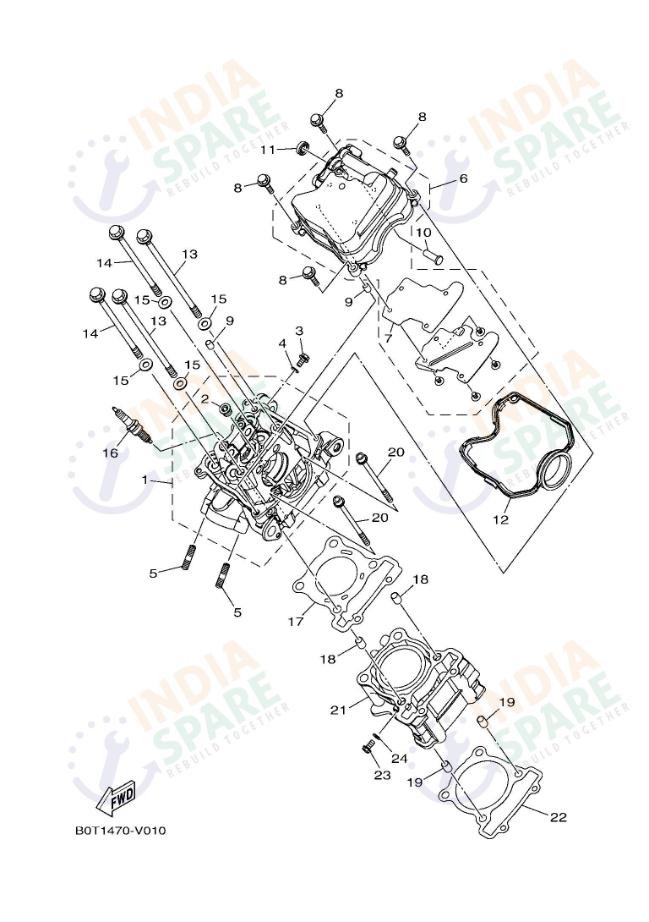

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B0TE11021000 | CYLINDER HEAD ASSY | ₹ 5171 | 1 | ||
| 2 | 903401281300 | PLUG STRAIGHT SCREW | ₹ 55 | 1 | ||
| 3 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 4 | 904300681700 | GASKET | ₹ 8 | 1 | ||
| 5 | 956120861800 | BOLT STUD | ₹ 15 | 2 | ||
| 6 | BK7E11900000 | COVER CYLINDER HEAD 1 | ₹ 558 | 1 | ||
| 7 | BK7E11690000 | GASKET BREATHER COVER | ₹ 20 | 1 | ||
| 8 | 950220603000 | BOLT FLANGE | ₹ 14 | 4 | ||
| 9 | 995300801200 | PIN DOWEL | ₹ 23 | 2 | ||
| 10 | BCWE132G0000 | ROD 1 | ₹ 106 | 1 | ||
| 11 | 931020880000 | OIL SEAL | ₹ 142 | 1 | ||
| 12 | BK7E11930000 | GASKET HEAD COVER 1 | ₹ 148 | 1 | ||
| 13 | 90105088J700 | BOLT FLANGE | ₹ 95 | 2 | ||
| 14 | 90105088J600 | BOLT FLANGE | ₹ 88 | 2 | ||
| 15 | BLVE113F0000 | PLATE 3 | ₹ 35 | 4 | ||
| 16 | 947030043900 | PLUG SPARK | ₹ 245 | 1 | ||
| 17 | B0TE11810000 | GASKET CYLINDER HEAD 1 | ₹ 350 | 1 | ||
| 18 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 19 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 20 | 901100637800 | BOLT HEXAGON SOCKET HEAD | ₹ 176 | 2 | ||
| 21 | BCWE13110100 | CYLINDER | ₹ 0 | 1 | ||
| 22 | B0TE13510000 | GASKET CYLINDER | ₹ 82 | 1 | ||
| 23 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 24 | 904300681700 | GASKET | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Cylinder assembly includes the top end of the engine. It features the Cylinder Head Assy, the Cylinder Gasket, and the Spark Plug. It also includes the breather covers and various studs and flange bolts required to seal the head to the engine block. These parts form the combustion chamber where the engine's power is generated.
