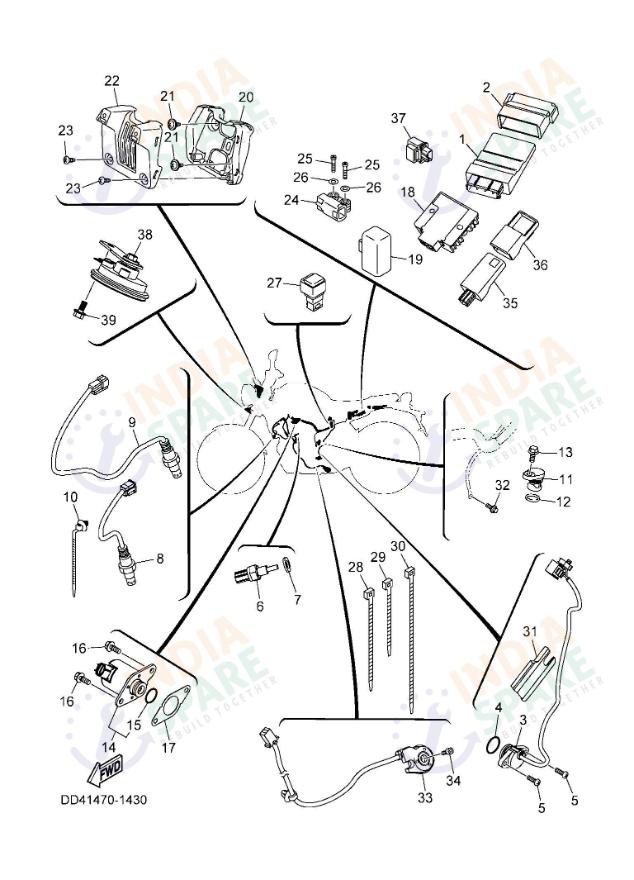

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | DD4H591A0000 | ENGINE CONTROL UNIT ASSY | ₹ 4490 | 1 | ||
| 2 | BPEH55460000 | BAND | ₹ 255 | 1 | ||
| 3 | BK7H25400000 | NEUTRAL SWITCH ASSY | ₹ 295 | 1 | ||
| 4 | 932102180100 | O-RING | ₹ 11 | 1 | ||
| 5 | 901570581700 | SCREW PAN HEAD | ₹ 5 | 2 | ||
| 6 | B4RH35910000 | THERMO UNIT | ₹ 375 | 1 | ||
| 7 | 904301080200 | GASKET | ₹ 30 | 1 | ||
| 8 | BGMH592A2000 | SENSOR | ₹ 2600 | 1 | ||
| 9 | BGMH592A3000 | SENSOR | ₹ 2930 | 1 | ||
| 10 | 904643680100 | CLAMP | ₹ 20 | 2 | ||
| 11 | B9EE51890000 | PLUG | ₹ 143 | 1 | ||
| 12 | 932101580600 | O-RING | ₹ 5 | 1 | ||
| 13 | 958120601400 | BOLT FLANGE | ₹ 5 | 1 | ||
| 14 | BK6H61101000 | SOLENOID | ₹ 4002 | 1 | ||
| 15 | BK6H18470000 | O-RING | ₹ 25 | 1 | ||
| 16 | 958120601600 | BOLT FLANGE | ₹ 3 | 2 | ||
| 17 | B0TH18610000 | GASKET | ₹ 10 | 1 | ||
| 18 | BXUH19600000 | RECTIFIER & REGULATOR ASSY | ₹ 1020 | 1 | ||
| 19 | B9DH19400000 | STARTER RELAY ASSY | ₹ 147 | 1 | ||
| 20 | DD4H25990000 | COVER, CONNECTER | ₹ 40 | 1 | ||
| 21 | 901590686000 | SCREW WITH WASHER | ₹ 12 | 2 | ||
| 22 | DD4H43690000 | COVER 1 | ₹ 60 | 1 | ||
| 23 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 24 | B9PH25760000 | SENSOR LEAN ANGLE | ₹ 413 | 1 | ||
| 25 | 913120402500 | BOLT | ₹ 15 | 2 | ||
| 26 | 90201047A200 | WASHER PLATE | ₹ 47 | 2 | ||
| 27 | 20PH19500100 | RELAY ASSY | ₹ 90 | 1 | ||
| 28 | 904645080000 | CLAMP | ₹ 6 | 5 | ||
| 29 | 904643680000 | CLAMP | ₹ 8 | 3 | ||
| 30 | 904648080200 | CLAMP | ₹ 13 | 1 | ||
| 31 | B9DH25890000 | PROTECTER, WIRE HARNESS | ₹ 37 | 1 | ||
| 32 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 33 | BCWH25660000 | SWITCH SIDE STAND | ₹ 411 | 1 | ||
| 34 | 901100689300 | BOLT HEXAGON SOCKET HEAD | ₹ 10 | 1 | ||
| 35 | B6YH58101100 | COMMUNICATION CONT | ₹ 5040 | 1 | ||
| 36 | DD4H55460000 | BAND | ₹ 85 | 1 | ||
| 37 | BMNH33500000 | FLASHER RELAY ASSY | ₹ 580 | 1 | ||
| 38 | B9DH33710000 | HORN | ₹ 190 | 1 | ||
| 39 | 958220601200 | BOLT FLANGE | ₹ 3 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - As the central management hub for the motorcycle, this section houses the Engine Control Unit (ECU) Assy, which regulates all engine performance parameters. It also includes vital sensors such as the Lean Angle Sensor for safety, the Thermo Unit for temperature monitoring, and various Neutral and Solenoid switches. To ensure power stability, the assembly features the Rectifier & Regulator Assy, Starter Relay, and the primary Wire Harness.
