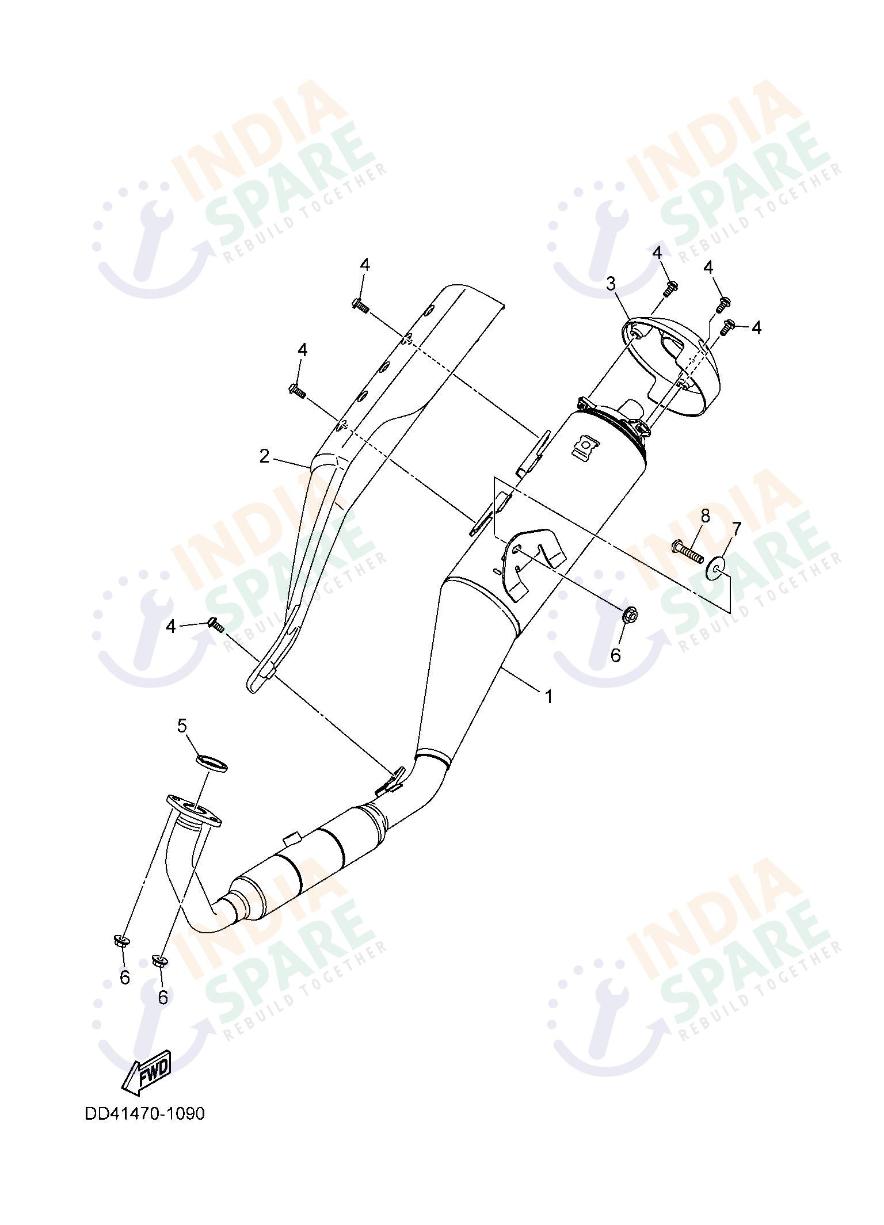

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | DD4E47031000 | MUFFLER COMP. 1 | ₹ 12695 | 1 | ||
| 2 | DD4E47180000 | PROTECTOR, MUFFLER 1 | ₹ 450 | 1 | ||
| 3 | DD4E47990000 | CAP | ₹ 410 | 1 | ||
| 4 | 901110686400 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 6 | ||
| 5 | BK7E46130000 | GASKET EXHAUST PIPE | ₹ 44 | 1 | ||
| 6 | 957070850000 | NUT FLANGE | ₹ 6 | 3 | ||
| 7 | 902010861200 | WASHER SPECIAL | ₹ 8 | 1 | ||
| 8 | 901490822000 | SCREW | ₹ 95 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This assembly manages the engine's spent gases and provides the bike's exhaust note. It includes the Muffler Comp and the decorative Muffler Protectors. For a leak-proof seal, it provides the Exhaust Pipe Gasket and specialized flange nuts. These parts are designed to withstand high temperatures while optimizing engine backpressure for better performance and a refined sound.
