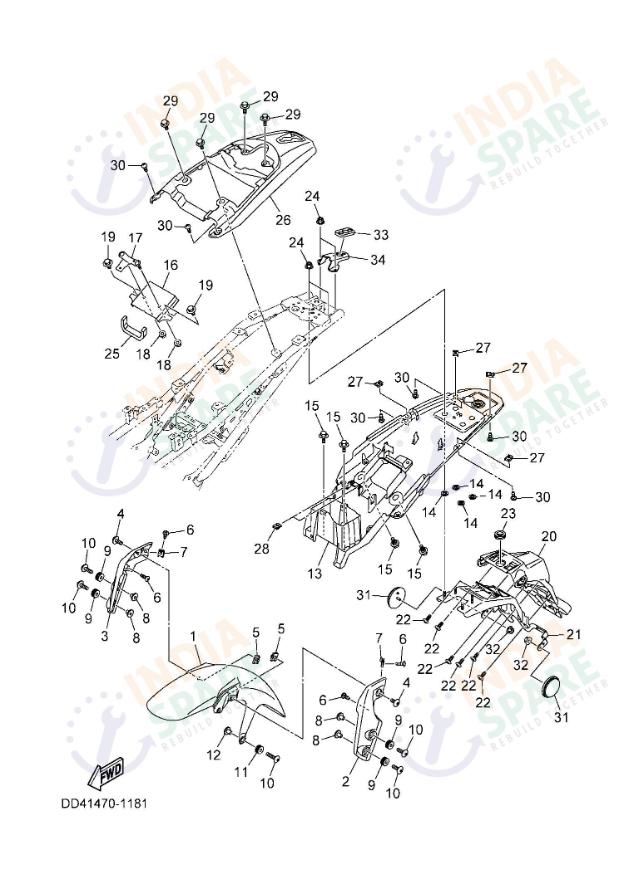

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | DD4F151100P0 | FENDER, FRONT | ₹ 1500 | 1 | FOR WMC | |
| 1B | DD4F151100P6 | FENDER, FRONT | ₹ 1500 | 1 | FOR VRC1 | |
| 1C | DD4F151100P5 | FENDER, FRONT | ₹ 1500 | 1 | FOR BMC | |
| 1D | DD4F151100P2 | FENDER, FRONT | ₹ 1500 | 1 | FOR NGM3 | |
| 2A | DD4F151900P0 | MOLE, FENDER | ₹ 350 | 1 | FOR WMC,VRC1,NGM3 | |
| 2B | DD4F151900P2 | MOLE, FENDER | ₹ 350 | 1 | FOR BMC | |
| 3A | DD4F152900P0 | MOLD, FENDER | ₹ 350 | 1 | FOR WMC,VRC1,NGM3 | |
| 3B | DD4F152900P2 | MOLD, FENDER | ₹ 350 | 1 | FOR BMC | |
| 4 | 901110613700 | BOLT HEX. SOCKET BUTTON | ₹ 35 | 2 | ||
| 5 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 6 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 8 | 90387068C800 | COLLAR | ₹ 16 | 4 | ||
| 9 | 904801280500 | GROMMET | ₹ 8 | 4 | ||
| 10 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 5 | ||
| 11 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 12 | 90387068C800 | COLLAR | ₹ 16 | 1 | ||
| 13 | DD4F16110000 | FENDER, REAR | ₹ 275 | 1 | ||
| 14 | 905600832600 | SPACER | ₹ 10 | 4 | ||
| 15 | 901090622000 | BOLT | ₹ 19 | 4 | ||
| 16 | DD4H19750000 | PLATE, RECTIFIER FITTING | ₹ 145 | 1 | ||
| 17 | DD4F16820100 | STAY, PLATE | ₹ 115 | 1 | ||
| 18 | 956070620000 | NUT, U | ₹ 5 | 2 | ||
| 19 | 901190611700 | BOLT WITH WASHER | ₹ 23 | 2 | ||
| 20 | DD4F16290000 | GUARD, MUD | ₹ 125 | 1 | ||
| 21 | DD4F16400000 | REAR STAY COMP. | ₹ 735 | 1 | ||
| 22 | 977025001600 | SCREW TAPPING | ₹ 10 | 6 | ||
| 23 | 904802548200 | GROMMET | ₹ 9 | 1 | ||
| 24 | 956020620000 | NUT, SELF-LOCKING | ₹ 0 | 4 | ||
| 25 | 905200880400 | DAMPER PLATE | ₹ 13 | 1 | ||
| 26A | DD4F165100P0 | COVER, REAR FENDER | ₹ 630 | 1 | FOR WMC | |
| 26B | DD4F165100P6 | COVER, REAR FENDER | ₹ 940 | 1 | FOR VRC1 | |
| 26C | DD4F165100P5 | COVER, REAR FENDER | ₹ 940 | 1 | FOR BMC | |
| 26D | DD4F165100P2 | COVER, REAR FENDER | ₹ 630 | 1 | FOR NGM3 | |
| 27 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 28 | 901830403900 | NUT SPRING | ₹ 110 | 2 | ||
| 29 | 901090622000 | BOLT | ₹ 19 | 4 | ||
| 30 | 977025001200 | SCREW TAPPING | ₹ 11 | 6 | ||
| 31 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 32 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 33 | DD4F16490000 | DAMPER | ₹ 30 | 1 | ||
| 34 | DD4F16880000 | BRACKET, REAR STAY | ₹ 135 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This assembly includes the front and rear splash protection for the XSR. It features the Front Fender and Rear Fender, along with additional Mud Guards and stays. These parts are designed to deflect water and debris away from the engine and rider. The assembly also includes the front reflectors and the rectifier fitting plate, ensuring all body-mounted electrical parts are securely positioned.
