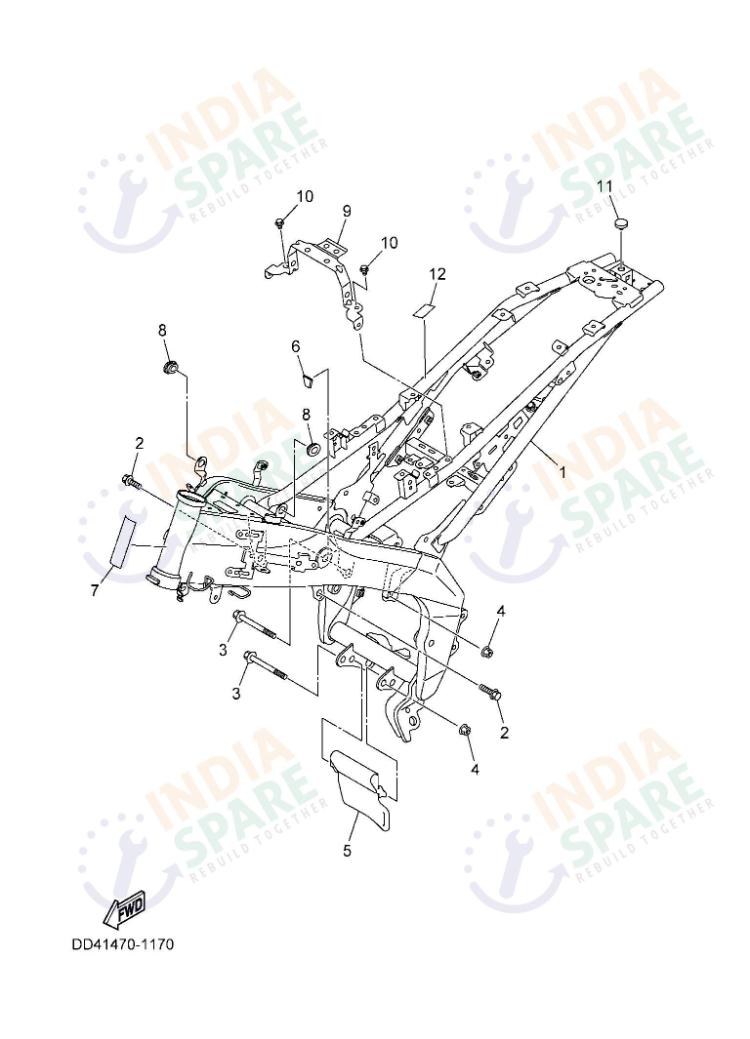

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | DD4F11100000 | FRAME COMP. | ₹ 13760 | 1 | ||
| 2 | 90105108A400 | BOLT FLANGE | ₹ 13 | 2 | ||
| 3 | 901051088600 | BOLT FLANGE | ₹ 119 | 2 | ||
| 4 | 901791080500 | NUT | ₹ 53 | 2 | ||
| 5 | B0TF23270000 | MUD GUARD 1 | ₹ 35 | 1 | ||
| 6 | BK7F113B0000 | DAMPER | ₹ 3 | 1 | ||
| 7 | 21CF41410000 | PROTECTOR FUEL TANK | ₹ 10 | 1 | ||
| 8 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 9 | DD4F19460000 | BRACKET, SEAT FITTING | ₹ 235 | 1 | ||
| 10 | 958170601000 | BOLT FLANGE | ₹ 8 | 2 | ||
| 11 | B9DF47410000 | PAD SEAT | ₹ 18 | 1 | ||
| 12 | 21CF815P0000 | LABEL NOTICE 1 | ₹ 25 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - As the backbone of the motorcycle, the Frame assembly includes the main Frame Comp and its various structural supports. It provides the mounting points for the seat, the fuel tank protector, and various mud guards. This assembly is engineered for a perfect balance of rigidity and weight, providing the stable foundation necessary for the XSR’s high-performance engine and suspension.
