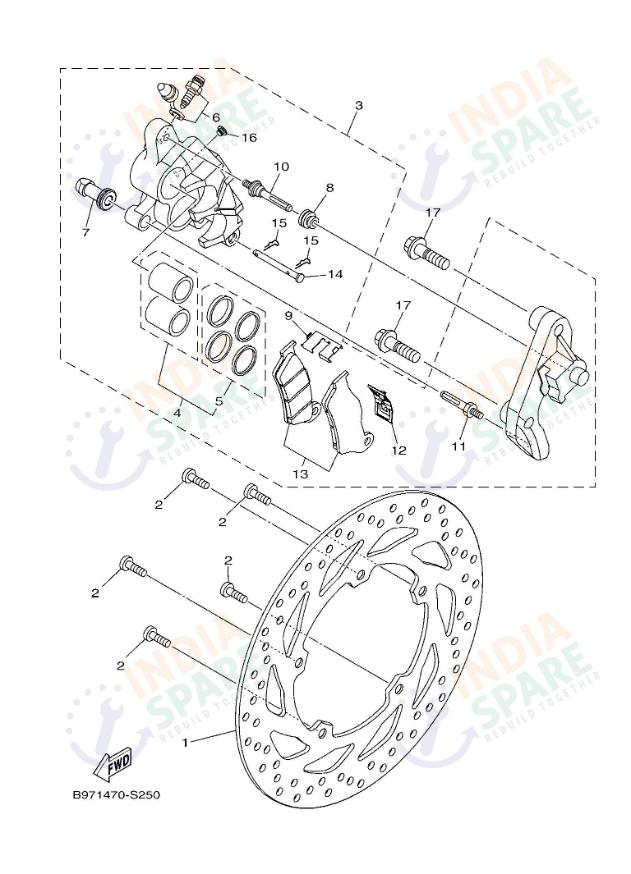

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B97F582U0000 | DISC BRAKE (RIGHT) | ₹ 1280 | 1 | ||
| 2 | 901110802900 | BOLT HEX. SOCKET BUTTON | ₹ 11 | 5 | ||
| 3 | B9EF580U0000 | CALIPER ASSY (RIGHT) | ₹ 2000 | 1 | ||
| 4 | 54BW00570000 | PISTON ASSY CALIPER | ₹ 557 | 1 | ||
| 5 | 54BW00470000 | CALIPER SEAL SET | ₹ 99 | 1 | ||
| 6 | 5USW00480000 | BLEED SCREW SET | ₹ 27 | 1 | ||
| 7 | 54BF59370000 | BOOT 2 | ₹ 27 | 1 | ||
| 8 | 54BF59170000 | BOOT CALIPER | ₹ 23 | 1 | ||
| 9 | 54BF59390000 | CLIP PAD | ₹ 11 | 1 | ||
| 10 | 54BF59140000 | PIN SLIDE | ₹ 27 | 1 | ||
| 11 | 54BF59260000 | BOLT | ₹ 26 | 1 | ||
| 12 | 54BF59190000 | SUPPORT PAD | ₹ 28 | 1 | ||
| 13 | B97W00450000 | BRAKE PAD SET | ₹ 425 | 1 | ||
| 14 | 54BF59240000 | PIN PAD | ₹ 35 | 1 | ||
| 15 | 54BF59250000 | CLIP | ₹ 10 | 2 | ||
| 16 | 54BF59160000 | PLUG | ₹ 6 | 1 | ||
| 17 | 901051031900 | BOLT FLANGE | ₹ 40 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This assembly contains the high-performance braking hardware for the front wheel. It features the Front Brake Disc and the Caliper Assy, along with a premium Brake Pad Set and Piston Assy. Critical maintenance items like the Caliper Seal Set, slide pins, and support pads are included to ensure even pad wear and consistent braking performance under heavy loads.
