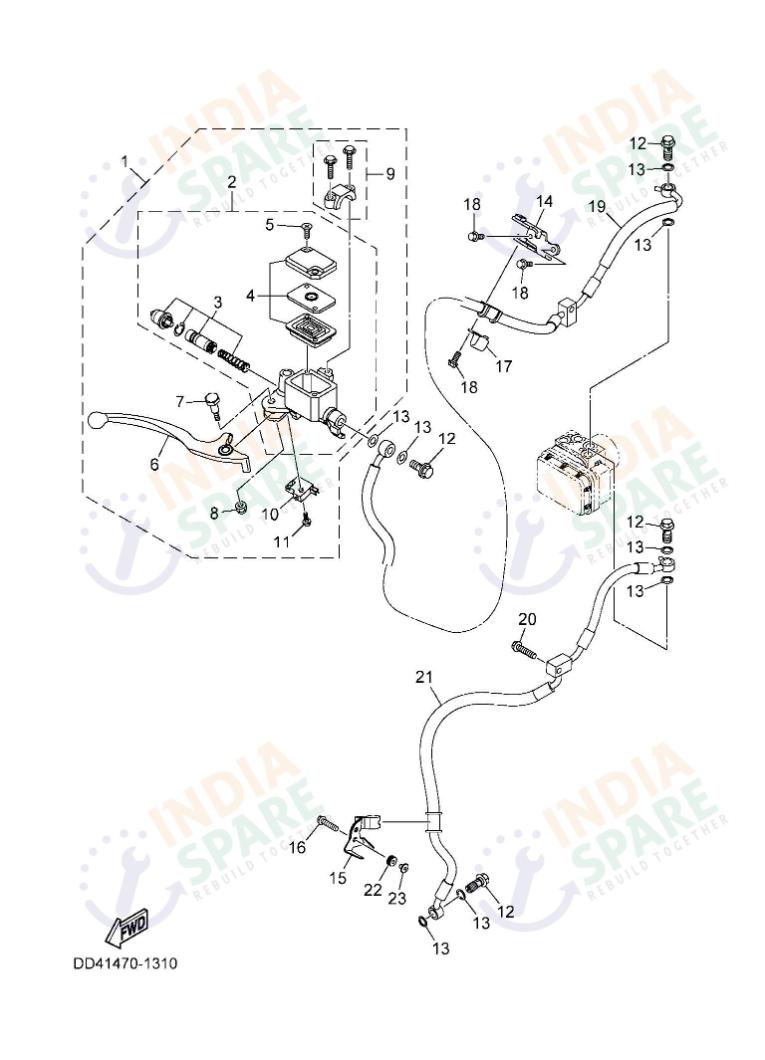

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDF583T0000 | MASTER CYLINDER ASSY | ₹ 1539 | 1 | ||
| 2 | BPDF580A0000 | MASTER CYLINDER SU | ₹ 2304 | 1 | ||
| 3 | BPDF58070000 | CYLINDER KIT, MAST | ₹ 525 | 1 | ||
| 4 | BPDWF5850000 | CAP RESERVOIR KIT | ₹ 474 | 1 | ||
| 5 | 54BF589H0000 | SCREW | ₹ 5 | 2 | ||
| 6 | B97H39220000 | LEVER 2 | ₹ 193 | 1 | ||
| 7 | 901090685900 | BOLT | ₹ 14 | 1 | ||
| 8 | 54BF63380000 | NUT ADJUSTING | ₹ 6 | 1 | ||
| 9 | BPDWF5860000 | CLAMP SCREW KIT | ₹ 359 | 1 | ||
| 10 | B97H39800000 | FRONT STOP SWITCH | ₹ 81 | 1 | ||
| 11 | B97F589H0000 | SCREW | ₹ 5 | 1 | ||
| 12 | 904011001500 | BOLT UNION | ₹ 34 | 4 | ||
| 13 | 902011011800 | WASHER PLAIN | ₹ 5 | 8 | ||
| 14 | DD4F58870100 | HOLDER, BRAKE HOSE | ₹ 125 | 1 | ||
| 15 | BKJF58750000 | HOLDER BRAKE HOSE 1 | ₹ 51 | 1 | ||
| 16 | 950220602500 | BOLT FLANGE | ₹ 11 | 1 | ||
| 17 | B9DF58750000 | HOLDER BRAKE HOSE 1 | ₹ 12 | 1 | ||
| 18 | 950270601000 | BOLT FLANGE | ₹ 2 | 3 | ||
| 19 | DD4F584A0000 | BRAKE HOSE ASSY | ₹ 1755 | 1 | ||
| 20 | 950220603000 | BOLT FLANGE | ₹ 14 | 1 | ||
| 21 | BXUF584B0000 | HOSE, BRAKE | ₹ 1435 | 1 | ||
| 22 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 23 | 90387068C800 | COLLAR | ₹ 16 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Front Master Cylinder is critical for the bike's primary stopping power. This assembly features the Master Cylinder Assy, the Brake Lever, and the Reservoir Cap Kit. It also includes the front Stop Switch, which activates the brake light, and the high-pressure Brake Hose Assy. These genuine parts ensure a firm, predictable lever feel and maximum safety during braking maneuvers.
