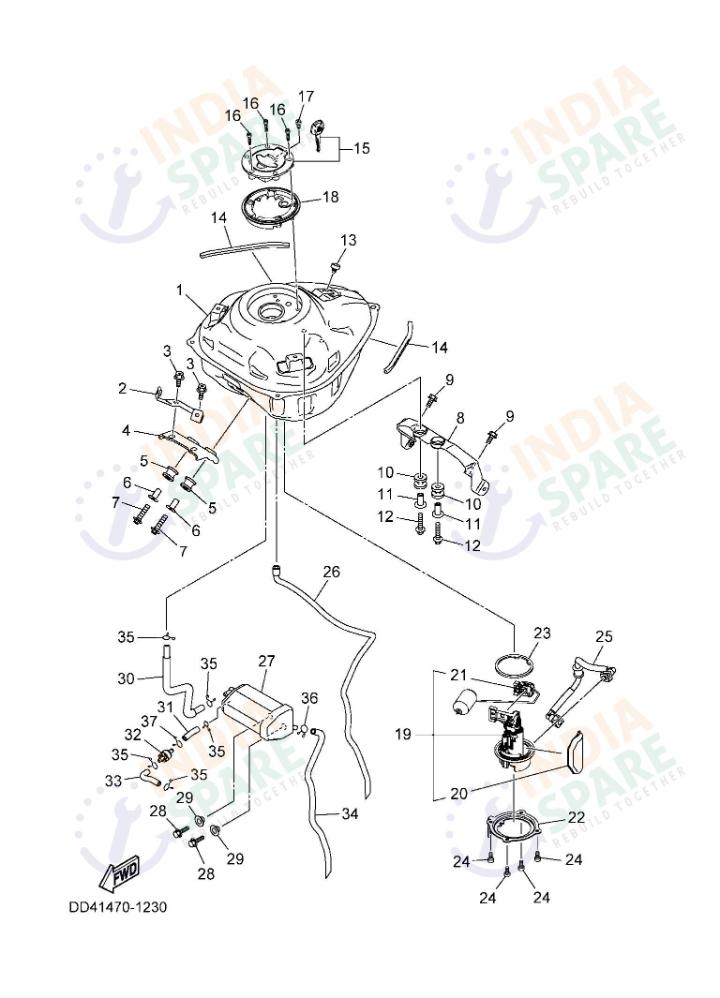

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | DD4F41100000 | FUEL TANK COMP. | ₹ 3625 | 1 | ||
| 2 | B9DF411F0000 | PLATE FITTING | ₹ 43 | 4 | ||
| 3 | 901100805200 | BOLT HEXAGON SOCKET HEAD | ₹ 16 | 2 | ||
| 4 | B9DF412Y0000 | BRKT. TANK FITTING FR. | ₹ 159 | 1 | ||
| 5 | 904801881300 | GROMMET | ₹ 18 | 2 | ||
| 6 | 90387068M300 | COLLAR | ₹ 12 | 2 | ||
| 7 | 950220603000 | BOLT FLANGE | ₹ 14 | 2 | ||
| 8 | DD4F41910000 | BRACKET, FUEL TANK 1 | ₹ 340 | 1 | ||
| 9 | 901100621500 | BOLT HEXAGON SOCKET HEAD | ₹ 19 | 2 | ||
| 10 | 904801881300 | GROMMET | ₹ 18 | 2 | ||
| 11 | 90387068M300 | COLLAR | ₹ 12 | 2 | ||
| 12 | 950220603000 | BOLT FLANGE | ₹ 14 | 2 | ||
| 13 | 903380681300 | PLUG | ₹ 10 | 1 | ||
| 14 | B9DF12780000 | MOLD | ₹ 13 | 2 | ||
| 15 | 2FBWF4610200 | CAP ASSY WITH LOCK | ₹ 1330 | 1 | ||
| 16 | 901100580600 | BOLT HEXAGON SOCKET HEAD | ₹ 12 | 3 | ||
| 17 | 913120501000 | BOLT | ₹ 8 | 1 | ||
| 18 | B97F414F0000 | COVER FILLER COMP. | ₹ 33 | 1 | ||
| 19 | BCFE39070100 | FUEL PUMP COMP. | ₹ 6072 | 1 | ||
| 20 | B7JE39150000 | FILTER | ₹ 211 | 1 | ||
| 21 | BCFH57520000 | SENDER UNIT ASSY FUEL METER | ₹ 892 | 1 | ||
| 22 | BCFF44910000 | BRACKET FUEL PUMP | ₹ 90 | 1 | ||
| 23 | 2GSF414G0100 | SEAL | ₹ 160 | 1 | ||
| 24 | 913120501000 | BOLT | ₹ 8 | 4 | ||
| 25 | B0TE39710000 | PIPE FUEL 1 | ₹ 523 | 1 | ||
| 26 | BK7F43120000 | PIPE 2 | ₹ 56 | 1 | ||
| 27 | 2FBF41701100 | CANISTER ASSY | ₹ 505 | 1 | ||
| 28 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 29 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 30 | BK7F43130000 | PIPE 3 | ₹ 30 | 1 | ||
| 31 | BCWF43140000 | PIPE 4 | ₹ 12 | 1 | ||
| 32 | B7JF44210100 | VALVE, CHECK | ₹ 115 | 1 | ||
| 33 | BCWF43160000 | PIPE 6 | ₹ 12 | 1 | ||
| 34 | 2FBF43150000 | PIPE 5 | ₹ 25 | 1 | ||
| 35 | 904670900600 | CLIP | ₹ 5 | 5 | ||
| 36 | 90467100A100 | CLIP | ₹ 3 | 1 | ||
| 37 | 904671100900 | CLIP | ₹ 37 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The functional core of the fuel system, this assembly includes the Fuel Tank Comp and the high-pressure Fuel Pump Comp. To monitor fuel levels, it features the Sender Unit Assy. For safety and emissions, the assembly includes the Cap Assy with lock, the Canister Assy, and various fuel pipes and check valves. These genuine parts ensure a leak-proof and efficient fuel delivery system.
