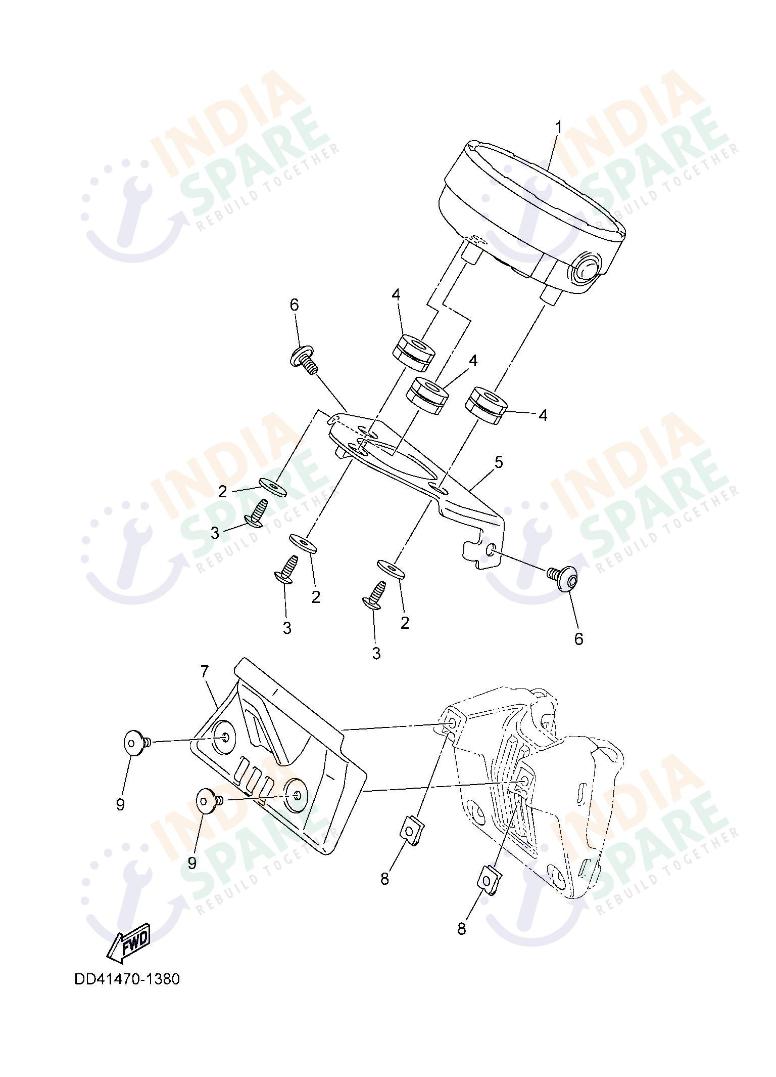

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | DD4H35000000 | SPEEDOMETER ASSY | ₹ 7755 | 1 | ||
| 2 | 902010503600 | WASHER | ₹ 2 | 3 | ||
| 3 | 901600500900 | SCREW ROUND TAPPING | ₹ 4 | 3 | ||
| 4 | 904801400400 | GROMMET | ₹ 143 | 3 | ||
| 5 | DD4H35190000 | BRACKET, METER | ₹ 190 | 1 | ||
| 6 | 901110686300 | BOLT,HEX. SOCKET BUTTON | ₹ 7 | 2 | ||
| 7 | DD4H35590100 | COVER, METER | ₹ 80 | 1 | ||
| 8 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 9 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Meter assembly acts as the rider's information center. It features the Speedometer Assy, which provides real-time data on speed, fuel, and diagnostics. The assembly includes the necessary mounting Brackets, Meter Covers, and vibration-dampening grommets. These parts are engineered to protect the sensitive digital display from engine vibrations and environmental elements, ensuring clear visibility in all riding conditions.
