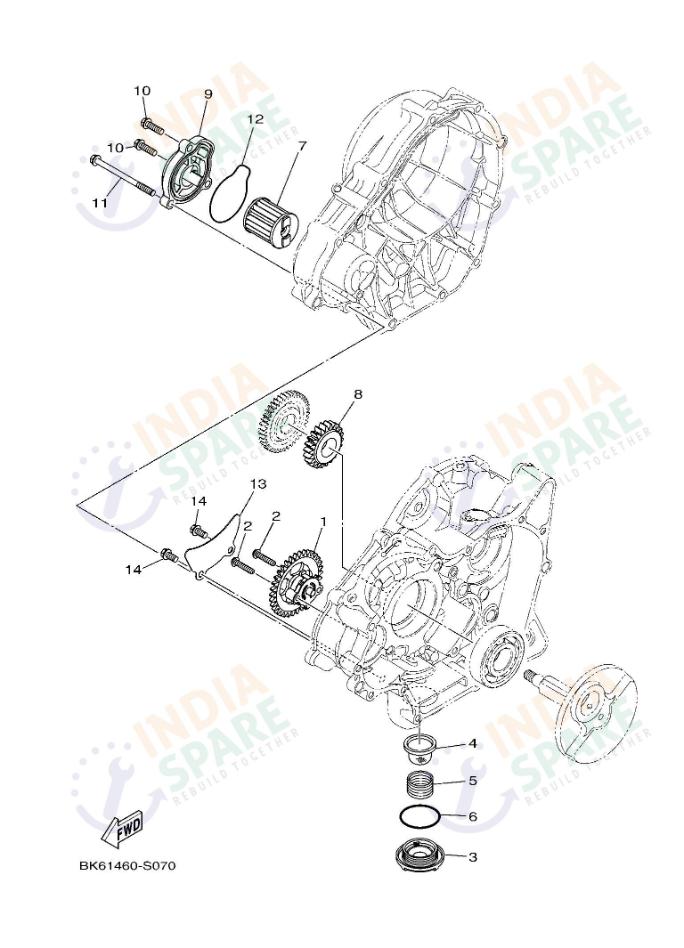

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E33000000 | OIL PUMP ASSY | ₹ 235 | 1 | ||
| 2 | 901110503500 | BOLT HEX. SOCKET BUTTON | ₹ 17 | 2 | ||
| 3 | 38BE53510000 | PLUG DRAIN | ₹ 82 | 1 | ||
| 4 | 38BE34110000 | STRAINER OIL | ₹ 10 | 1 | ||
| 5 | 905011857600 | SPRING COMPRESSION | ₹ 14 | 1 | ||
| 6 | 932103480500 | O-RING | ₹ 23 | 1 | ||
| 7 | 38BE34400100 | ELEMENT ASSY OIL CLEANER | ₹ 247 | 1 | ||
| 8 | 2PVE33240000 | GEAR PUMP DRIVE | ₹ 147 | 1 | ||
| 9 | 38BE34470000 | COVER OIL ELEMENT - MAT BLACK | ₹ 199 | 1 | ||
| 10 | 950220602000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 11 | 950220608000 | BOLT FLANGE | ₹ 23 | 1 | ||
| 12 | 932105480600 | O-RING | ₹ 19 | 1 | ||
| 13 | 38BE33270000 | COVER PUMP GEAR | ₹ 14 | 1 | ||
| 14 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This assembly is the heart of the engine's lubrication system. It includes the Oil Pump Assy, which circulates oil to all moving parts, and the Oil Strainer and Oil Cleaner Element (filter) to remove contaminants. The assembly also provides the necessary pump gears, gaskets, and drain plugs, ensuring the engine stays lubricated and cool during operation.
