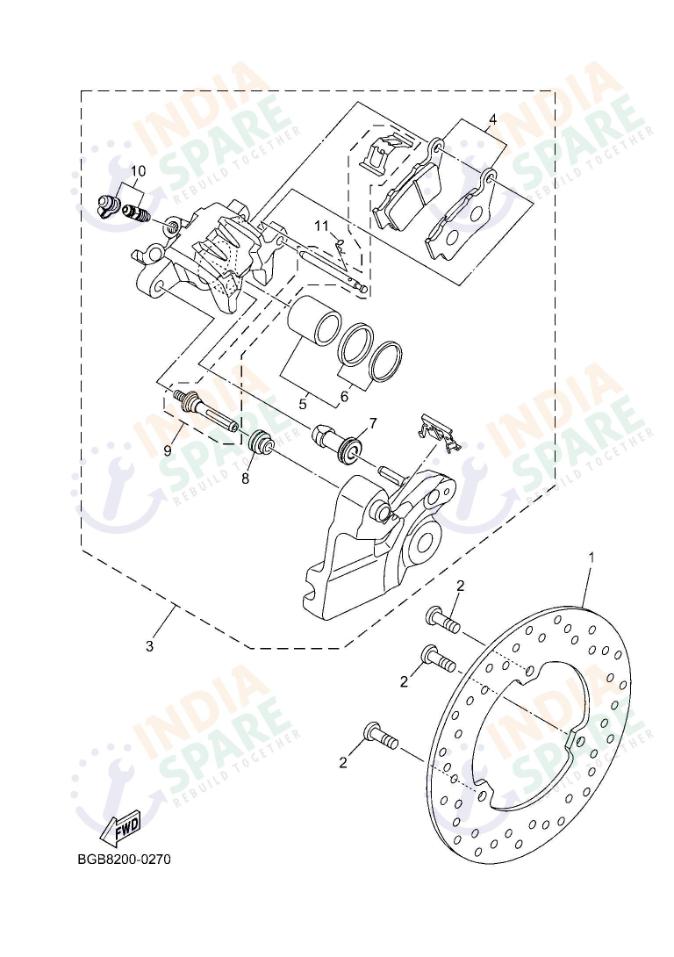

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B97F582W0000 | DISK REAR BRAKE 2 | ₹ 1005 | 1 | ||
| 2 | 901110802900 | BOLT HEX. SOCKET BUTTON | ₹ 11 | 3 | ||
| 3 | BPDF580W0000 | CALIPER ASSY, REAR 2 | ₹ 3429 | 1 | ||
| 4 | BPDF58060000 | BRAKE PAD SET | ₹ 917 | 1 | ||
| 5 | BPDF58025000 | PISTON ASSY, CALIP | ₹ 184 | 1 | ||
| 6 | BPDF58035000 | CALIPER SEAL KIT | ₹ 46 | 1 | ||
| 7 | 54BF59370000 | BOOT 2 | ₹ 27 | 1 | ||
| 8 | 54BF59170000 | BOOT CALIPER | ₹ 23 | 1 | ||
| 9 | BPDWF5990000 | PAD SPRING AND PIN SET | ₹ 87 | 1 | ||
| 10 | BPDW00480000 | BLEED SCREW SET | ₹ 36 | 1 | ||
| 11 | BPDF59250000 | CLIP | ₹ 20 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This assembly houses the mechanical parts that apply friction to the rear wheel. It includes the Rear Brake Disc and the Caliper Assy, which contains the Brake Pad Set and Piston Assy. To maintain the system, the kit also provides the Caliper Seal Kit, boot covers, and bleed screws, ensuring the hydraulic system remains sealed and easy to service.
