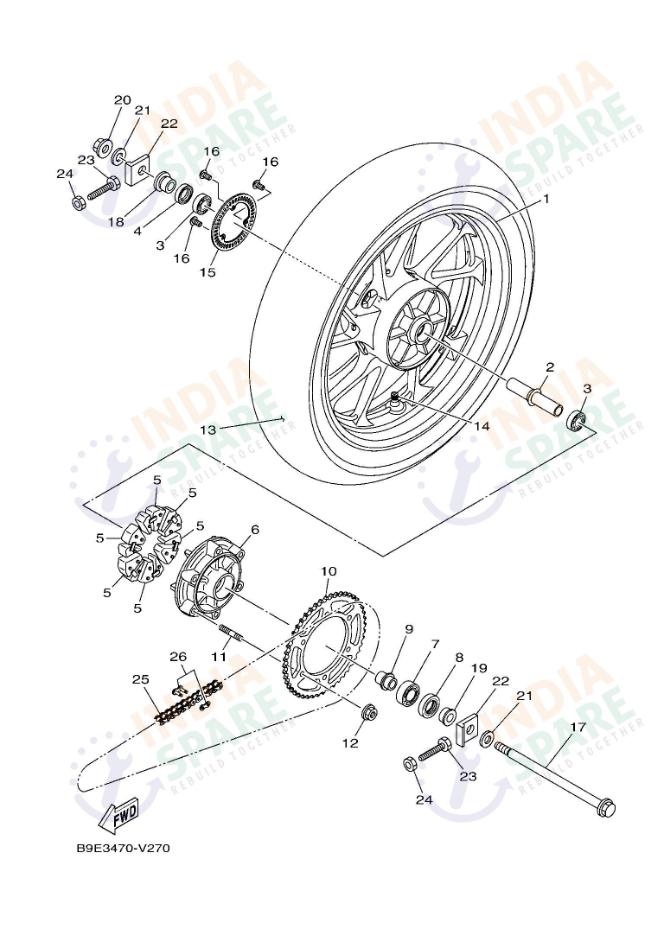

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BPDF53380033 | CAST WHEEL, REAR | ₹ 6513 | 1 | FOR WMC,VRC1,BMC | |
| 1B | BPDF533800P8 | CAST WHEEL, REAR | ₹ 7868 | 1 | FOR NGM3 | |
| 2 | B97F530S0000 | COLLAR ASSY | ₹ 49 | 1 | ||
| 3 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 4 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 5 | B97F53640000 | DAMPER | ₹ 25 | 6 | ||
| 6 | B97F53660000 | CLUTCH HUB | ₹ 456 | 1 | ||
| 7 | 93306054Y500 | BEARING | ₹ 170 | 1 | ||
| 8 | 931062680100 | SEAL OIL | ₹ 23 | 1 | ||
| 9 | B97F53760000 | COLLAR WHEEL | ₹ 41 | 1 | ||
| 10 | BK7F54480000 | SPROCKET, DRIVEN (48T) | ₹ 0 | 1 | ||
| 11 | 901160882600 | BOLT STUD | ₹ 31 | 6 | ||
| 12 | 956020820000 | NUT U FLANGE | ₹ 11 | 6 | ||
| 13 | 941141781300 | TIRE | ₹ 4567 | 1 | ||
| 14 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 15 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 16 | 901490501000 | SCREW | ₹ 25 | 3 | ||
| 17 | BK7F53810000 | AXLE WHEEL | ₹ 190 | 1 | ||
| 18 | B97F53770000 | COLLAR WHEEL | ₹ 31 | 1 | ||
| 19 | B97F53830000 | COLLAR WHEEL | ₹ 38 | 1 | ||
| 20 | 956021420000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 21 | 902011581400 | WASHER PLAIN | ₹ 27 | 2 | ||
| 22 | 1CKF53880000 | PULLER CHAIN 1 | ₹ 55 | 2 | ||
| 23 | 901010800600 | BOLT | ₹ 18 | 2 | ||
| 24 | 953020870000 | NUT | ₹ 3 | 2 | ||
| 25 | 94568L612700 | CHAIN (DID428VIM-X2 127LL) | ₹ 0 | 1 | ||
| 26 | 94668L602100 | CHAIN JOINT | ₹ 150 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Rear Wheel assembly is a comprehensive kit for the bike's drive end. It includes the Rear Cast Wheel, the internal Bearings, and Oil Seals. For the drive system, it features the Clutch Hub with its rubber dampers to smooth out power delivery, the Rotor Sensor for ABS, and the Axle Wheel. It even includes the drive chain joint and puller chain bolts for precise wheel alignment.
