DD41

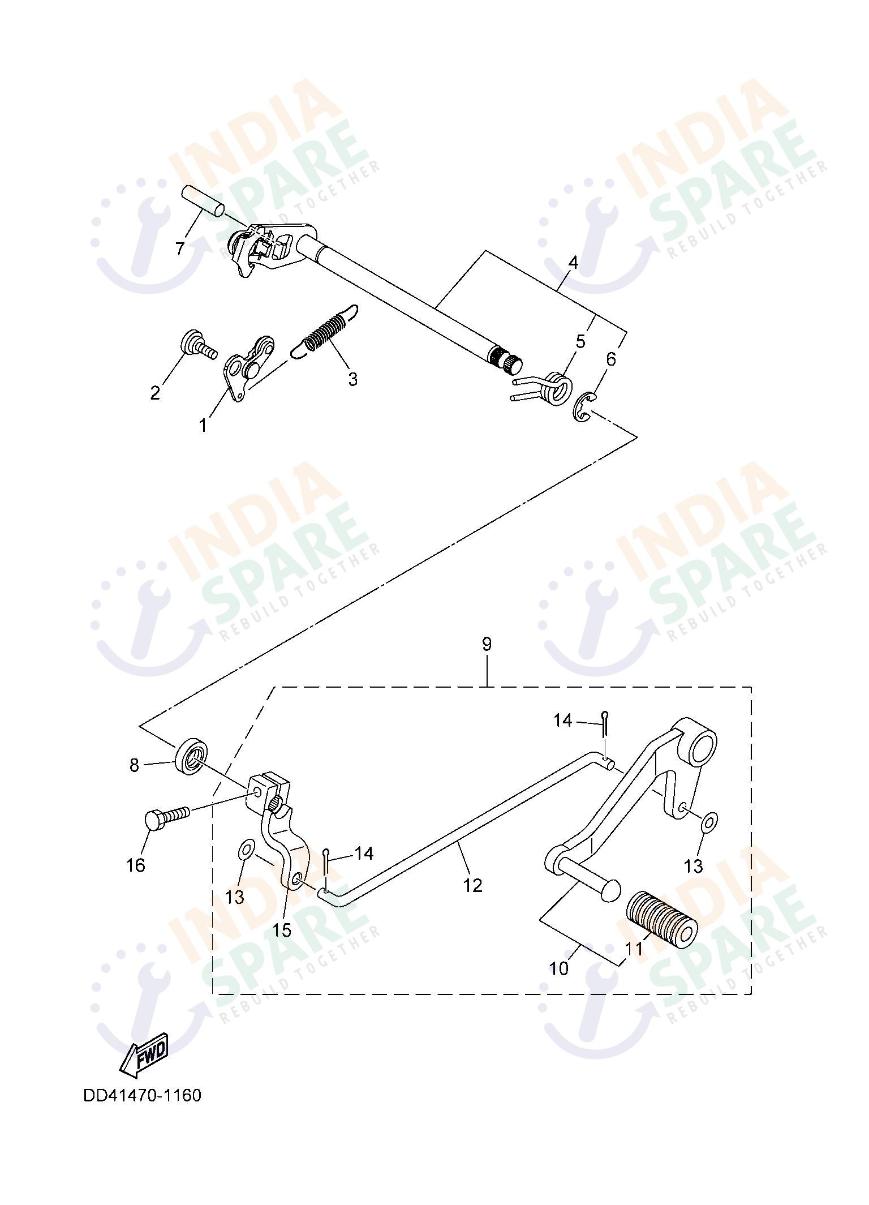

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E81400000 | STOPPER LEVER ASSY | ₹ 46 | 1 | ||
| 2 | 901090625900 | BOLT | ₹ 88 | 1 | ||
| 3 | BK7E83370000 | SPRING | ₹ 6 | 1 | ||
| 4 | 38BE81010000 | SHIFT SHAFT ASSY | ₹ 212 | 1 | ||
| 5 | 905083283700 | SPRING TORSION | ₹ 7 | 1 | ||
| 6 | 990011060000 | CIRCLIP | ₹ 2 | 1 | ||
| 7 | 936083083900 | PIN DOWEL | ₹ 7 | 1 | ||
| 8 | 931021280900 | OIL SEAL | ₹ 19 | 1 | ||
| 9 | DD4E81100000 | SHIFT PEDAL ASSY | ₹ 495 | 1 | ||
| 10 | 20PWE8110000 | PEDAL SHIFT ASSY | ₹ 216 | 1 | ||
| 11 | 20PE81130100 | COVER, SHIFT PEDAL | ₹ 18 | 1 | ||
| 12 | DD4E81150000 | ROD, SHIFT | ₹ 70 | 1 | ||
| 13 | 929070620000 | WASHER | ₹ 5 | 2 | ||
| 14 | 902521880000 | PIN SPLIT | ₹ 1 | 2 | ||
| 15 | BCWE81120000 | ARM SHIFT | ₹ 177 | 1 | ||
| 16 | 970120602000 | BOLT | ₹ 10 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This assembly includes the external components of the gear shifting system. It features the Shift Shaft Assy, the Shift Pedal, and the connecting rod. For smooth operation, it includes return springs, oil seals, and the stopper lever assy. These parts are designed to provide a crisp, positive feel every time the rider changes gears, ensuring reliable transmission engagement.
